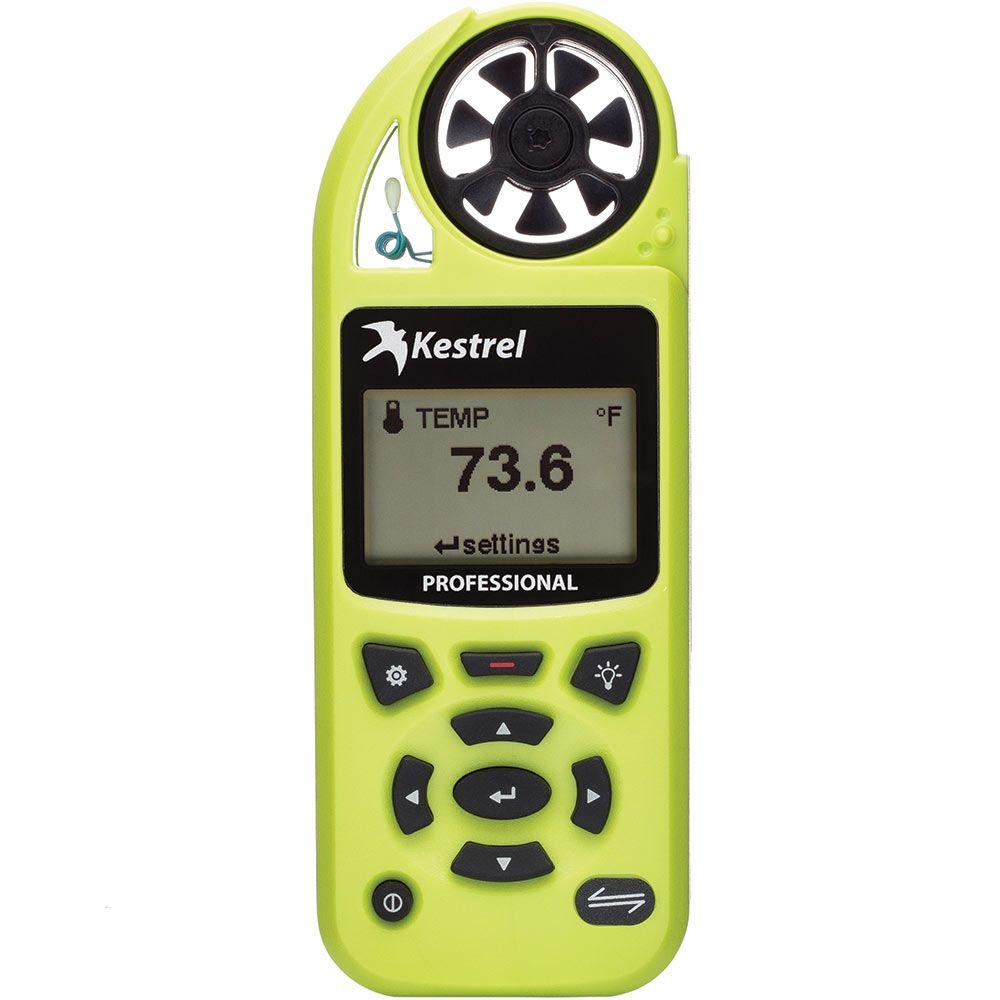

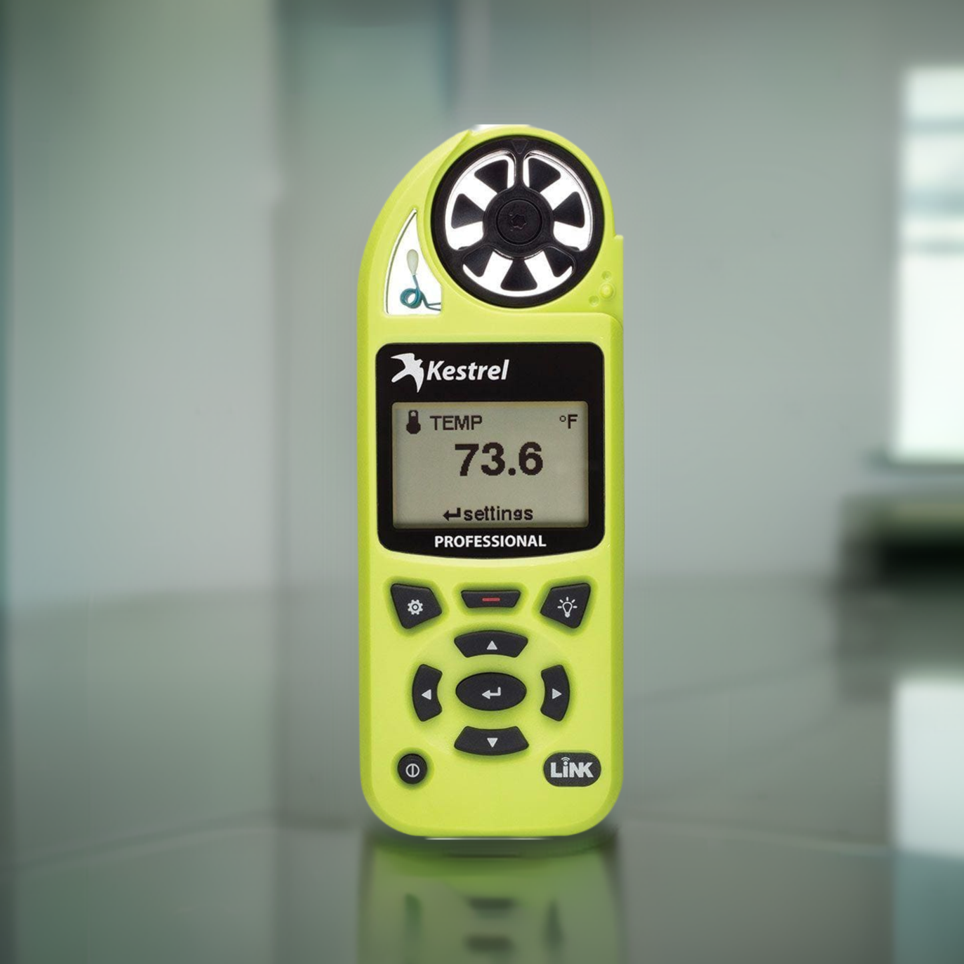

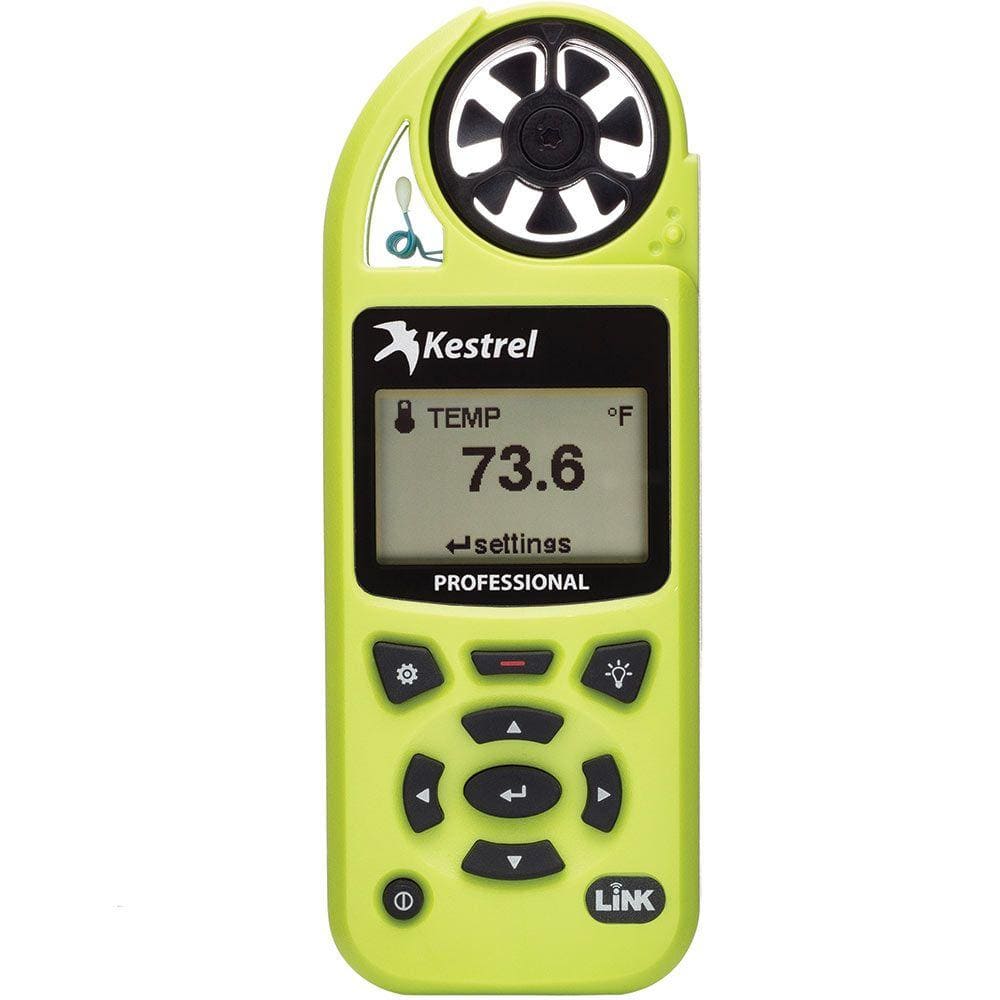

Kestrel 5200 Professional Environmental Meter

0852HVG

Regular price $315.00 USD Sale price $279.00 USD
/
4 in stock and ready to ship

Whether you're pouring concrete, balancing HVAC systems, or monitoring job site conditions, the Kestrel 5200 takes the calculations and guesswork out of your job with integrated specialty calculations.

The Kestrel 5200 offers advanced calculators and readings that are unique in the portable meter market and are designed to make your job easier. In addition to measuring current environmental conditions, the Kestrel 5200 tracks and logs over 10,000 sets of time-stamped data. Your data log can be transferred to a mobile device wirelessly with the LiNK wireless communication option and Kestrel LiNK app, or to a PC/MAC with either the accessory Kestrel LiNK Dongle or waterproof USB Data Transfer Cable (available separately).

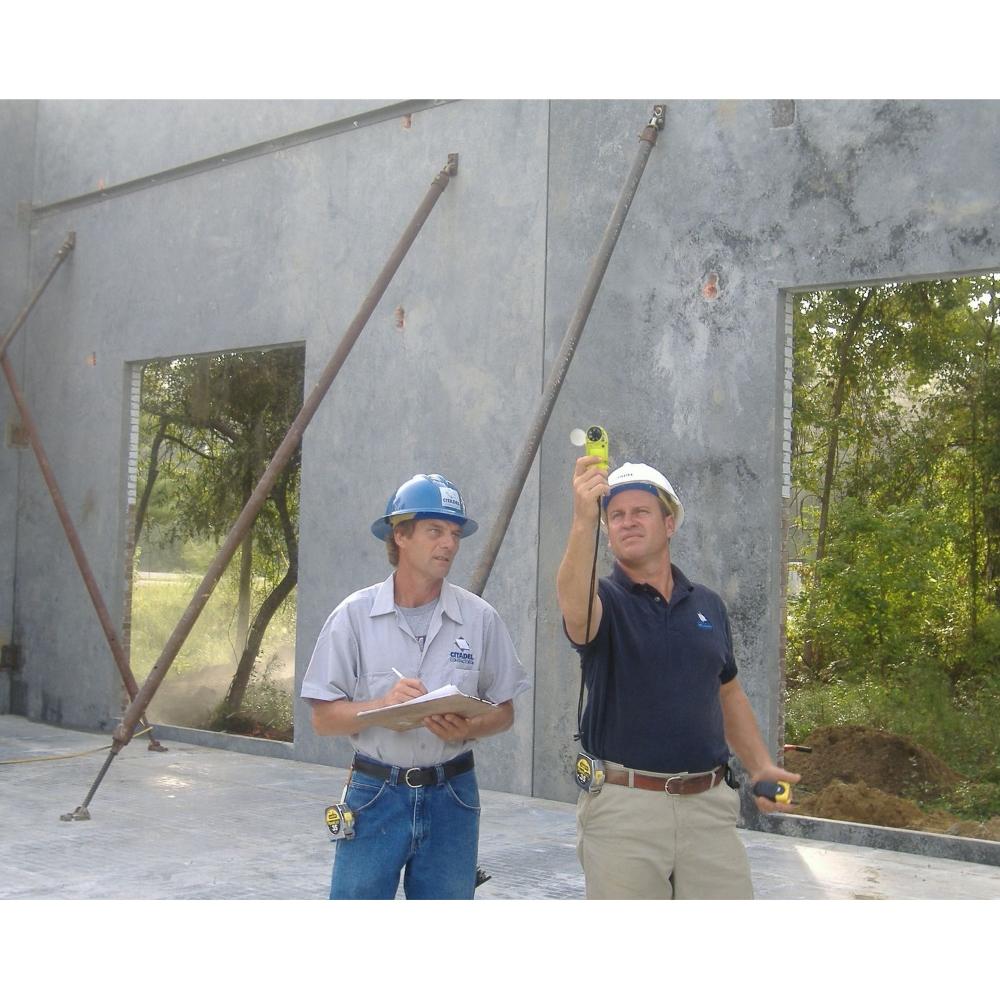

Construction

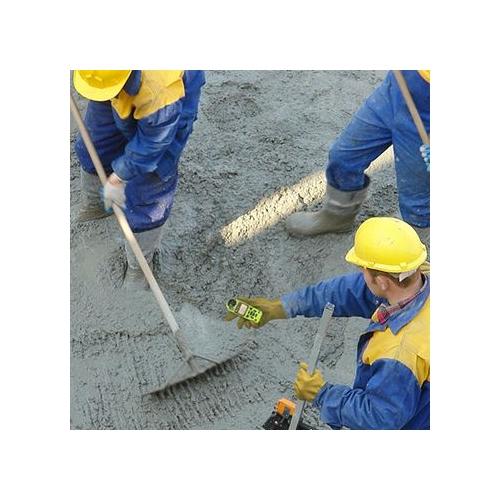

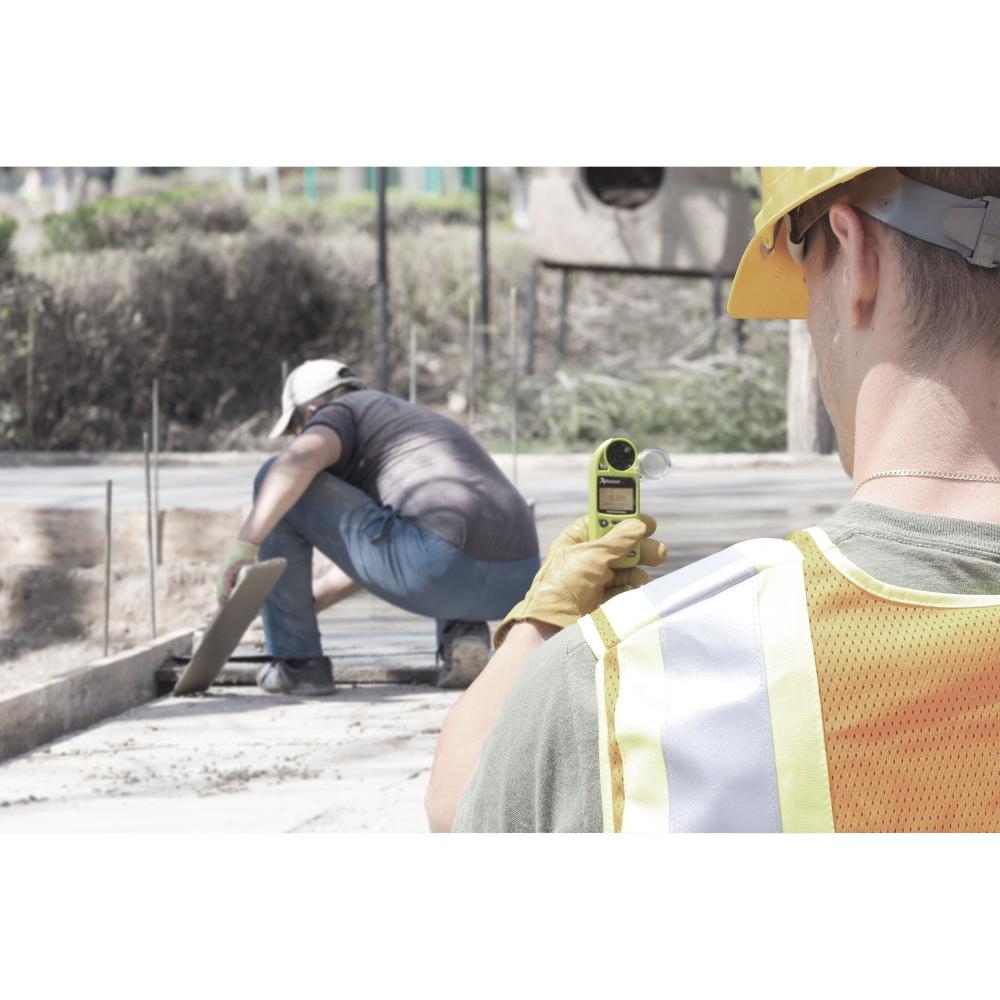

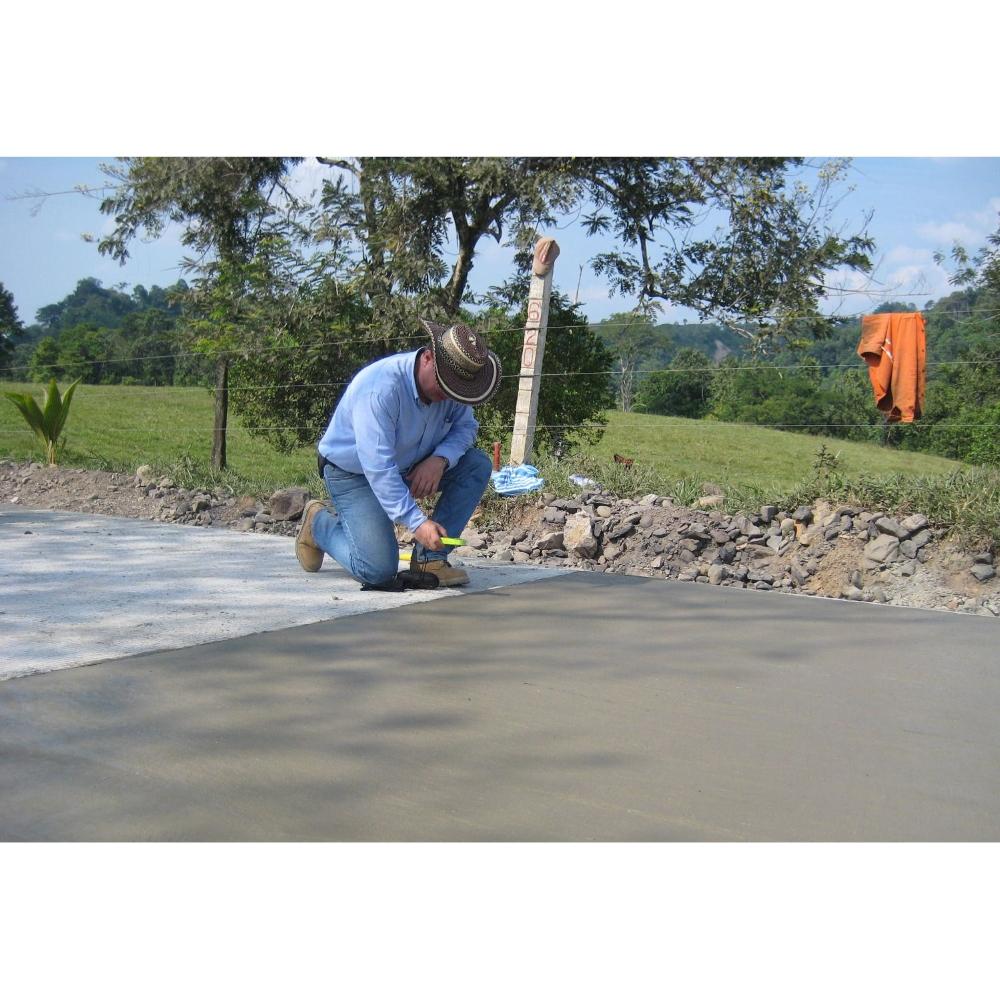

ConstructionThe Kestrel 5200 has the American Concrete Institute Evaporation Rate nomograph built in, and displays the Evaporation Rate right on screen with no calculation or error-prone interpolation. With that information in hand, decisions about additives to the mix or curing adjustments can be made, prevent costly plastic shrinkage cracks of the slab. Plus, the Kestrel 5200 allows you to monitor wind-loading on booms and cranes, and even track the heat index on your work site to keep your workers safe.

HVAC

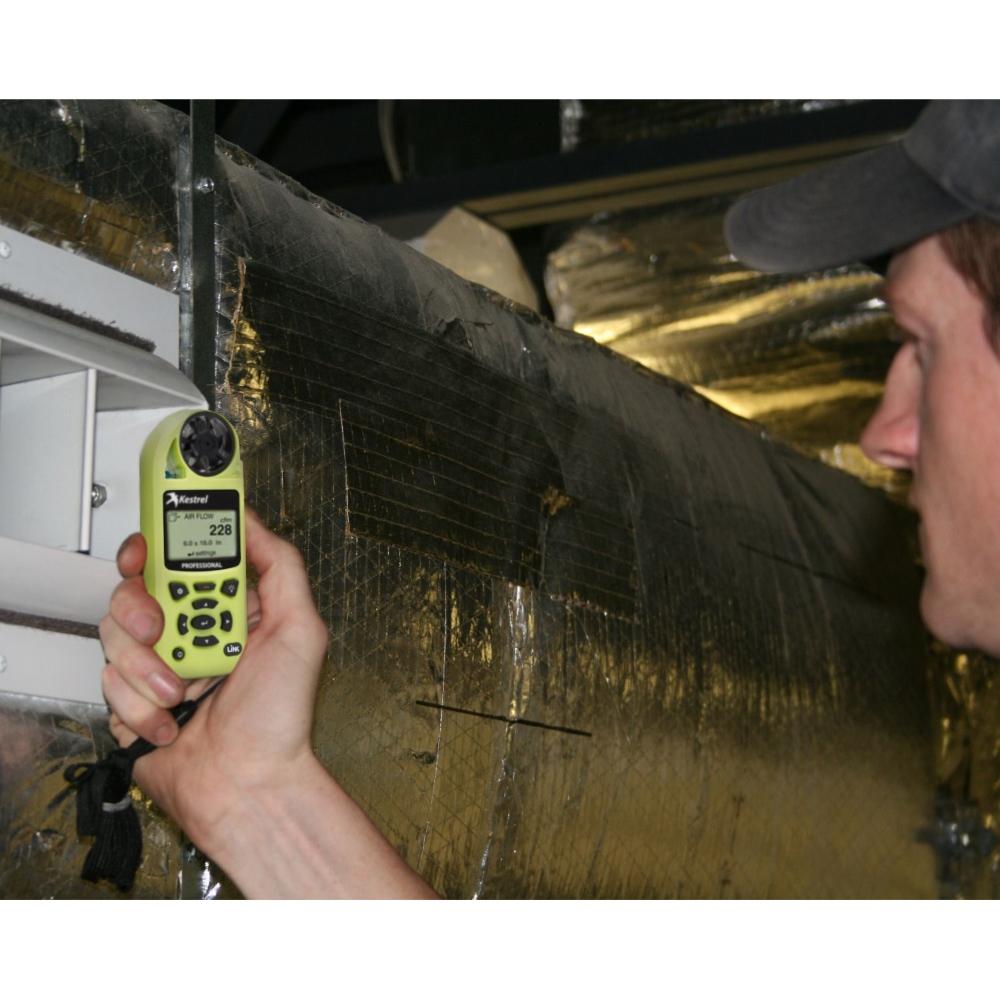

HVACVolume air flow couldn’t get any easier than this. Simply input the duct shape and dimensions and traverse the Kestrel 5200 across the duct. You’ll get instantaneous and average volume air flow without the need for any geometry or calculations. readings that greatly assist in commissioning and performance balancing HVAC systems. While not a replacement for a balometer, the Kestrel 5200 is far less expensive and can save you time and money. The Kestrel 5200 also offers every commonly-used measurement of moisture content in air, making life easy to determine dehumidification needs.

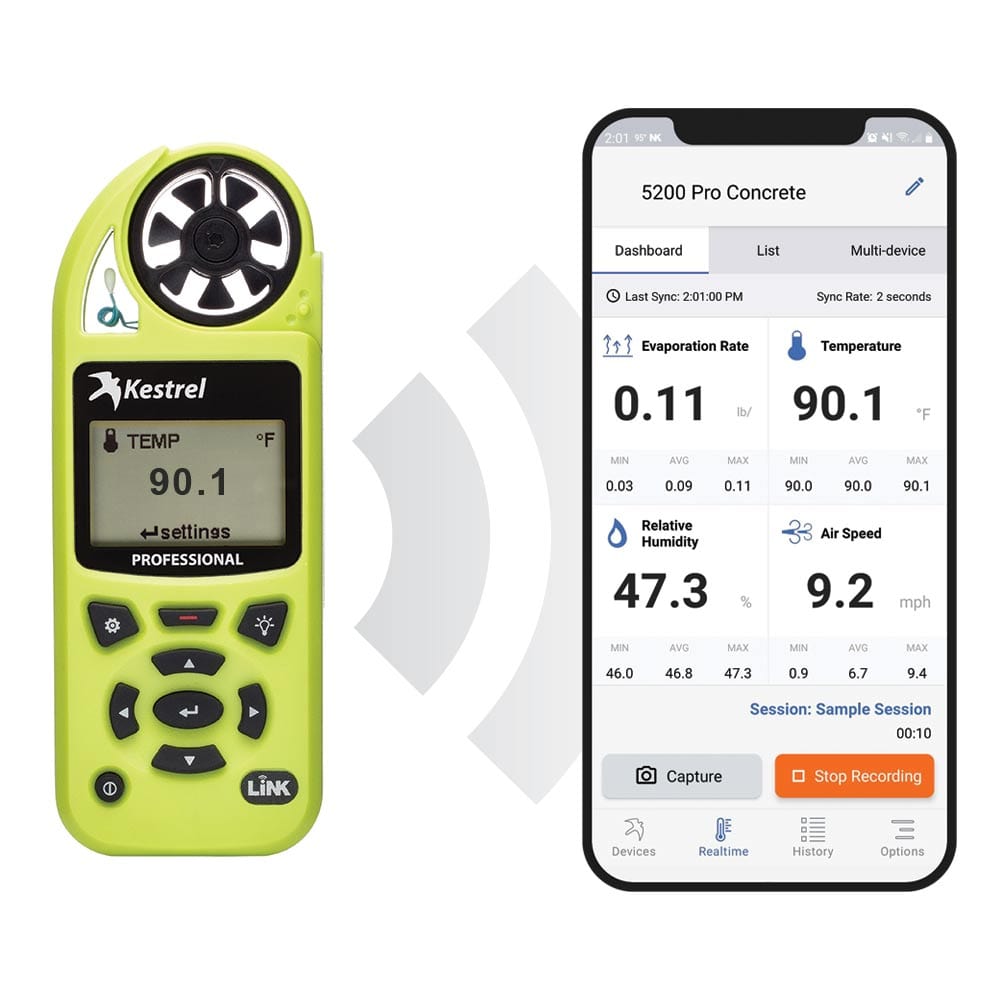

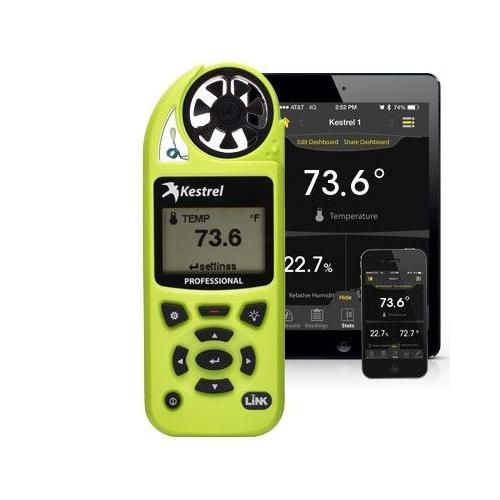

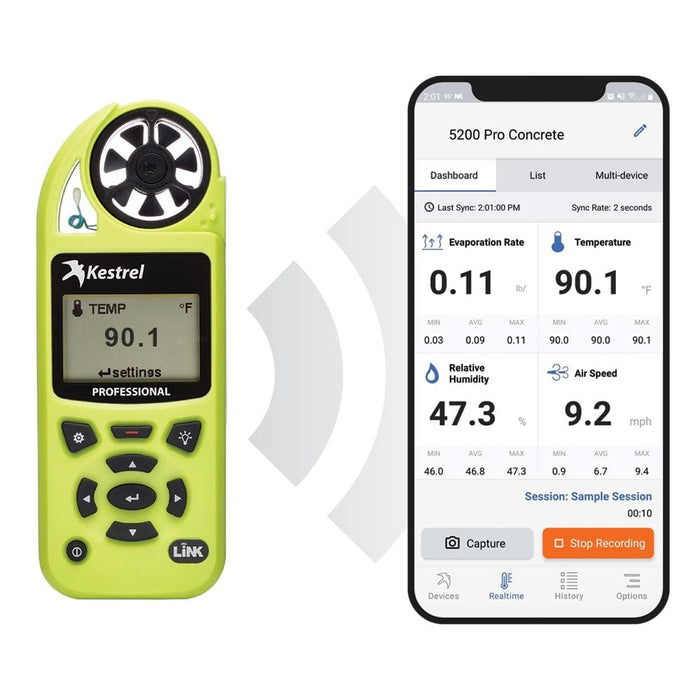

The 5200 with LiNK Bluetooth Connectivity, gives you the option to transfer data wirelessly to an iOS (iPhone, iPad) device or Android smartphone or tablet when within range using the appropriate app (See Below). Also with the 5200 with LiNK Meter, you can transfer data wirelessly to a Windows or Mac computer using the optional Kestrel Bluetooth USB Dongle.

  • Automatically calculates evaporation rate based on current weather conditions, and measures air velocity, air flow, air density, relative air density, delta T, and much more. 17 measurements in all!
  • New concrete Evaporation Rate Solver calculates the evaporation rate for different sets of environmental conditions and displays the risk for plastic shrinkage cracking (Low/Medium/High) allowing contractors to take steps to prevent cracking
  • Large, hi-res, hi-contrast, graphic display is perfectly readable in the brightest sunlight and is backlit for use in low-light conditions
  • Handheld, portable, data logger with on-screen graphing and measurement statistics
  • Optional LiNK connectivity powered by Bluetooth® low energy provides wireless communication to mobile devices and computers

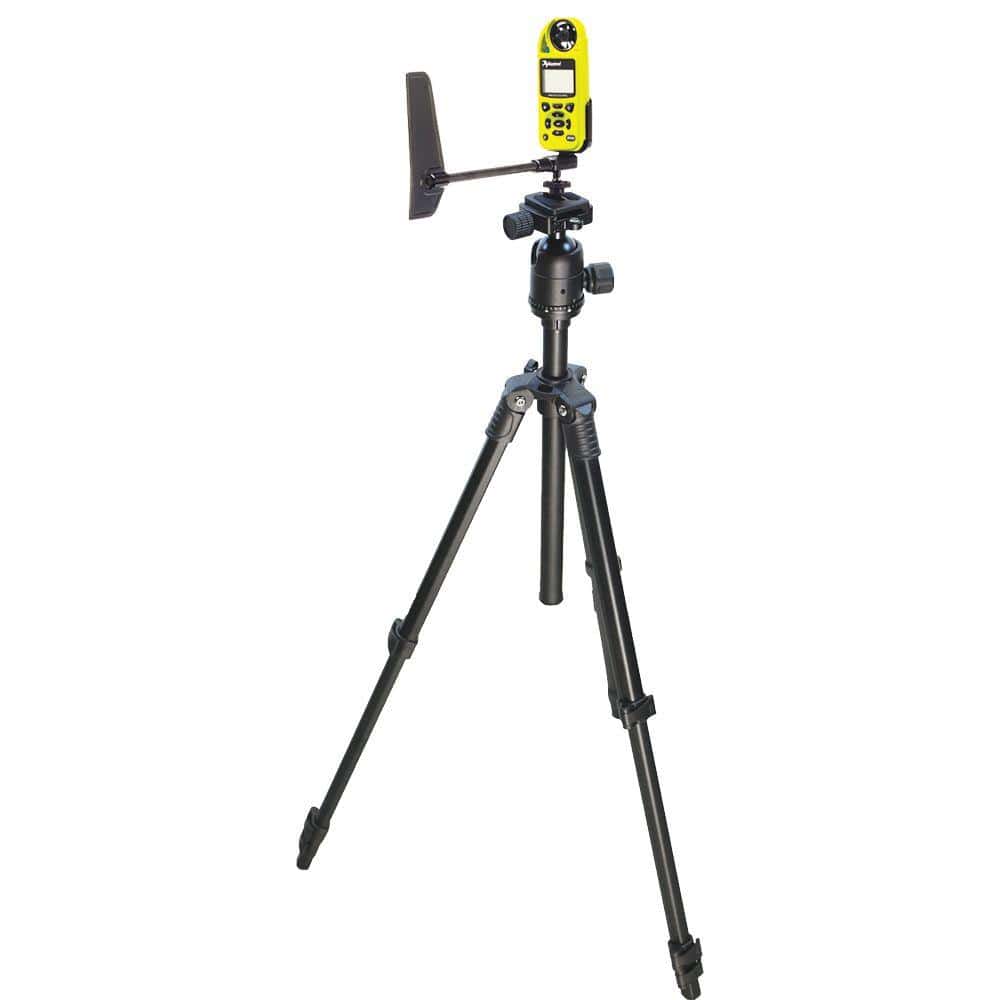

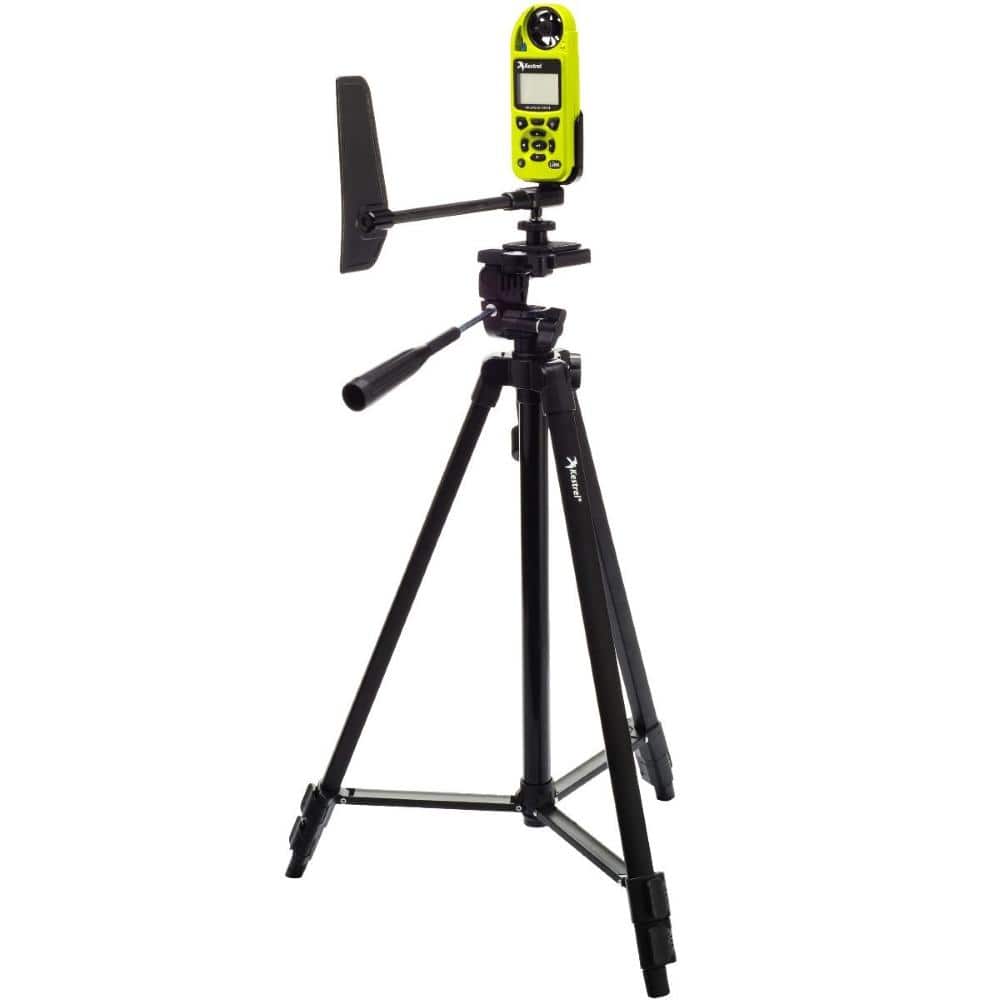

Check out our Concrete Pro Jobsite Weather Kit. Includes a Small Tripod, Extension, Vane Mount and Hard Case.

Environmental Measures:

    Features:

    • Lightweight, portable and simple set-up - can be used wherever readings are needed at the jobsite
    • Automatic Evaporation Rate Calculation based on ACI nomograph – no more charts or inaccurate guesswork
    • Comprehensive data-logging and extensive storage capabilities – document all job conditions to demonstrate compliance with protocol and protect against litigation
    • LiNK Wireless Bluetooth® Technology – view current and logged data and share job reports with the free Kestrel LiNK app on your mobile device
    • LiNK App Alerts – receive customizable alerts on a mobile device when changing weather conditions could pose a problem
    • Backlight - Switchable White/Red
    • Data Log Graph View
    • Drop-Tested to MIL-STD-810G

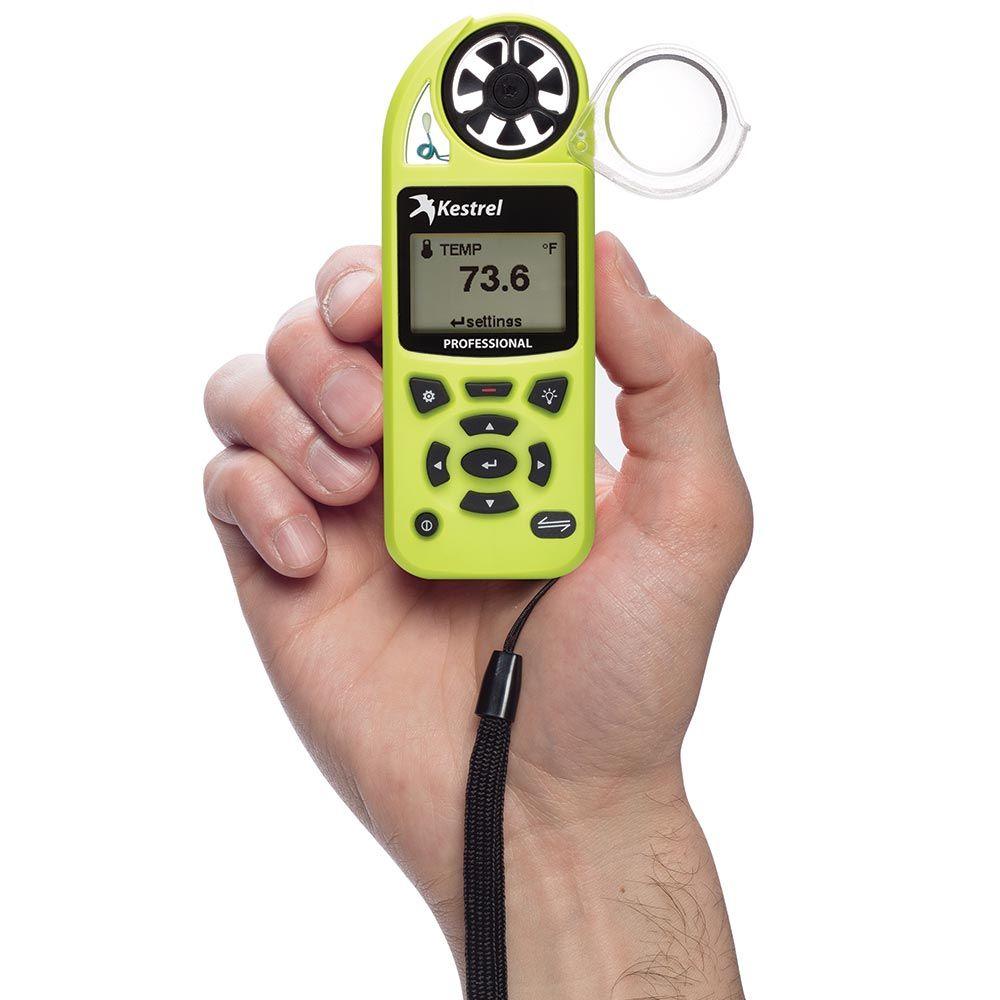

    • Integrated Flip Open Impeller Cover
    • LiNK Wireless Communication to Mobile Devices (Bluetooth low energy)*
    • Pressure Sensor
    • Temperature Sensor (Patented External Isolated)
    • Battery Life Indicator
    • Date & Time
    • Floats
    • Intuitive Tactile Up/Down/Enter Keypad
    • Minimum/Maximum/Average Reading
    • Relative Humidity Sensor
    • Waterproof to IP67 (3'/1M for 30 minutes)

    Physical Dimensions

    • Dimensions: 5.0 x 1.8 x 1.1 in. / 12.7 x 4.5 x 2.8 cm
    • Weight: 3.6 Ounces / 102 Grams
    • Kestrel 5200 Manual (PDF)
    • MFG Part# 0852HVG, Model# 5200

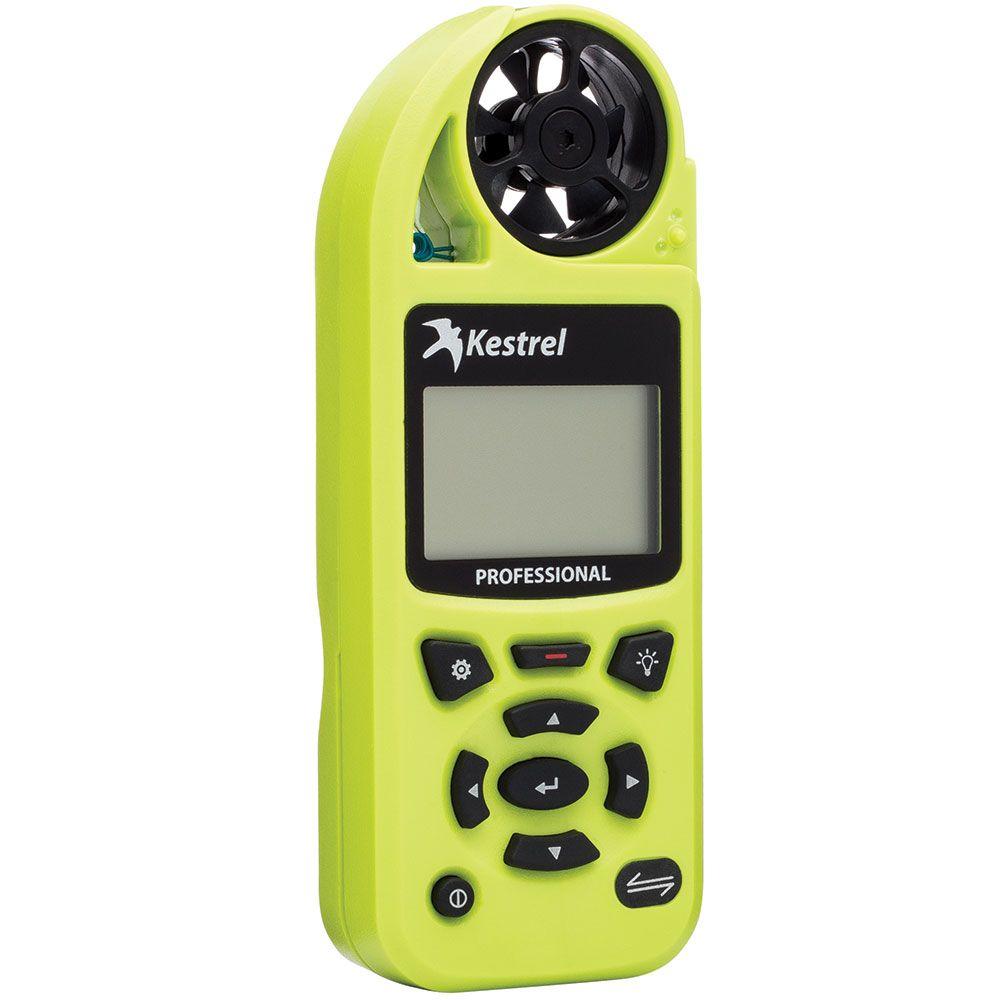

    • MFG Part# 0852LHVG, Model# 5200 with LiNK

    Who's using the Kestrel 5200?

    • Construction and Concrete Pouring
    • Facilities Management
    • HVAC & Air Conditioning Balancing
    • Remediation

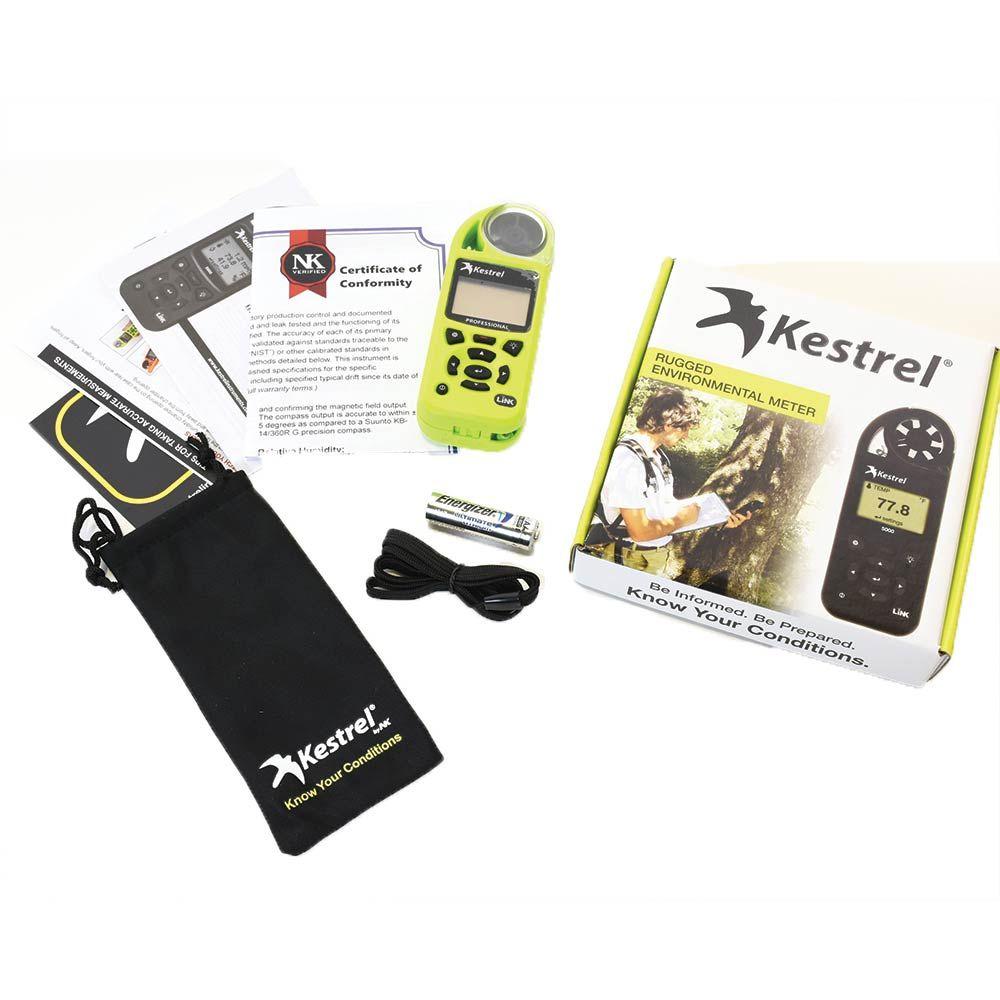

    • Meter
    • Neck Lanyard
    • AA Lithium Battery (Average Life 400 Hours)
    • Protective Drawstring Pouch
    • Certificate of Conformity (with complete specifications)
    • Instruction Manual
    • 5-Year Warranty
    • Kestrel 5200 Professional Meter

      Sensor Specifications

       Wind Speed

      Units of Measure: mph | kt | B | m/s | ft/min / km/h
      Specification Range:
      • 0.6 to 40.0 m/s
      • 118 to 7,874 ft/min
      • 2.2 to 144.0 km/h
      • 1.3 to 89.5 mph
      • 1.2 to 77.8 knots
      • 0 to 12 B*
      • 2-131.2 F/S*
      Operational Range:
      • 0.6 to 60.0 m/s
      • 118 to 11,811 ft/min
      • 2.2 to 216.0 km/h
      • 1.3 to 134.2 mph
      • 1.2 to 116.6 knots
      • 0 to 12 B*
      • 2-196.9 F/S*
      Resolution:
      • 0.1 m/s
      • 1 ft/min
      • 0.1 km/h
      • 0.1 mph
      • 0.1 knots
      • 1 B
      Accuracy (+/-): Larger of 3% of reading, least significant digit or 20 ft/min
      Notes: 1 inch|25 mm diameter impeller with precision axle and low-friction Zytel® bearings. Startup speed stated as lower limit, readings may be taken down to 0.4 m/s | 79 ft/min | 1.5 km/h | .9 mph | .8 kt after impeller startup. Off-axis accuracy -1% @ 5º off-axis; -2% @ 10º; -3% @ 15º. Calibration drift < 1% after 100 hours use at 16 MPH | 7 m/s. Replacement impeller (PN-0801) field installs without tools (US Patent 5,783,753). Wind speed calibration and testing should be done with triangle on impeller located at the top front face of the Kestrel. *F/S only in Ballistics units. Beaufort not available in Ballistics units.

      Ambient Temperature

      Units of Measure: Fahrenheit, Celsius
      Specification Range:
      • -20.0 to 158.0 °F
      • -29.0 to 70.0 °C
      Operational Range:
      • 14.0.0 to 131.0 °F
      • -10.0 to 55.0 °C
      Resolution:
      • 0.1 °F
      • 0.1 °C
      Accuracy (+/-):
      • 0.9 °F
      • 0.5 °C
      Notes: Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. For greatest accuracy, avoid direct sunlight on the temperature sensor and prolonged sunlight exposure to the unit in low airflow conditions. Calibration drift is negligible for the life of the product. For further details, see Display & Battery Operational Temperature Limits.

      Pressure

      Units of Measure: inHg, hPA, mb
      Specification Range:
      • 25°C/ 77°F
      • 750-1100 hPa|mbar
      • 22.15-32.48 inHg
      • 10.88-15.95 PS
      Operational Range:
      • 0.30 to 48.87 inHg
      • 10.0 to 1654.7 hPa|mbar
      • 0.14 to 24.00 PSI
      • 14.0 to 131.0 °F -10.0 to 55.0 °C
      Resolution:
      • 0.1 hPa|mbar
      • 0.01 inHg
      • 0.01 PSI
      Accuracy (+/-):
      • 1.5 hPa|mbar
      • 0.044 inHg
      • 0.022 PSI
      Notes: Monolithic silicon piezo-resistive pressure sensor with second-order temperature correction. Between 1100–1600 mbar, unit will operate with reduced accuracy. Sensor may not operate above 1600 mbar and can be damaged above 6,000 mbar or below 10 mbar. Calibration drift is negligible for the life of the product.

      Relative Humidity

      Units of Measure: %
      Specification Range: 5 to 95% 25°C non-condensing
      Operational Range: 0 to 100%
      Resolution: 0.1 %RH
      Accuracy (+/-): 3%RH
      Notes: To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift is typically less than ±0.25% per year.

      Calculated Measurements

       Altitude



      Accuracy (+/-):
      • typical: 23.6 ft/7.2 m
      • - 50 to 1100 mBar
      • max: 48.2 ft/14.7 m
      • – 300 to 750 mBar
      Resolution:
      • 1ft
      • 1m
      Sensors employed:
      • Pressure
      • User Input (Reference Pressure)

      Dew Point

      Accuracy (+/-):
      • 3.4 °F
      • 1.9 °C
      • 15-95% RH. Refer to Range for Temperature Sensor
      Resolution:
      • 0.1 °F
      • 0.1 °C
      Sensors employed:
      • Temperature
      • Relative Humidity

      Wet Bulb Temperature - Psychrometric

      Accuracy (+/-):
      • 3.2 °F
      • 1.8 °C
      Resolution:
      • 0.1 °F
      • 0.1 °C
      Sensors employed:
      • Temperature
      • Relative Humidity
      • Pressure

      Wind Chill

      Accuracy:
      • 1.6 °F
      • 0.9 °C
      Resolution:
      • 0.1 °F
      • 0.1 °C
      Sensors employed:
      • Wind Speed
      • Temperature

      Density Altitude

      Accuracy:
      • 226 ft
      • 69 m
      Resolution:
      • 1ft
      • 1m
      Sensors employed:
      • Temperature
      • Relative Humidity
      • Pressure
      Sensors employed:
      • Temperature Relative
      • Humidity
      • Pressure

      Heat Index

      Accuracy:
      • 7.1°F
      • 4.0°C
      Resolution:
      • 0.1 °F
      • 0.1 °C
      Sensors employed:
      • Temperature
      • Relative Humidity

      Air Density

      Accuracy:
      • 0.0002 lb/ft3
      • 0.0033 kg/m3
      Resolution:
      • 0.001 lbs/ft3
      • 0.001 kg/m3
      Sensors employed:
      • Temperature
      • Relative Humidity
      • Pressure

      Relative Air Density

      Accuracy:
      • 0.3%
      Resolution:
      • 0.1%
      Sensors employed:
      • Temperature Relative
      • Humidity
      • Pressure

      Volume Air Flow

      Accuracy:
      • 6.71%
      Resolution:
      • 1 cfm
      • 1 m3/hr
      • 1 m3/m
      • 0.1m3/s
      • 1 L/s
      Sensors employed:
      • Air Flow
      • User Input (Duct Shape & Size)

      Delta T

      Accuracy:
      • 3.2 °F
      • 1.8 °C
      Resolution:
      • 0.1 °F
      • 0.1 °C
      Sensors employed:
      • Temperature
      • Relative Humidity
      • Pressure

      Evaporation Rate

      Accuracy:
      • 0.01 lb/ft2/hr
      • 0.06 kg/m2/hr
      Resolution:
      • 0.01 b/ft2/hr
      • 0.01 kg/m2/hr
      Sensors employed:
      • Wind Speed
      • Temperature
      • Relative Humidity
      • Pressure
      • User Input (Concrete Temperature)

      Downloads:

      Sales Tax:

      We are only required to collect sales tax on orders shipping to Pennsylvania.

      When will my order ship?

      • Monday-Friday: USPS shipments typically ship the same day as ordered if order is placed by 11:30 AM ET. UPS shipments typically ship the same day as ordered if order is placed by 5:00 PM ET.
      • Saturday: USPS orders need to be placed by noon ET for Saturday shipping. UPS Ground shipments will ship Monday. Next Day Air and Second Day Air typically ship Saturday if order is placed by 1:00PM ET. Orders that do not ship Saturday will ship Monday.

      If you have a time critical shipment and you need to verify how soon we can ship an item, use our contact form to let us know your needs and we will get right back to you.

      Free Shipping

      • Free 1-4 business days ETA shipping (offer valid within the USA) on all orders.

      Free Expedited (2 Day Shipping)

      • Free 2 business business days ETA Expedited shipping on all orders with a value of $250.00 or greater (offer valid within the continental USA). We typically use UPS for this option so if you have a PO box, USPS times can vary. Shipping times during covid are not guaranteed.

      Other Shipping Services

      • We offer discounted expedited shipping such as Next Day Air, 2nd Day Air and more. All shipping services and rates are displayed in your cart. To get a shipping rate and time in transit, just add a product to the cart.

      Global (worldwide) Shipping

      • We ship worldwide with few exceptions. You can view our discounted shipping rates and services on the product page or in the cart.
      • All International shipments are insured.

      Standard delivery estimated time in transit

        100% Satisfaction Guaranteed

        We stand behind every product we sell. If you are not satisfied with your purchase or have a problem with your item, just send us an email within 40 days of purchase and we will email you a prepaid return label. All you will need are your ExtremeMeters.com order number and we will email the return label within 24 hours to the email address used when placing the order.

        ExtremeMeters.com guarantee doesn’t cover ordinary wear and tear or damage caused by improper use or accidents.

        If your item has a manufacturing defect in its materials or workmanship (extremely rare), you can return it to us at any time. If sent within 45 days, we will replace or refund. If after 45 days and up to 5 years, it will become a warranty issue.

        Once the item(s) are returned to us, it usually takes 24 hours to process refunds.

        We do not ship on the following holidays observed in the USA.

        • New Year's Day
        • Memorial Day
        • Independence Day
        • Labor Day
        • Thanksgiving Day
        • Christmas Day

        Returns:

        FREE USA Returns: We accept returns up to 45 days of purchase. Returns must be in brand new, unused condition. We will send our US customers a pre-paid return label which you can print out and attach to your box. International Returns: International customers are responsible for return costs. Click here to submit a return request. You will need your ExtremeMeters.com order number and the email used when placing your order. Important: Please use capital letters when entering your order number. You must enter your information within 40 days from time of order.

        Return Request

        QUESTIONS & ANSWERS

        Ask a Question
        • What is the difference between Model 5000 and 5200

          The Kestrel 5200 will give you the same readings as the Kestrel 5000 but also includes Delta T, Volume Air Flow and Evaporation Rate.

        • What is the maximum air speed this unit can measure. I need to measure velocities >120mph

          While the specification range with guaranteed accuracy is 89.5 MPH, the 5200 will measure wind speeds up to 134 MPH. Anything above that may lead to damage to the impeller.
