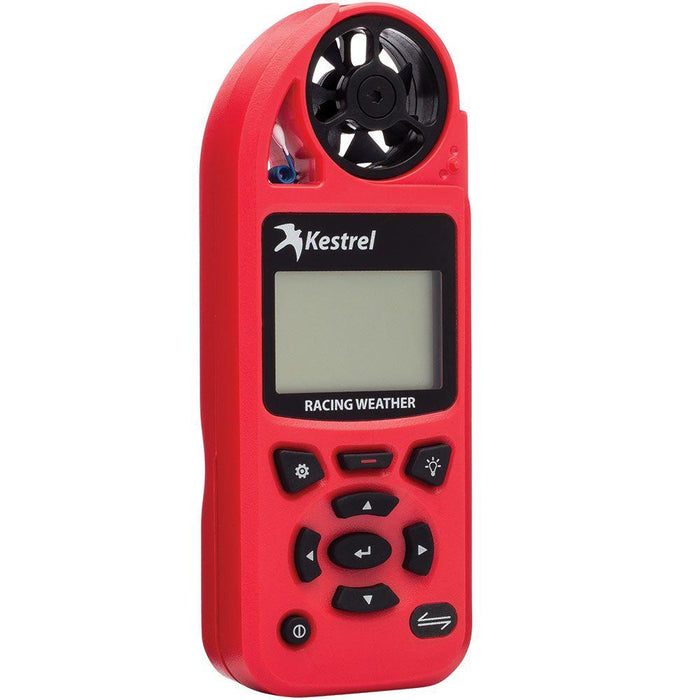

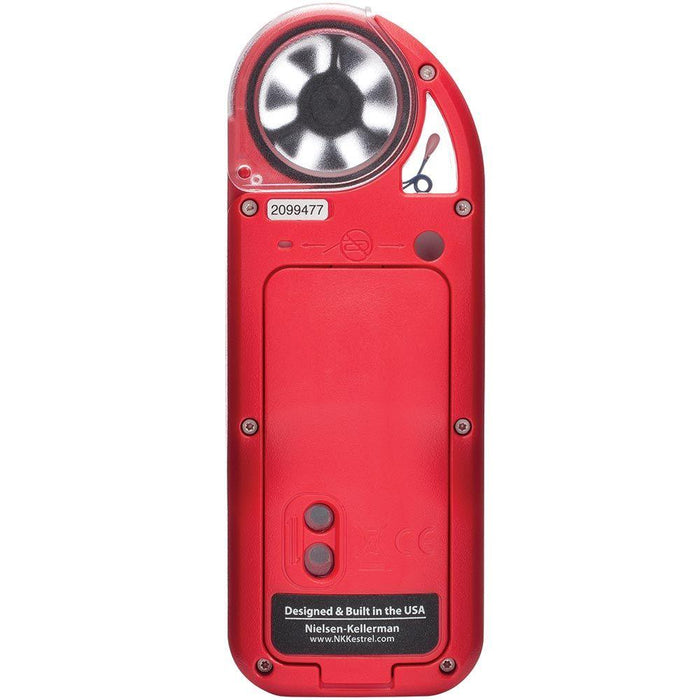

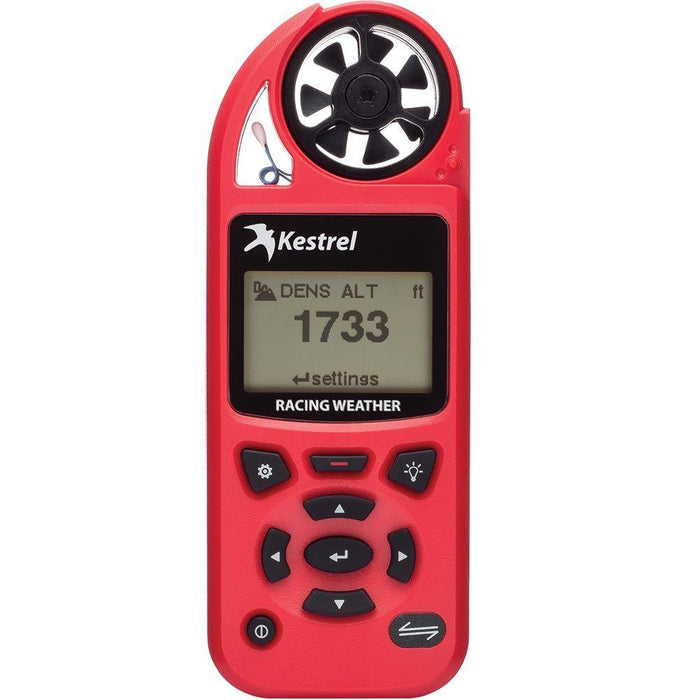

Kestrel 5100 Racing Weather Meter
SKU:
Make those last-minute dial-in or tuning decisions count.
From
$279.00 USD
Sales Tax?
According to various state Nexus laws currently in effect, at this time ExtremeMeters.com is only obligated to collect and report state sales tax on shipments made to Pennsylvania customers only.
Free 2 Day Delivery | Ships Worldwide | Ships within 24 hours
Features
Sensor Specifications:
Wind Speed |
|
| Units of Measure: | mph | kt | B | m/s | ft/min / km/h |
| Specification Range: |
|
| Operational Range: |
|
| Resolution: |
|
| Accuracy (+/-): | Larger of 3% of reading, least significant digit or 20 ft/min |
| Notes: | 1 inch|25 mm diameter impeller with precision axle and low-friction Zytel® bearings. Startup speed stated as lower limit, readings may be taken down to 0.4 m/s | 79 ft/min | 1.5 km/h | .9 mph | .8 kt after impeller startup. Off-axis accuracy -1% @ 5º off-axis; -2% @ 10º; -3% @ 15º. Calibration drift < 1% after 100 hours use at 16 MPH | 7 m/s. Replacement impeller (PN-0801) field installs without tools (US Patent 5,783,753). Wind speed calibration and testing should be done with triangle on impeller located at the top front face of the Kestrel. *F/S only in Ballistics units. Beaufort not available in Ballistics units. |
Ambient Temperature: |
|
| Units of Measure: | Fahrenheit, Celsius |
| Specification Range: |
|
| Operational Range: |
|
| Resolution: |
|
| Accuracy (+/-): |
|
| Notes: | Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. For greatest accuracy, avoid direct sunlight on the temperature sensor and prolonged sunlight exposure to the unit in low airflow conditions. Calibration drift is negligible for the life of the product. For further details, see Display & Battery Operational Temperature Limits. |
Pressure: |
|
| Units of Measure: | inHg, hPA, mb |
| Specification Range: |
|
| Operational Range: |
|
| Resolution: |
|
| Accuracy (+/-): |
|
| Notes: | Monolithic silicon piezo-resistive pressure sensor with second-order temperature correction. Between 1100–1600 mbar, unit will operate with reduced accuracy. Sensor may not operate above 1600 mbar and can be damaged above 6,000 mbar or below 10 mbar. Calibration drift is negligible for the life of the product. |
Relative Humidity: |
|
| Units of Measure: | % |
| Specification Range: | 5 to 95% 25°C non-condensing |
| Operational Range: | 0 to 100% |
| Resolution: | 0.1 %RH |
| Accuracy (+/-): | 3%RH |
| Notes: | To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift is typically less than ±0.25% per year. |
Calculated Measurements
Altitude: |
|
| Accuracy (+/-): |
|
| Resolution: |
|
| Sensors employed: |
|
Dew Point: |
|
| Accuracy (+/-): |
|
| Resolution: |
|
| Sensors employed: |
|
Wet Bulb Temperature - Psychrometric |
|
| Accuracy (+/-): |
|
| Resolution: |
|
| Sensors employed: |
|
Wind Chill: |
|
| Accuracy: |
|
| Resolution: |
|
| Sensors employed: |
|
Density Altitude: |
|
| Accuracy: |
|
| Resolution: |
|
| Sensors employed: |
|
Air Density: |
|
| Accuracy: |
|
| Resolution: |
|
| Sensors employed: |
|
Relative Air Density: |
|
| Accuracy: |
|
| Resolution: |
|
| Sensors employed: |
|
Moisture Content | Humidity Ratio (“Grains”) |
|
| Accuracy: |
|
| Resolution: |
|
| Sensors employed: |
|
Heat Index: |
|
| Accuracy: |
|
| Resolution: |
|
| Sensors employed: |
|
Downloads:
Make those last minute dial-in or tuning decisions count

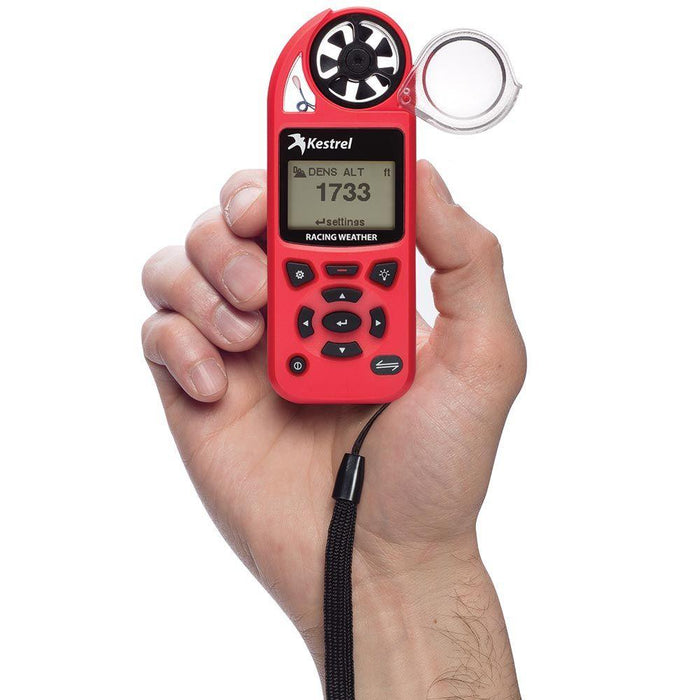

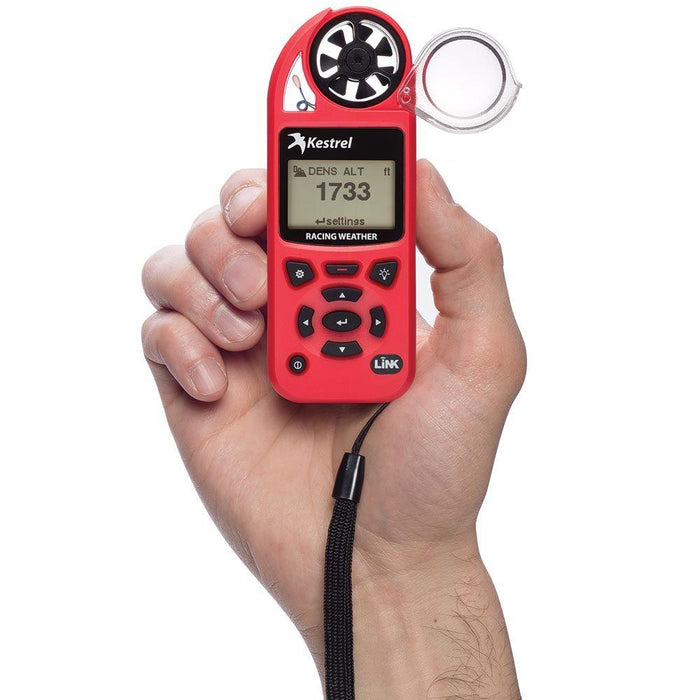

The compact, portable design makes this unit easy to take right to the track

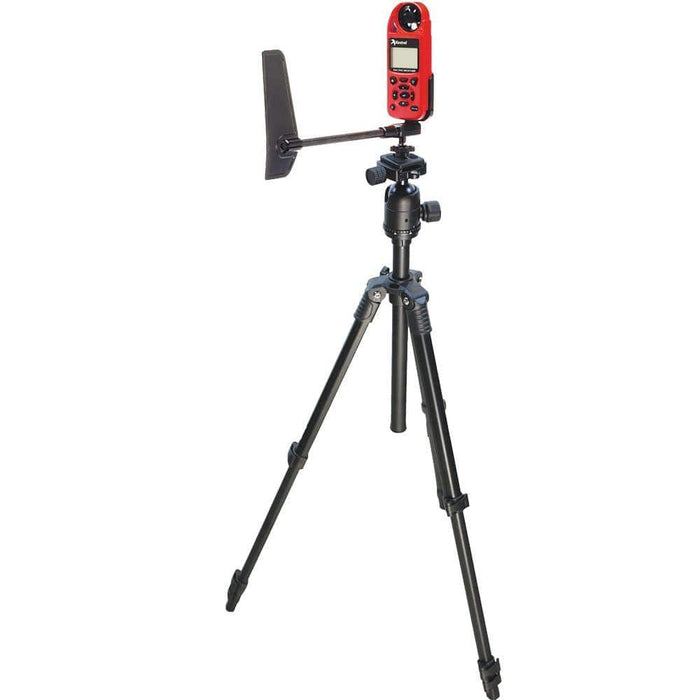

The Kestrel 5100 is just as accurate, reliable and user-friendly as the original Kestrel 4250. The Kestrel 5100 measures moisture content in grains, air density, relative air density, humidity and other critical factors. Count on it for the information you need to make perfect ET predictions and performance-maximizing tuning and jetting decisions. The compact, portable design makes this unit easy to take right to the track – exactly where you need to get the most accurate and race-relevant measurements. Pair it with the optional Kestrel Vane Mount for hands-free measurements logged over the course of the day. For maximum functionality, choose a Kestrel 5100 with LiNK to transmit live measurements to the Kestrel LiNK app on your iOS or Android device up to 100’ away (line of sight).
Affordable, accurate, portable and reliable, Kestrel meters have been proven at race tracks everywhere. Put the weather on your side – put a Kestrel in your toolbox.

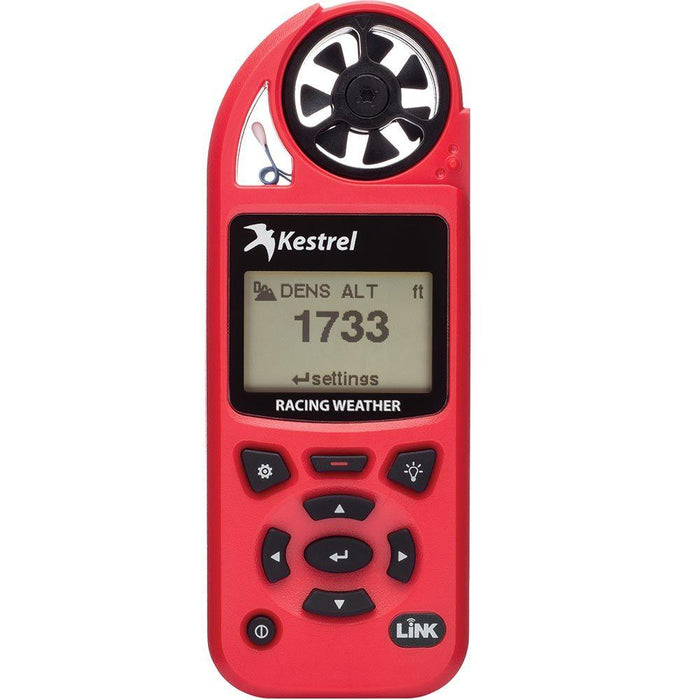

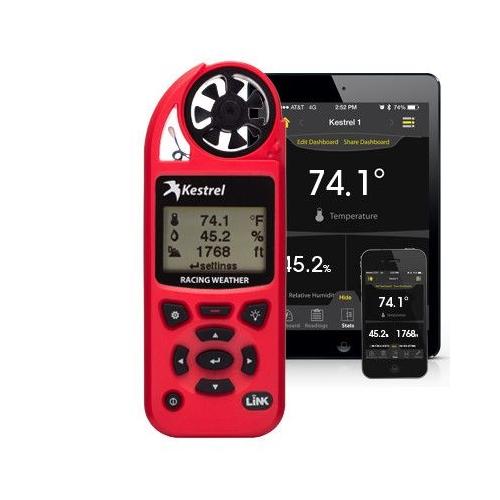

The 5100 with LiNK Bluetooth Connectivity, gives you the option to transfer data wirelessly to an iOS (iPhone, iPad) device or Android smartphone or tablet when within range using the appropriate app (See Below). Also with the 5100 with LiNK Meter, you can transfer data wirelessly to a Windows or Mac computer using the optional Kestrel Bluetooth USB Dongle.

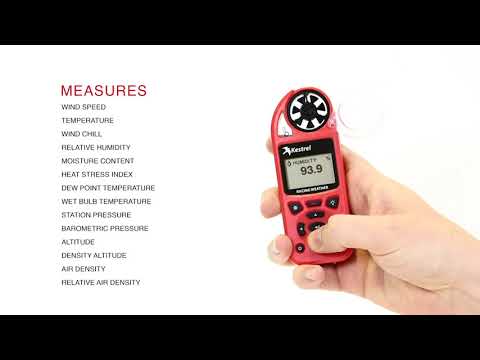

Environmental Measures:
- Current Wind Speed
- Maximum Wind Gust
- Average Wind Speed
- Temperature
- Altitude (Pressure Based)
- Barometric Pressure
- Dew Point Temperature
- Wet Bulb Temperature (Psychrometric)
- Pressure Trend
- Relative Humidity
- Wind Chill
- Density Altitude
- Air Density
- Relative Air Density
- Moisture Content (Grains)
- Heat Stress Index
- Station Pressure (Absolute Pressure)
Who's using the Kestrel 5100?
- Bracket Racers
- Drag Racers
- Pit Crews
- Professional Auto Racing Teams
Features:
- Measures moisture content (grains), air density, relative air density (RAD), relative humidity, temperature, barometric pressure, wind speed and much more. 14 measurements in all.
- Easy to read, high resolution screen (standard and NV backlit).
- Time & date
- Waterproof & floats
- Exterior temperature, humidity & pressure sensors for fast & accurate readings
- Humidity sensor can soon be calibrated in the field via cable or Dongle.
- Min, Max & Average values
- Automatically store measurements, when powered on or off
- Manually store measurements with the press of a button
- Customizable data storage - 10,000 data points
- Graph & recall trends
- Customize screens to display user-selected measurements
- Data charting
- Data upload to iOS & Android phones & tablets
- Data upload to Windows or Mac computers with optional USB Data Cable
- Data upload to Windows & Mac computers via wireless Bluetooth (LiNK Enabled Meters only with the optional Kestrel Dongle)
- Languages: English, French, Spanish, German & Italian
- User-replaceable impeller
- impeller cover allows use of other functions & protecting the impeller
- All instruments and accessories are completely assembled in the USA
Kestrel 5100 Specifications and Dimensions
- Dimensions: 5.0 x 1.8 x 1.1 in. / 12.7 x 4.5 x 2.8 cm
- Weight: 3.6 Ounces / 102 Grams
- Kestrel 5100 Manual (PDF)
- MFG Part# 0851RED, Model# 5100
- MFG Part# 0851LRED, Model 5100 with LiNK
