Kestrel 5200 Concrete Pro Jobsite Weather Kit
Features
Sensor Specifications
Wind Speed |
|
Units of Measure: | mph | kt | B | m/s | ft/min / km/h |
Specification Range: |
|
Operational Range: |
|
Resolution: |
|
Accuracy (+/-): | Larger of 3% of reading, least significant digit or 20 ft/min |
Notes: | 1 inch|25 mm diameter impeller with precision axle and low-friction Zytel® bearings. Startup speed stated as lower limit, readings may be taken down to 0.4 m/s | 79 ft/min | 1.5 km/h | .9 mph | .8 kt after impeller startup. Off-axis accuracy -1% @ 5º off-axis; -2% @ 10º; -3% @ 15º. Calibration drift < 1% after 100 hours use at 16 MPH | 7 m/s. Replacement impeller (PN-0801) field installs without tools (US Patent 5,783,753). Wind speed calibration and testing should be done with triangle on impeller located at the top front face of the Kestrel. *F/S only in Ballistics units. Beaufort not available in Ballistics units. |
Ambient Temperature |
|
Units of Measure: | Fahrenheit, Celsius |
Specification Range: |
|
Operational Range: |
|
Resolution: |
|
Accuracy (+/-): |
|
Notes: | Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. For greatest accuracy, avoid direct sunlight on the temperature sensor and prolonged sunlight exposure to the unit in low airflow conditions. Calibration drift is negligible for the life of the product. For further details, see Display & Battery Operational Temperature Limits. |
Pressure |
|
Units of Measure: | inHg, hPA, mb |
Specification Range: |
|
Operational Range: |
|
Resolution: |
|
Accuracy (+/-): |
|
Notes: | Monolithic silicon piezo-resistive pressure sensor with second-order temperature correction. Between 1100–1600 mbar, unit will operate with reduced accuracy. Sensor may not operate above 1600 mbar and can be damaged above 6,000 mbar or below 10 mbar. Calibration drift is negligible for the life of the product. |
Relative Humidity |
|
Units of Measure: | % |
Specification Range: | 5 to 95% 25°C non-condensing |
Operational Range: | 0 to 100% |
Resolution: | 0.1 %RH |
Accuracy (+/-): | 3%RH |
Notes: | To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift is typically less than ±0.25% per year. |
Calculated Measurements
Altitude |
|
Accuracy (+/-): |
|
Resolution: |
|
Sensors employed: |
|
Dew Point |
|
Accuracy (+/-): |
|
Resolution: |
|
Sensors employed: |
|
Wet Bulb Temperature - Psychrometric |
|
Accuracy (+/-): |
|
Resolution: |
|
Sensors employed: |
|
Wind Chill |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Density Altitude |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Sensors employed: |
|
Heat Index |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Air Density |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Relative Air Density |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Volume Air Flow |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Delta T |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Evaporation Rate |
|
Accuracy: |
|
Resolution: |
|
Sensors employed: |
|
Downloads:
Prevent costly plastic shrinkage cracking with this portable jobsite weather monitoring kit!

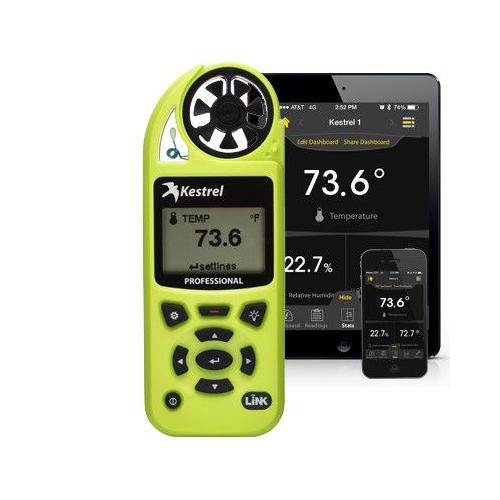

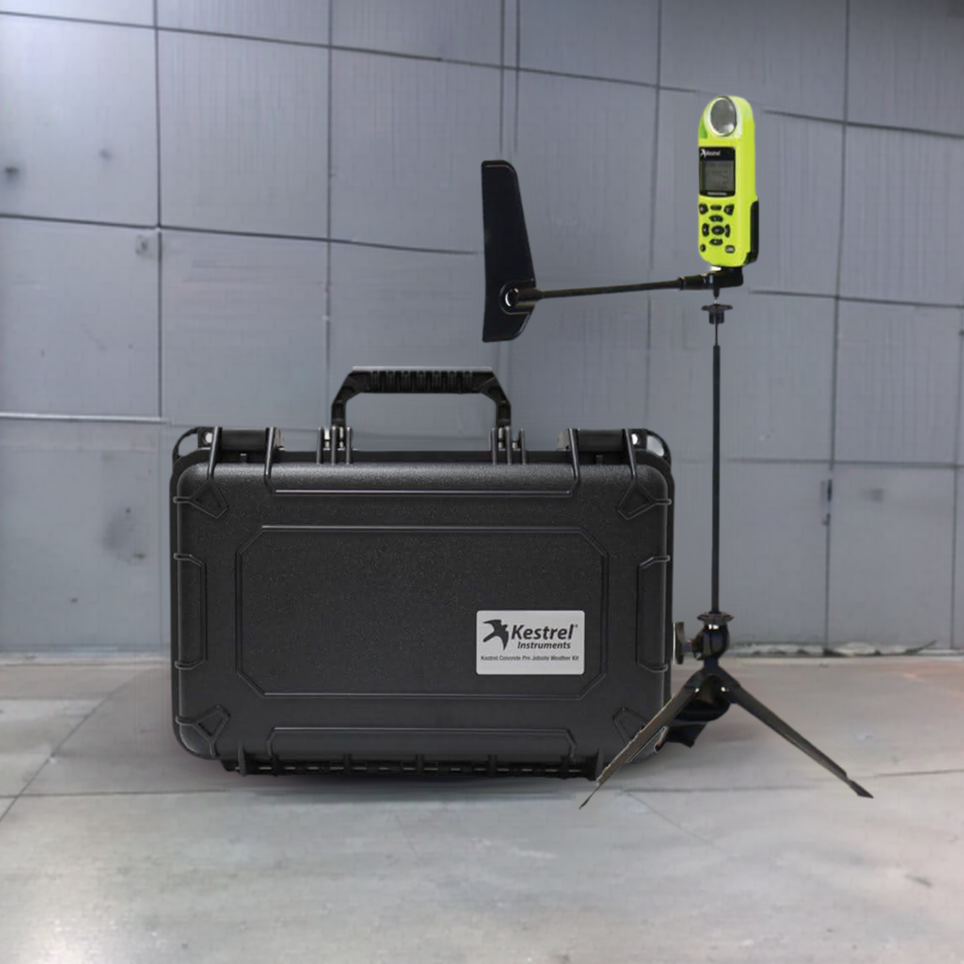

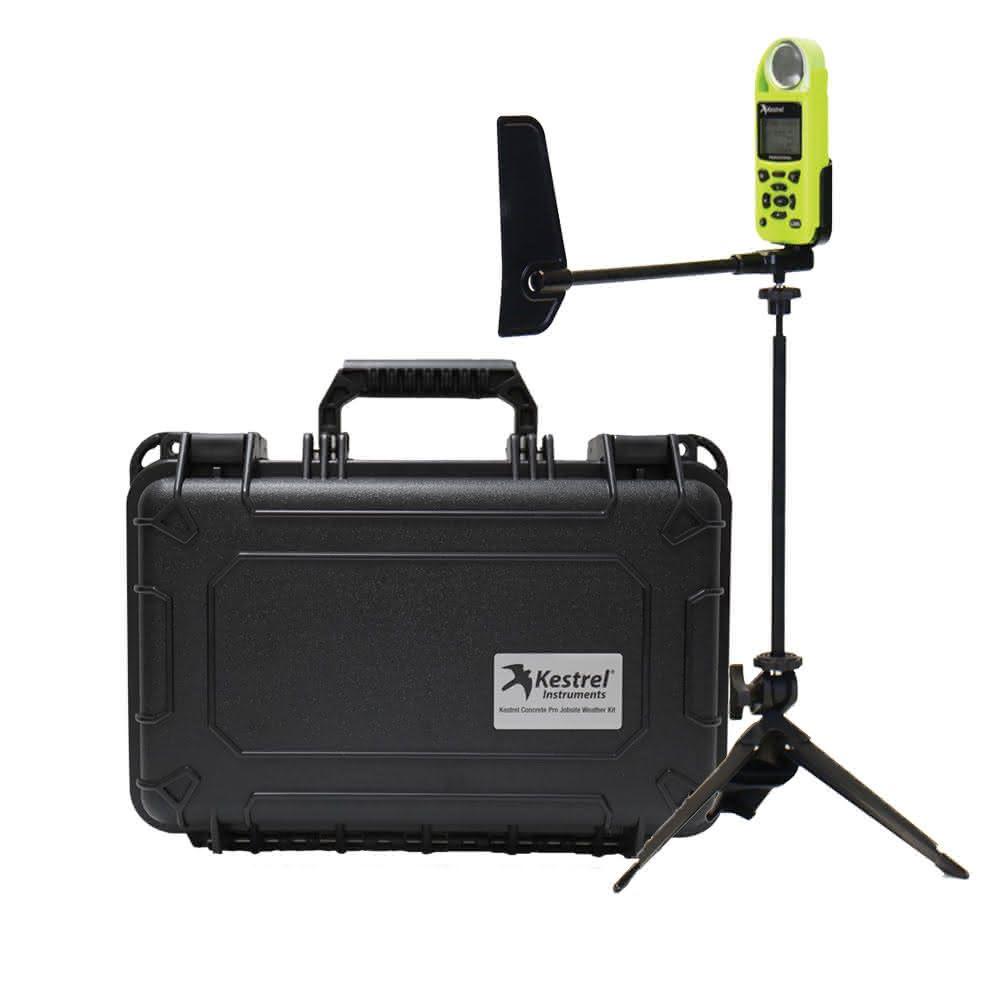

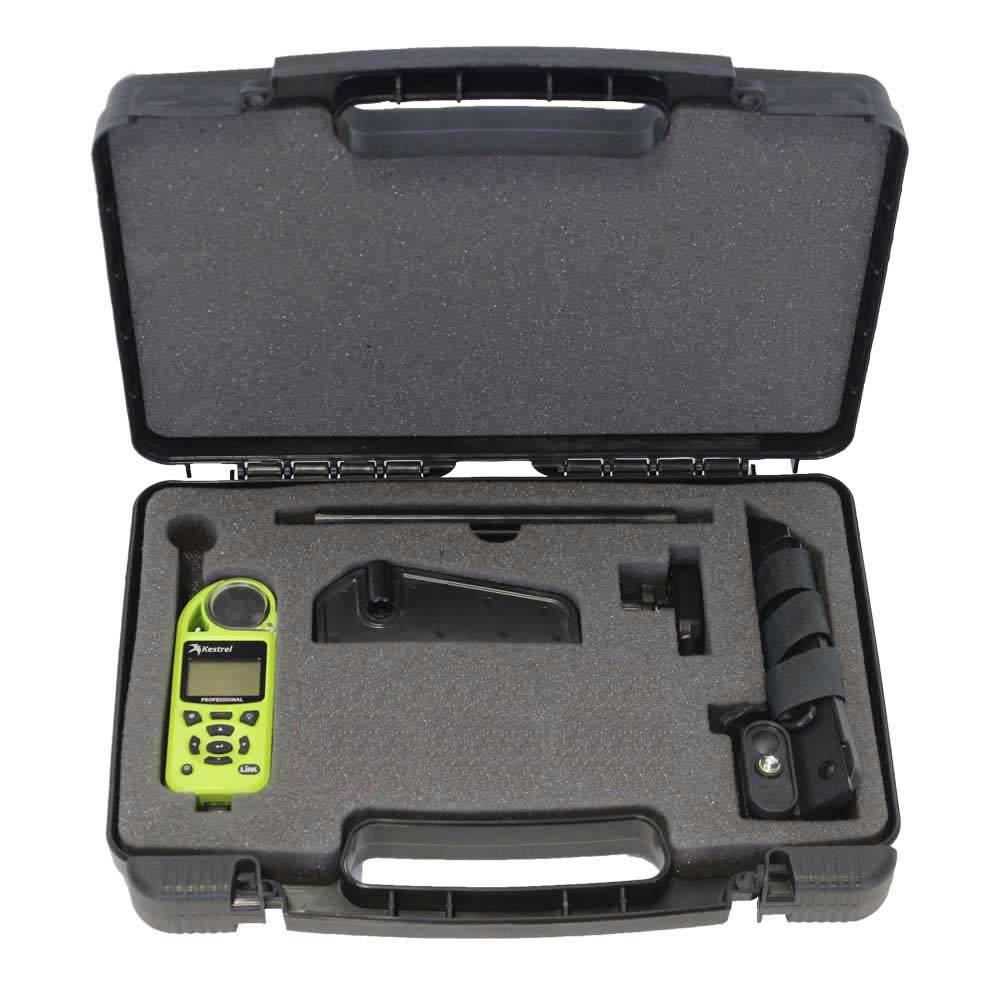

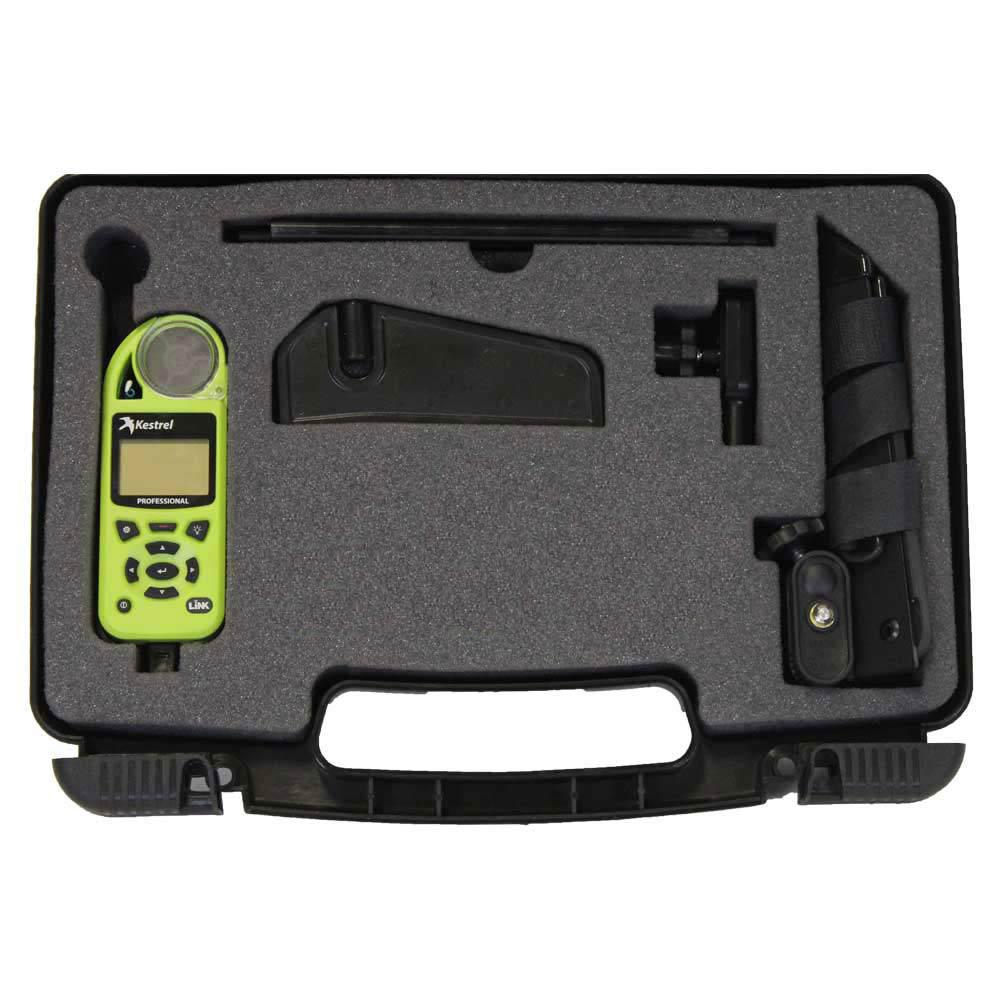

The Kestrel Concrete Pro Jobsite Weather Kit includes the Kestrel 5200 Professional Environmental Meter with LiNK, Rotating Vane Mount, and Portable Mini Tripod with Extension Rod.
The Kestrel 5200 offers advanced calculators and readings that are unique in the portable meter market and are designed to make your job easier. In addition to measuring current environmental conditions, the Kestrel 5200 tracks and logs over 10,000 sets of time-stamped data. Your data log can be transferred to a iOS/Android wirelessly with the LiNK wireless communication option and Kestrel LiNK app, or to a Windows or Mac computer.
- Automatically calculates evaporation rate based on current weather conditions, and measures air velocity, air flow, air density, relative air density, delta T, and much more. 17 measurements in all!
- New concrete Evaporation Rate Solver calculates the evaporation rate for different sets of environmental conditions and displays the risk for plastic shrinkage cracking (Low/Medium/High) allowing contractors to take steps to prevent cracking
- Large, hi-res, hi-contrast, graphic display is perfectly readable in the brightest sunlight and is backlit for use in low-light conditions
- Handheld, portable, data logger with on-screen graphing and measurement statistics
- Optional LiNK connectivity powered by Bluetooth® low energy provides wireless communication to mobile devices and computers
Environmental Measures:
- Current Wind Speed
- Maximum Wind Gust
- Average Wind Speed
- Temperature
-
Altitude (Pressure Based)
- Barometric Pressure
- Dew Point Temperature
- Wet Bulb Temperature (Psychrometric)
- Pressure Trend
- Relative Humidity
- Wind Chill
- Density Altitude
- Air Density
- Relative Air Density
- Heat Stress Index
- Station Pressure (Absolute Pressure)
- Volume Air Flow (CFM)
- Delta T
- Dew Point Temperature
- Evaporation Rate
- Humidity Ratio (Grains)
Features:
- Lightweight, portable and simple set-up - can be used wherever readings are needed at the jobsite
- Automatic Evaporation Rate Calculation based on ACI nomograph – no more charts or inaccurate guesswork
- Comprehensive data-logging and extensive storage capabilities – document all job conditions to demonstrate compliance with protocol and protect against litigation
- LiNK Wireless Bluetooth® Technology – view current and logged data and share job reports with the free Kestrel LiNK app on your mobile device
- LiNK App Alerts – receive customizable alerts on a mobile device when changing weather conditions could pose a problem
- Backlight - Switchable White/Red
- Data Log Graph View
- Drop-Tested to MIL-STD-810G
- Integrated Flip Open Impeller Cover
- LiNK Wireless Communication to Mobile Devices (Bluetooth low energy)*
- Pressure Sensor
- Temperature Sensor (Patented External Isolated)
- Battery Life Indicator
- Date & Time
- Floats
- Intuitive Tactile Up/Down/Enter Keypad
- Minimum/Maximum/Average Reading
- Relative Humidity Sensor
- Waterproof to IP67 (3'/1M for 30 minutes)
Physical Dimensions
- Meter Dimensions: 5.0 x 1.8 x 1.1 in. / 12.7 x 4.5 x 2.8 cm
- Meter Weight: 3.6 Ounces / 102 Grams
- Kestrel 5200 Certificate of Conformity (PDF)
- Kestrel 5200 Sensor Specifications (PDF)
- Kestrel 5200 Manual (PDF)
- MFG Part# 0852LHVG, Model# 5200 with LiNK

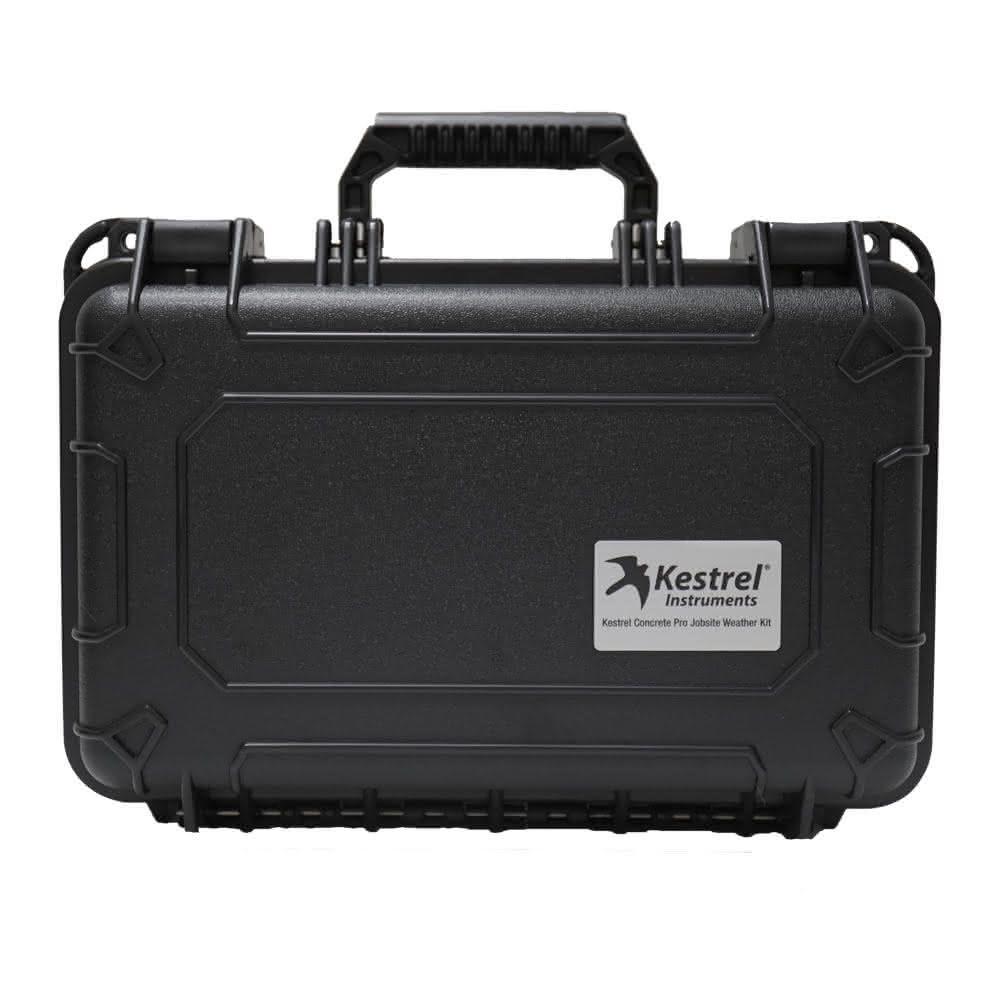

- MFG Part# for entire Kit 0852LVTCK, Model# Kestrel Concrete Pro Jobsite Weather Kit
Who's using the Kestrel 5200?

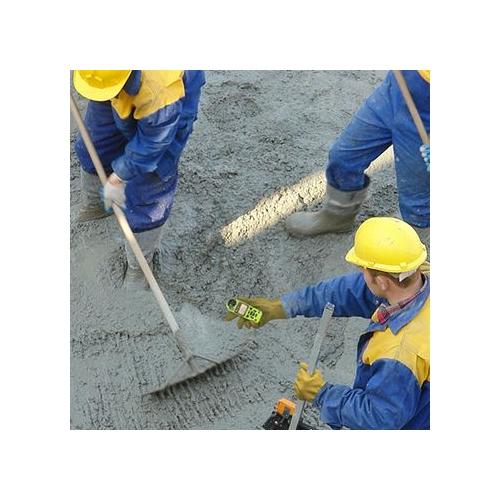

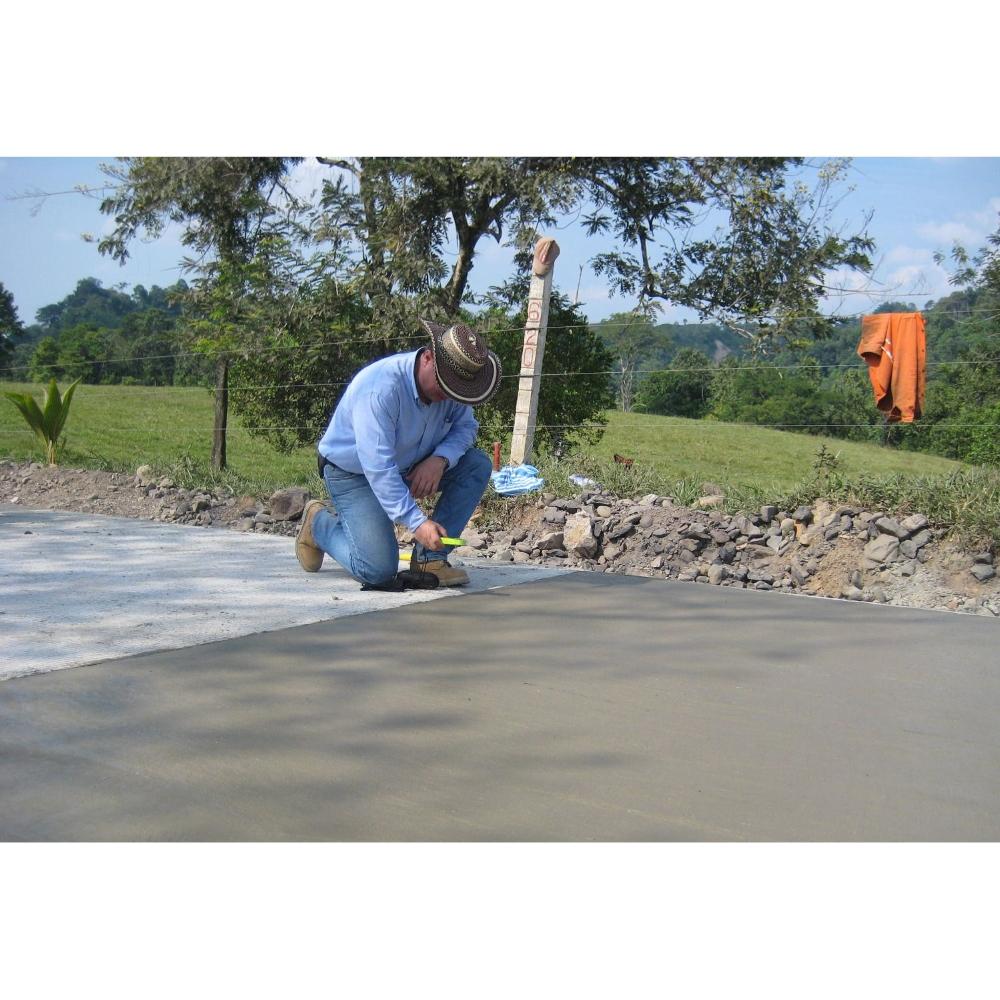

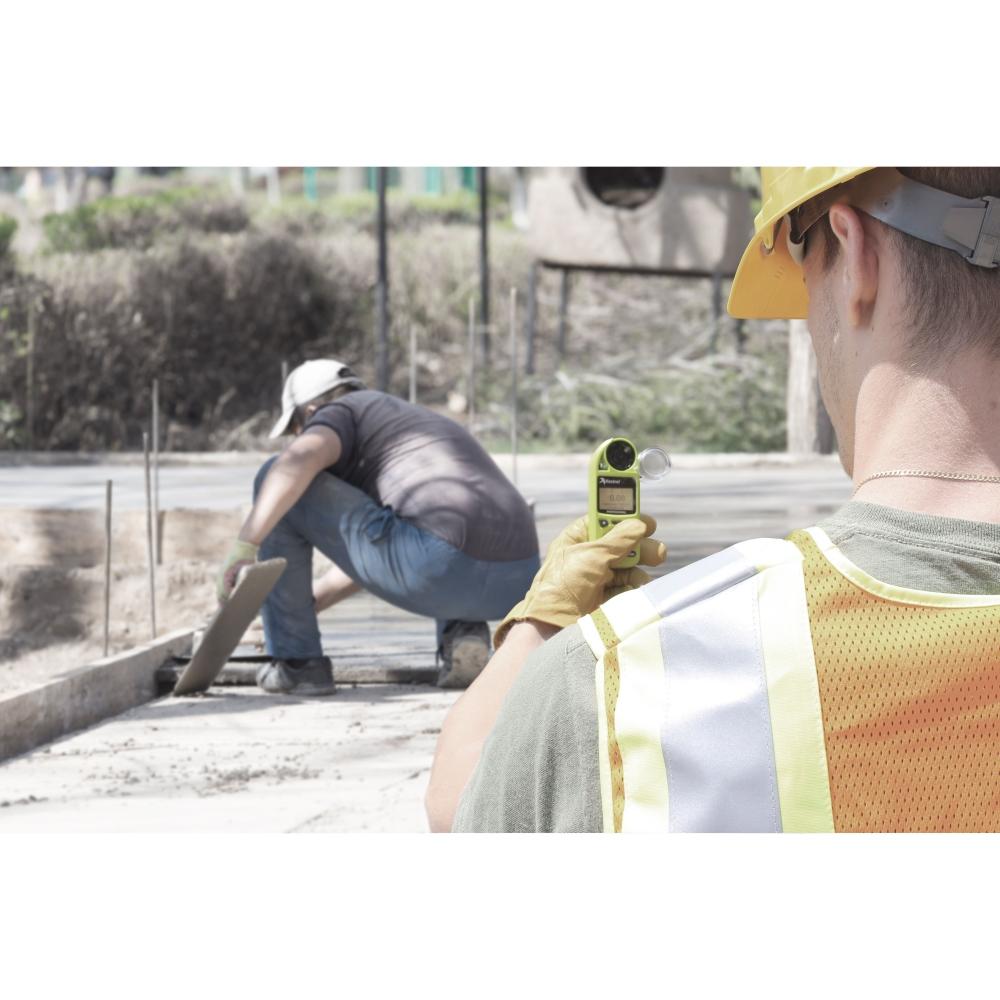

- Construction and Concrete Pouring
- Facilities Management
- HVAC & Air Conditioning Balancing
- Remediation
QUESTIONS & ANSWERS
Ask a Question-
Hola, en qué rango de distancia se puede utilizar el aparato? Me explico: dejar el kestrel a 5 ha y ver la información desde mi casa.
La modelo Bluetooth (LiNK) es buena para hasta 100 'sin obstrucciones.
-
What are the min/max wind speeds that the Kestrel 5200 measures? Can it be recording on my rooftop (well anchored of course) under all year round conditions here in Worcester, MA? What's the BT range on this unit?
Hi, The Kestrel 5200 Min/Max measurements can be found in our Kestrel Resources section here. Kestrel's are not really a good idea for a permanent weather station but are more a portable weather station. Thanks!
