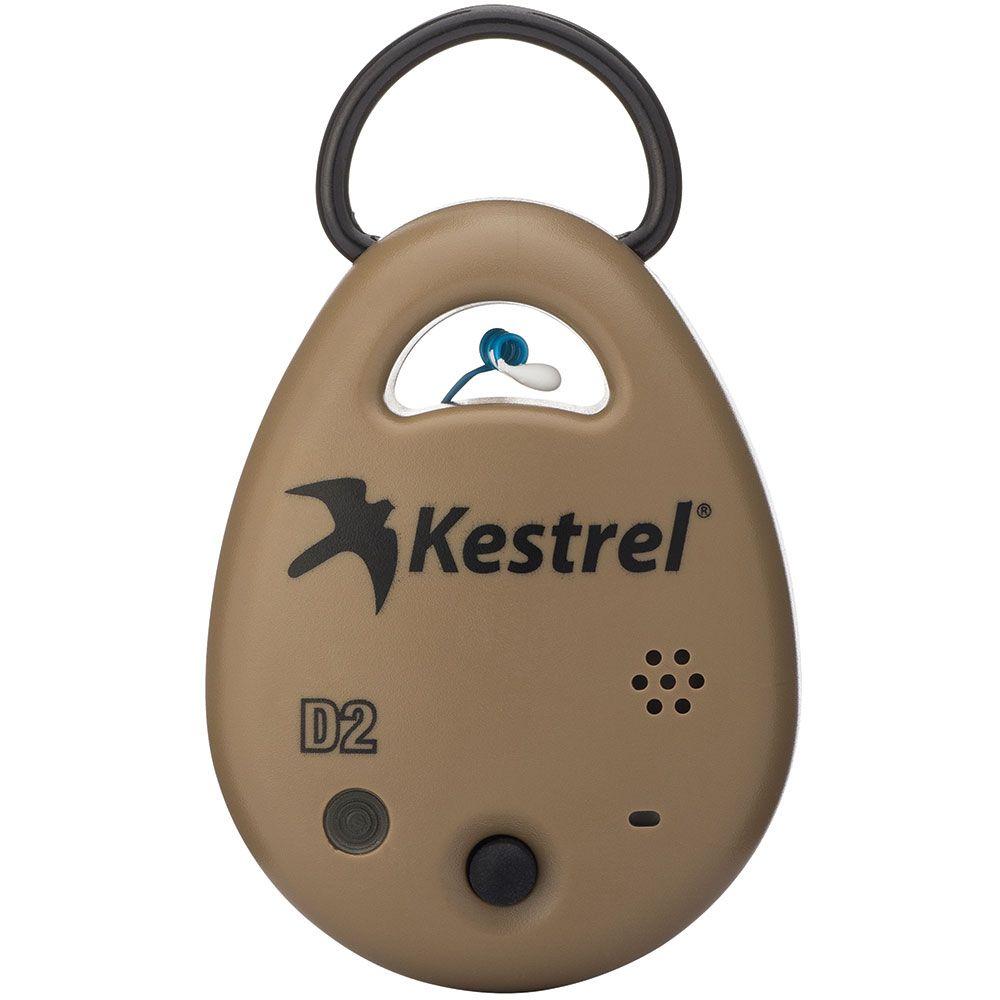

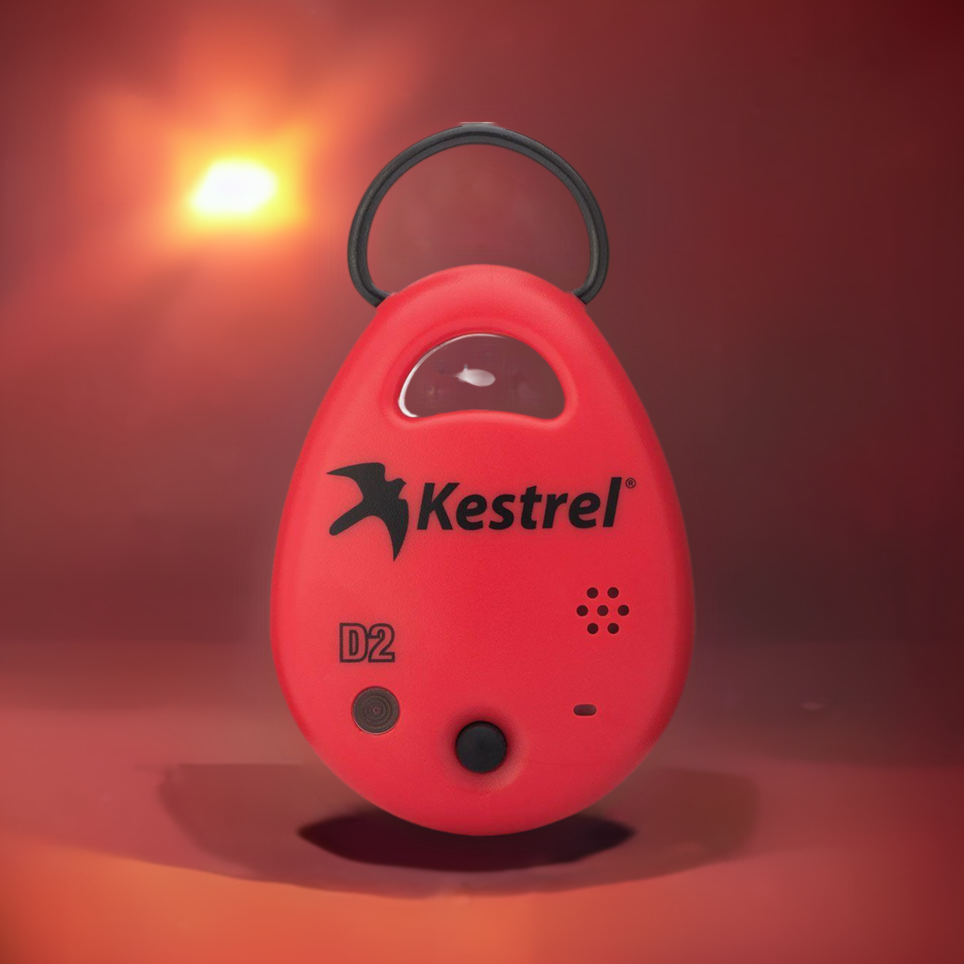

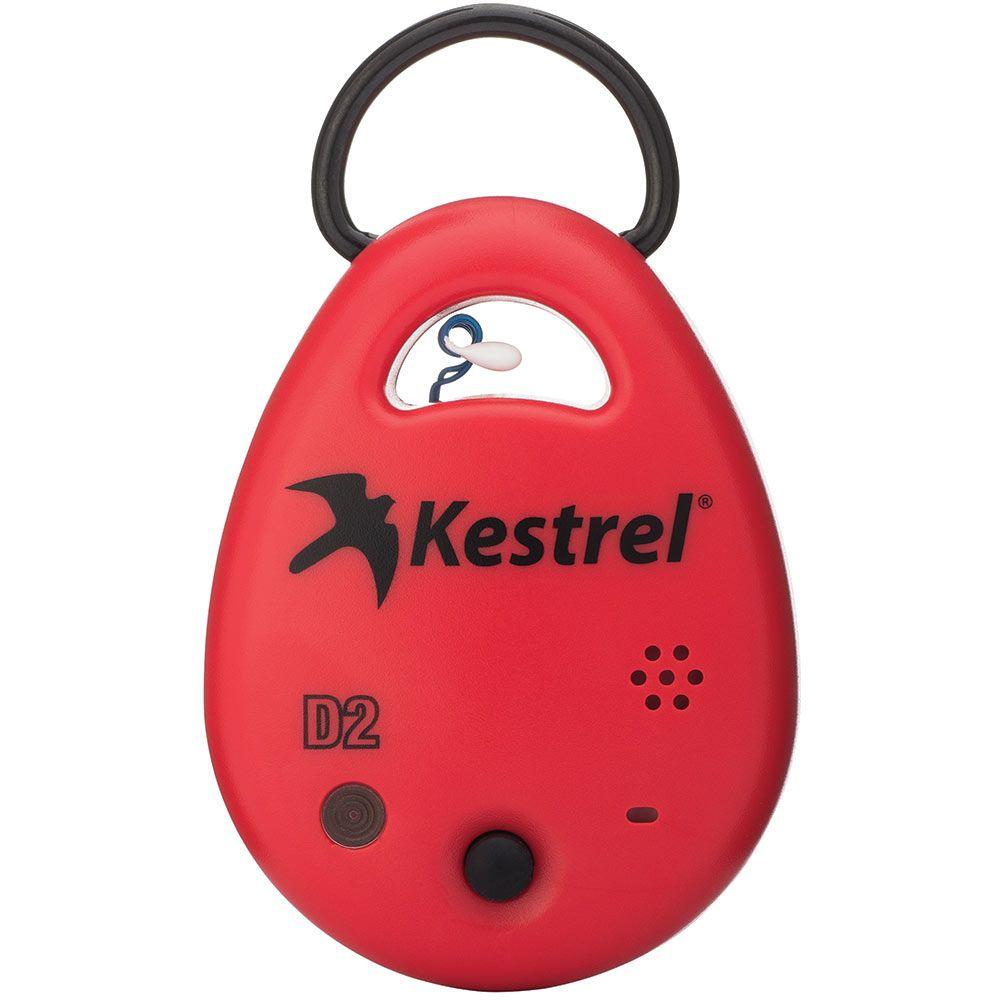

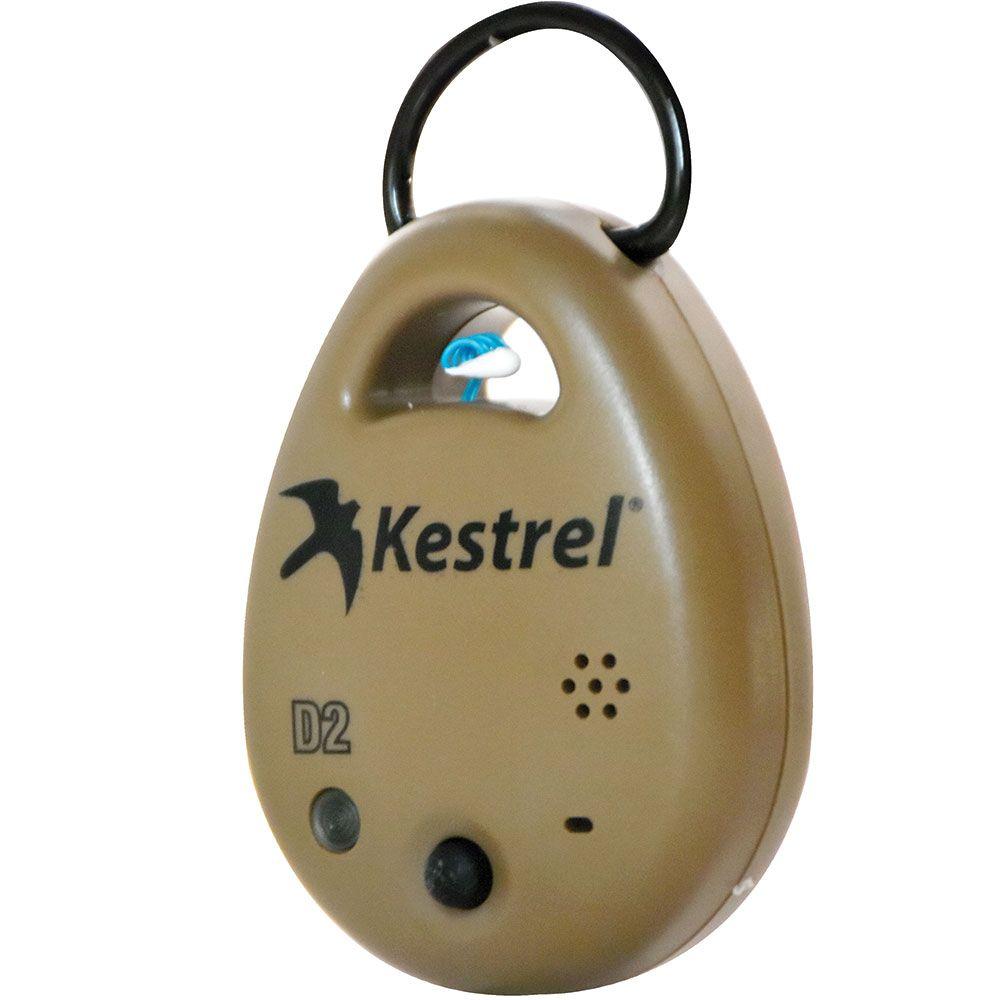

Kestrel DROP D2 Bluetooth Data Logger - Temperature | Humidity
Features
Kestrel D1 - D3 Sensor Specifications
| SENSORS | ||||
|---|---|---|---|---|
| SENSORS | ACCURACY (+/-) | RESOLUTION | SPECIFICATION RANGE | NOTES |
| AmbientTemperature | 0.9 °F 0.5 °C |
0.1 °F 0.1 °C | 14 to 131°F -10 to 55 °C |
Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. For greatest accuracy, avoid direct sunlight on the temperature sensor and prolonged sunlight exposure to the unit in low airflow conditions. Calibration drift is negligible for the life of the product. For further details, see Battery Operational Temperature Limits. |
| Relative Humidity | 2%RH | 0.1 %RH | 10 to 90% 25°C noncondensing | To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift is typically less than ±0.25% per year. |
| Pressure | 1.5 hPa|mbar 0.044 inHg 0.022 PSI |
0.1 hPa|mbar 0.01 inHg 0.01 PSI |
25°C/77°F 700-1100 hPa|mbar 20.67-32.48 inHg 10.15-15.95 PSI |
Monolithic silicon piezo-resistive pressure sensor with second-order temperature correction. Between 1100–1600 mbar, unit will operate with reduced accuracy. Sensor may not operate above 1600 mbar and can be damaged above 6,000 mbar or below 10 mbar. Calibration drift is negligible for the life of the product. |
| CALCULATED MEASUREMENTS | |||
|---|---|---|---|
| MEASUREMENT | ACCURACY (+/-) | RESOLUTION | SENSORS EMPLOYED |
| Density Altitude | 226 ft 69 m |
1 ft 1 m | Temperature, Relative Humidity Pressure |
| Dew Point | 3.4 °F 1.9 °C 15- 95% RH. Refer to Range for Temperature Sensor |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| Heat Index | 7.1°F 4.0°C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| THI (NRC) | 1.5 °F 0.8 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| THI (Yousef) | 2.3 °F 1.3 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| Wet Bulb Temperature - Psychrometric | 3.2 °F 1.8 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity Pressure |
| ADDITIONAL PRODUCT INFO | |
|---|---|
| Response Time & Display Update | Display updates every 1 second. After exposure to large environmental changes, all sensors require an equilibration period to reach stated accuracy. Measurements employing RH may require longer periods particularly after prolonged exposure to very high or very low humidity. WBGT requires about 8 minutes to reach 95% accuracy and about 15 minutes to reach 99% accuracy after exposure to large environmental changes. |
| Data Storage | Logged history stored for every measured value. Auto-store interval settable from 2 seconds to 12 hours*, overwrite on or off. D1: >13,000 data points, D2: >7,000 data points, D3: >6,000 data points. |
| Bluetooth® Data Connect Option | Wireless range up to 100ft|30m. Compatible with Kestrel LiNK app for iOS (model 4s and later) and select Android products (Android 4.3 and higher) (See website for complete list of compatible 3rd party apps). |
| Certifications | CE certified, RoHS, FCC, IC tested and WEEE compliant. Individually tested to NIST-traceable standards. |
| Origin | Designed and manufactured in the USA from US and imported components. Complies with Regional Value Content and Tariff Code Transformation requirements for NAFTA Preference Criterion B. |

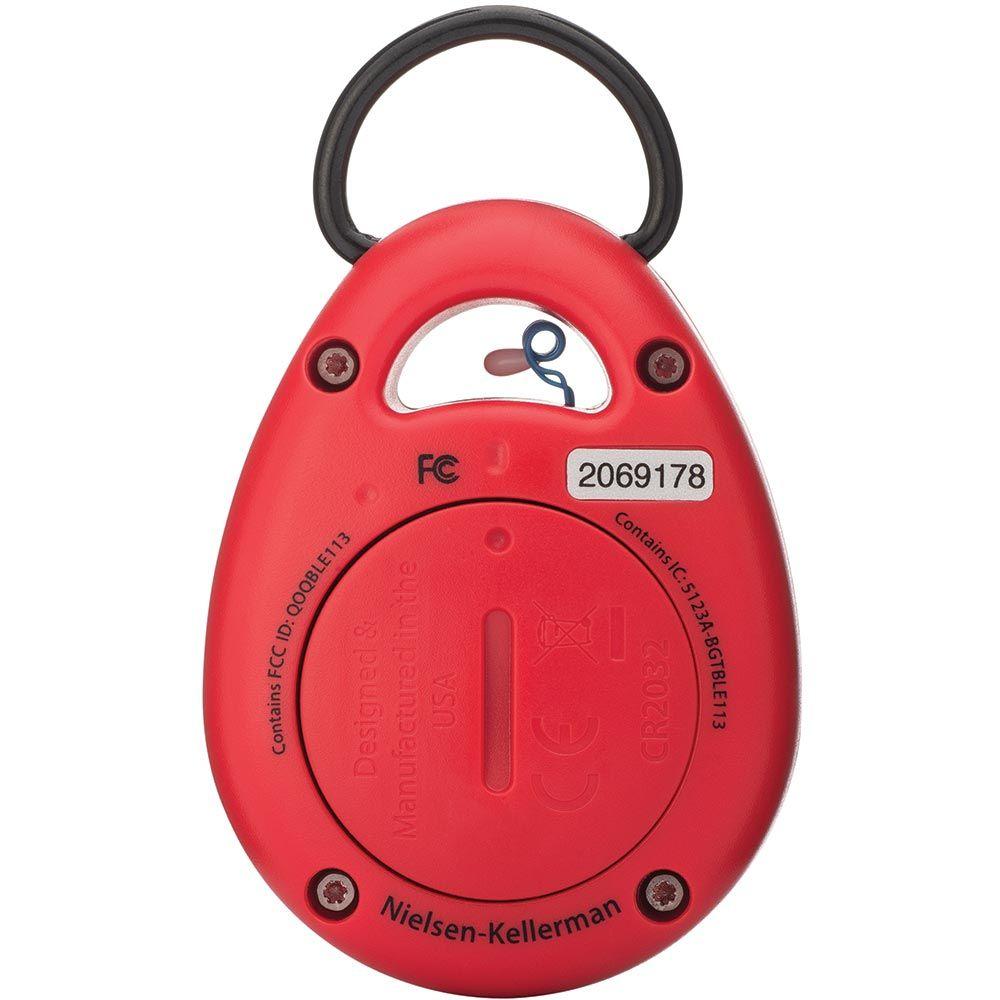

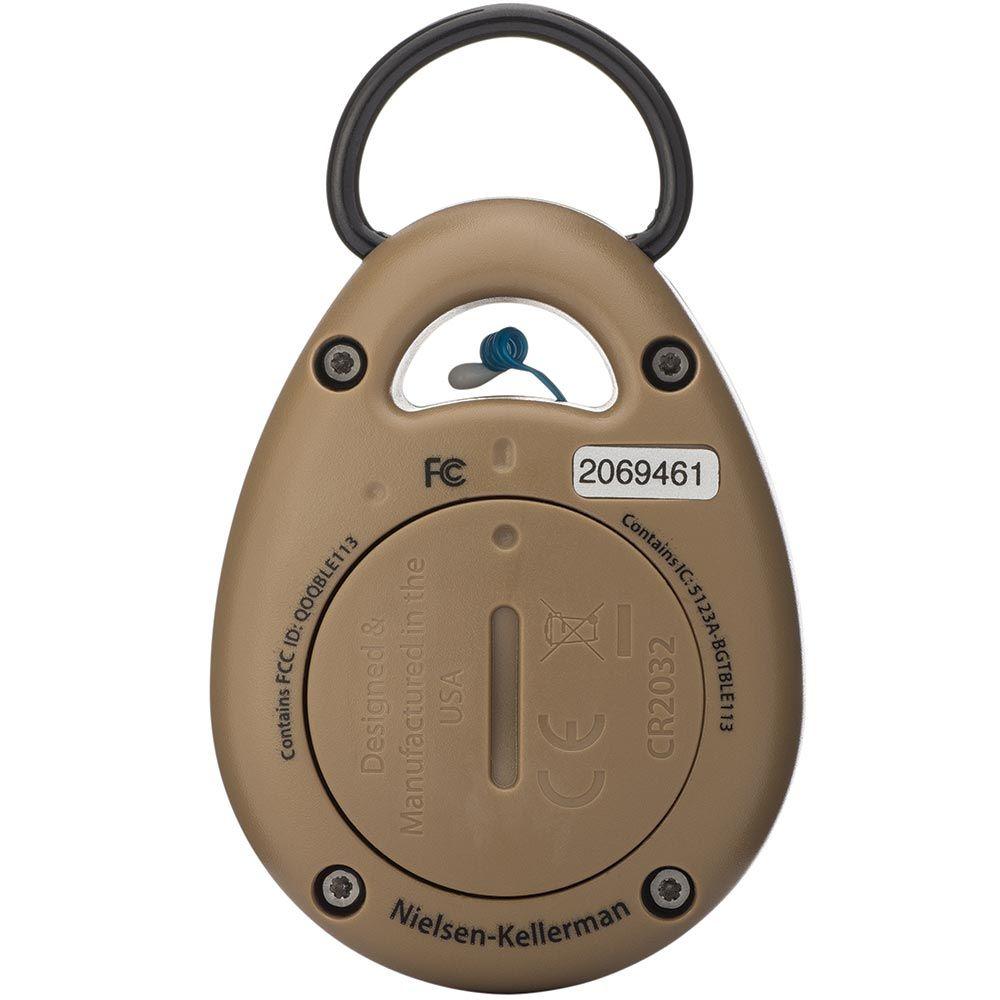

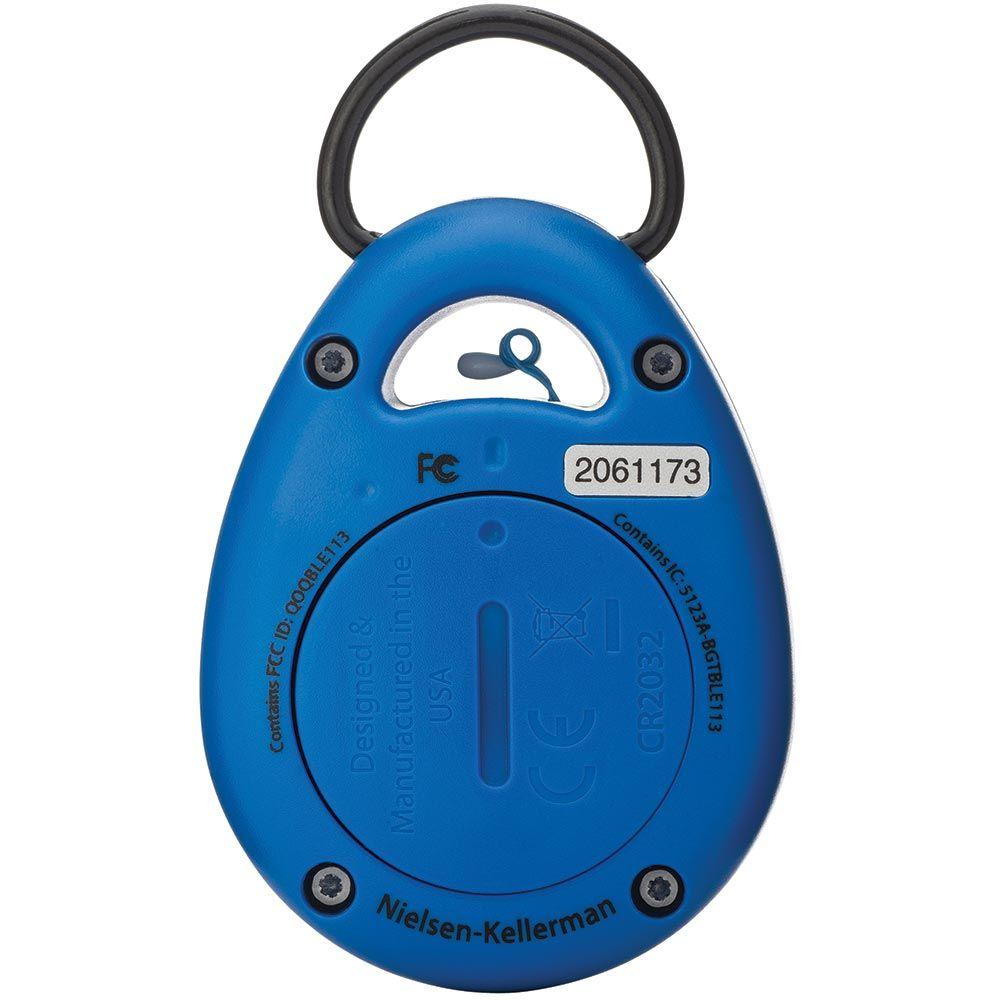

| Battery | User-replaceable CR2032 (included). |
| Shock Resistance | MIL-STD-810g, Transit Shock, Method 516.6 Procedure IV; unit only; impact may damage replaceable impeller. |
| Sealing | Waterproof (IP67 and NEMA-6) |
| Battery Operational Temperature Limits | 0° F to 140 ° F | -18 °C to 60°C Measurements may be taken beyond the limits of the operational temperature range of batteries by maintaining the unit within the operational range and then exposing it to the more extreme environment for the minimum time necessary to take reading. |
| Storage Temperature | -22.0 °F to 140.0 °F | -30.0 °C to 60.0 °C. |

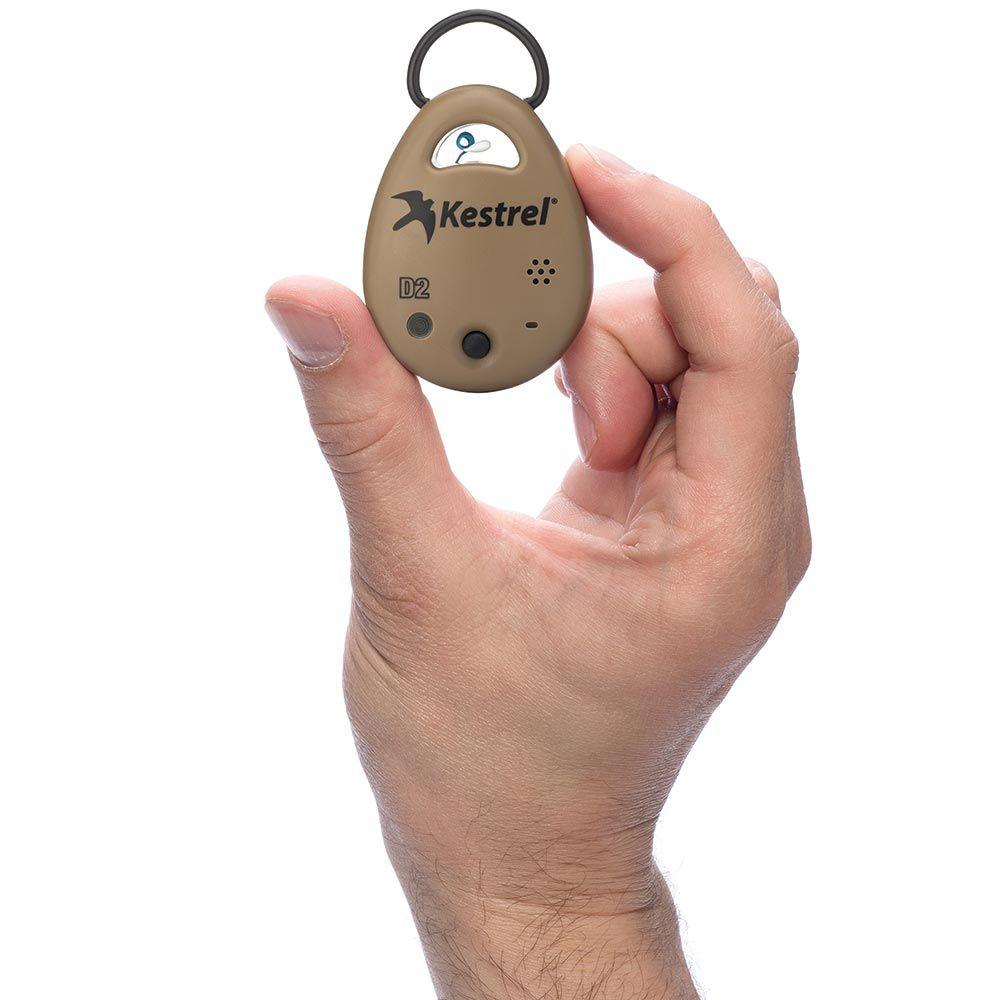

| Size & Weight | 2.4 x 1.8 x 0.9 in | 6 x 4.5 x 2.3 cm 1.2oz | 34g (Lithium battery included) |

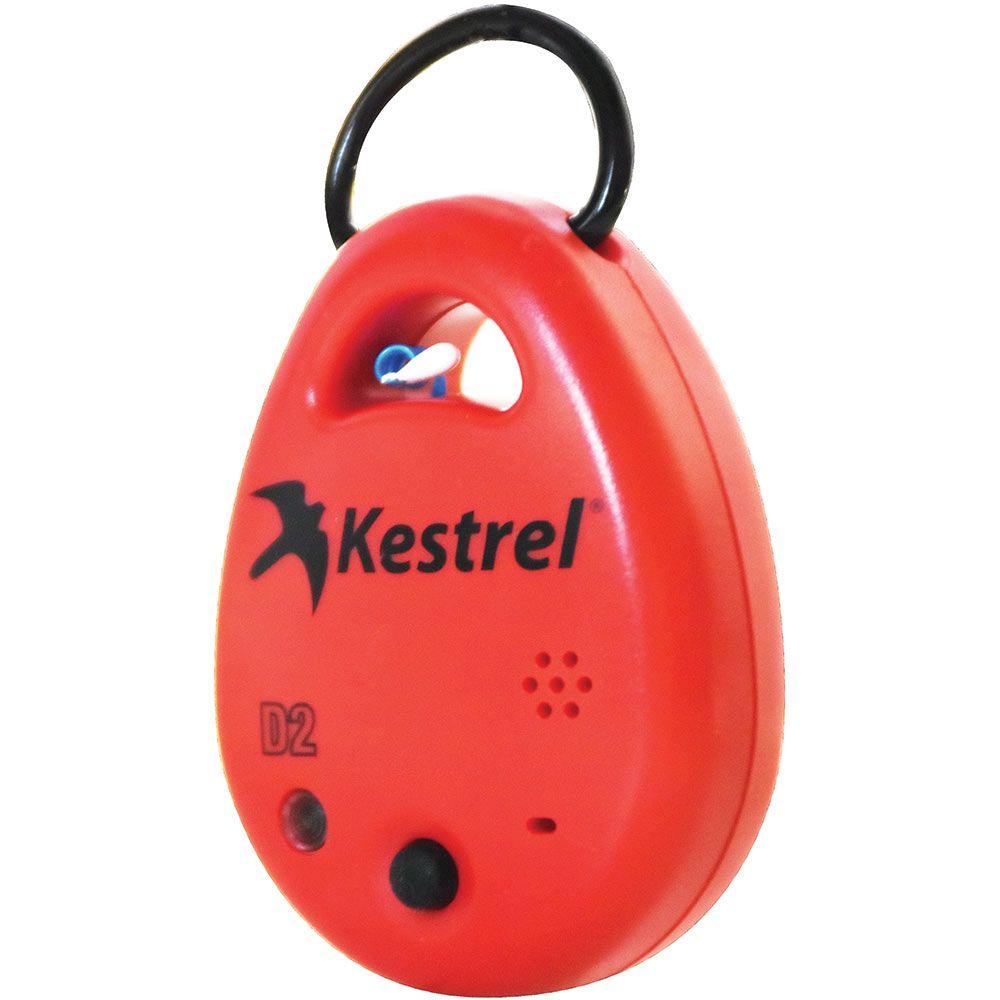

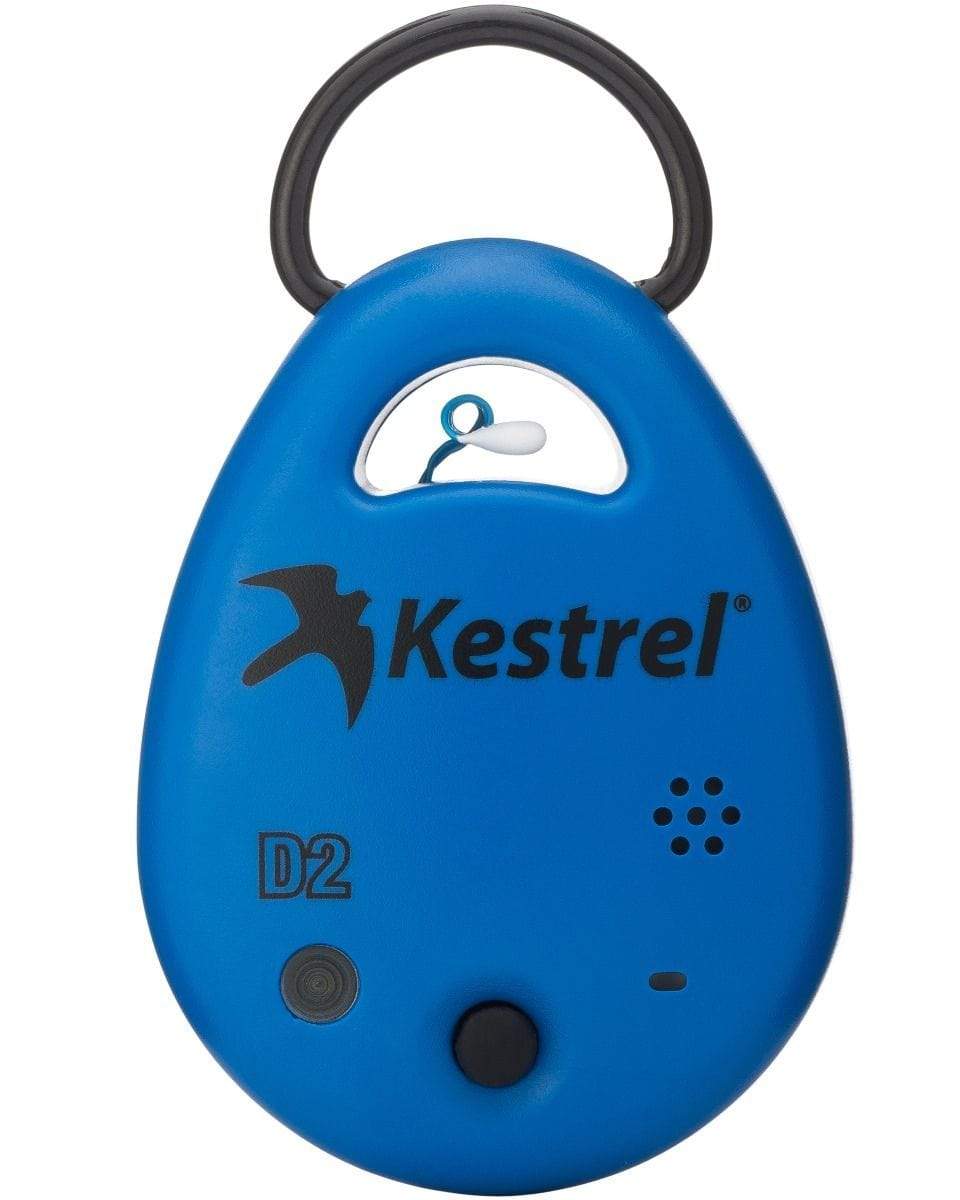

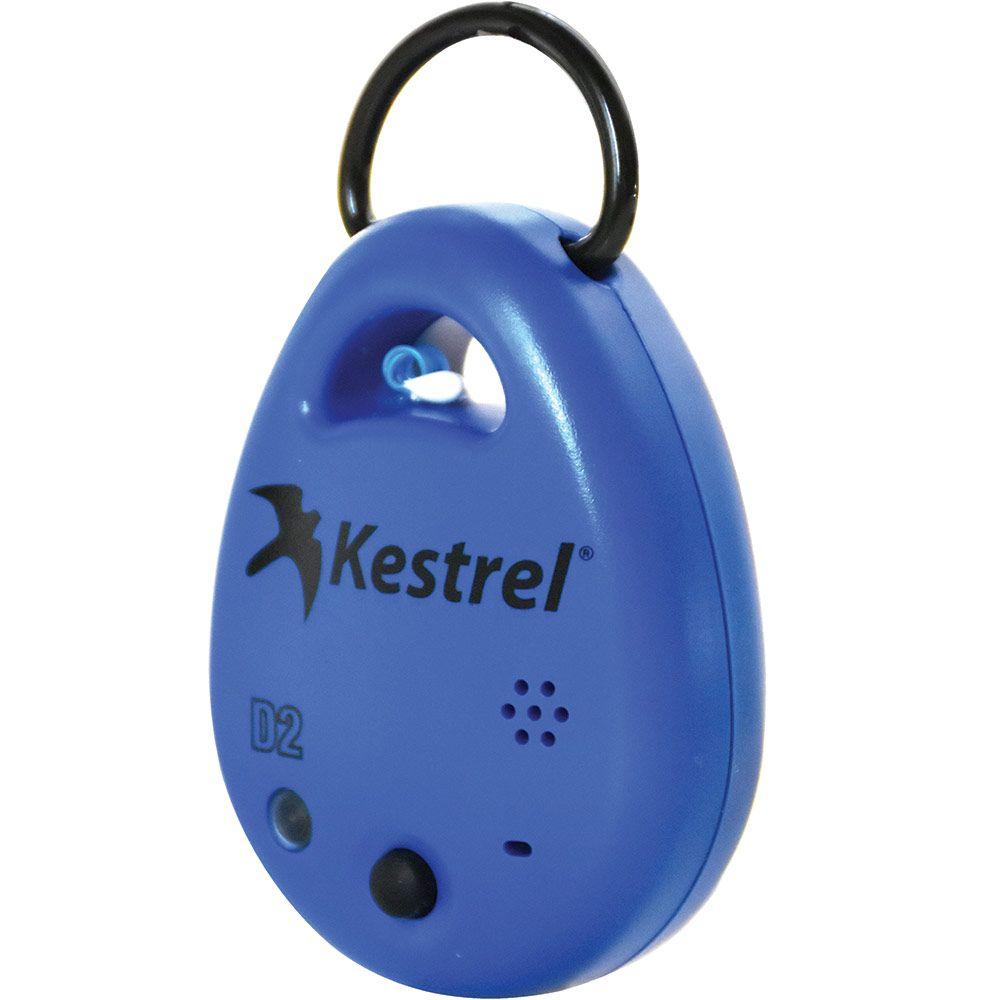

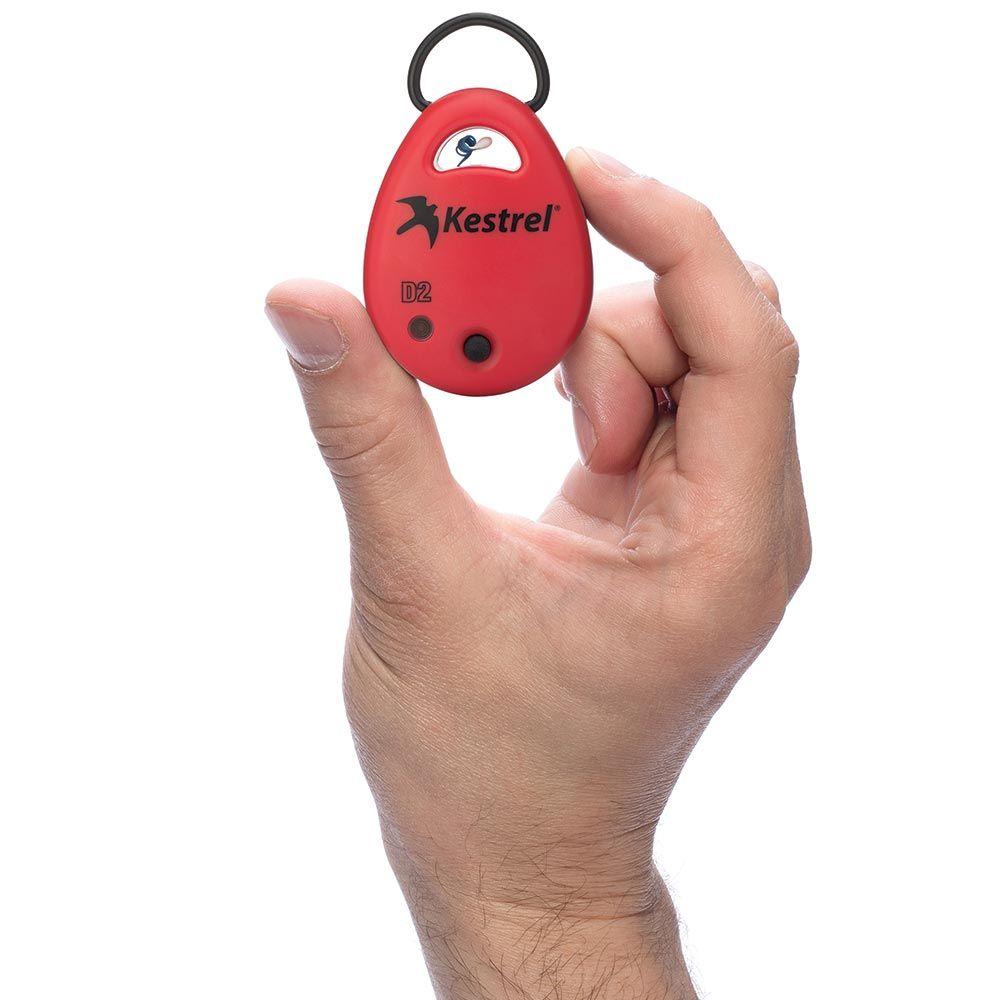

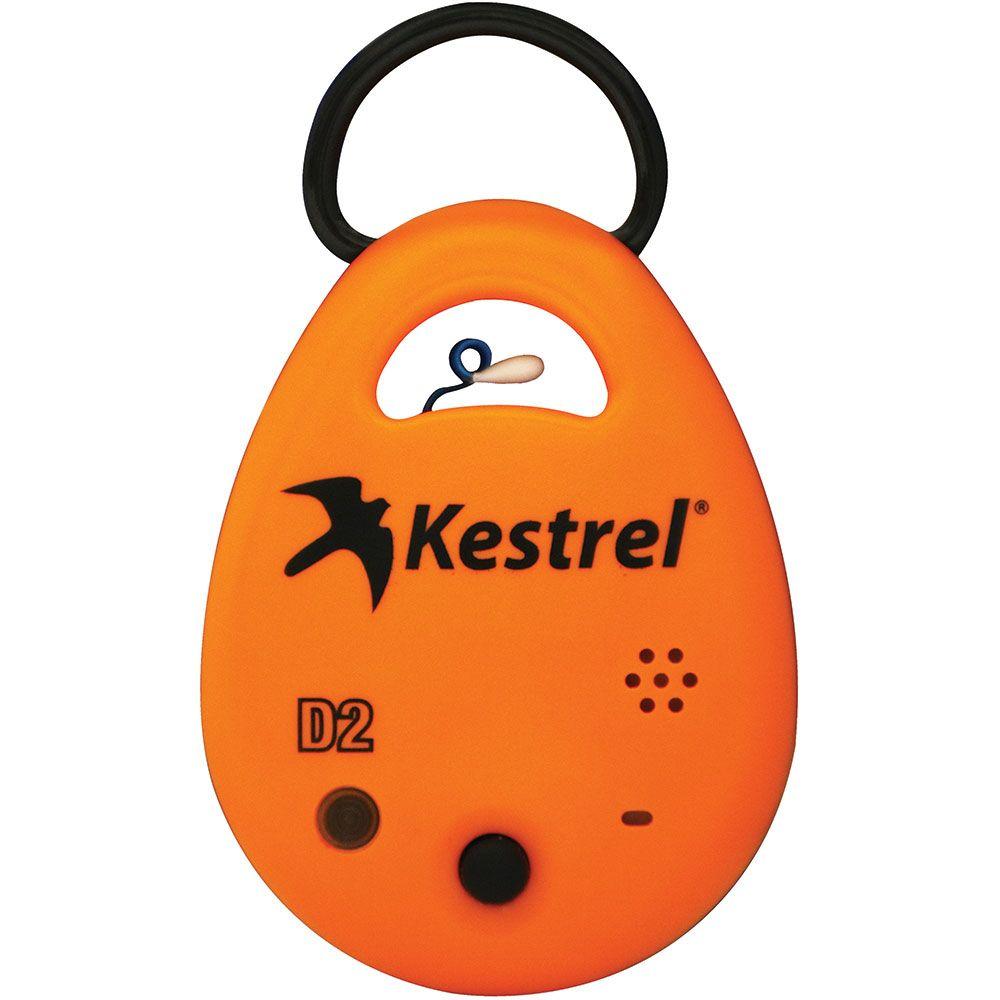

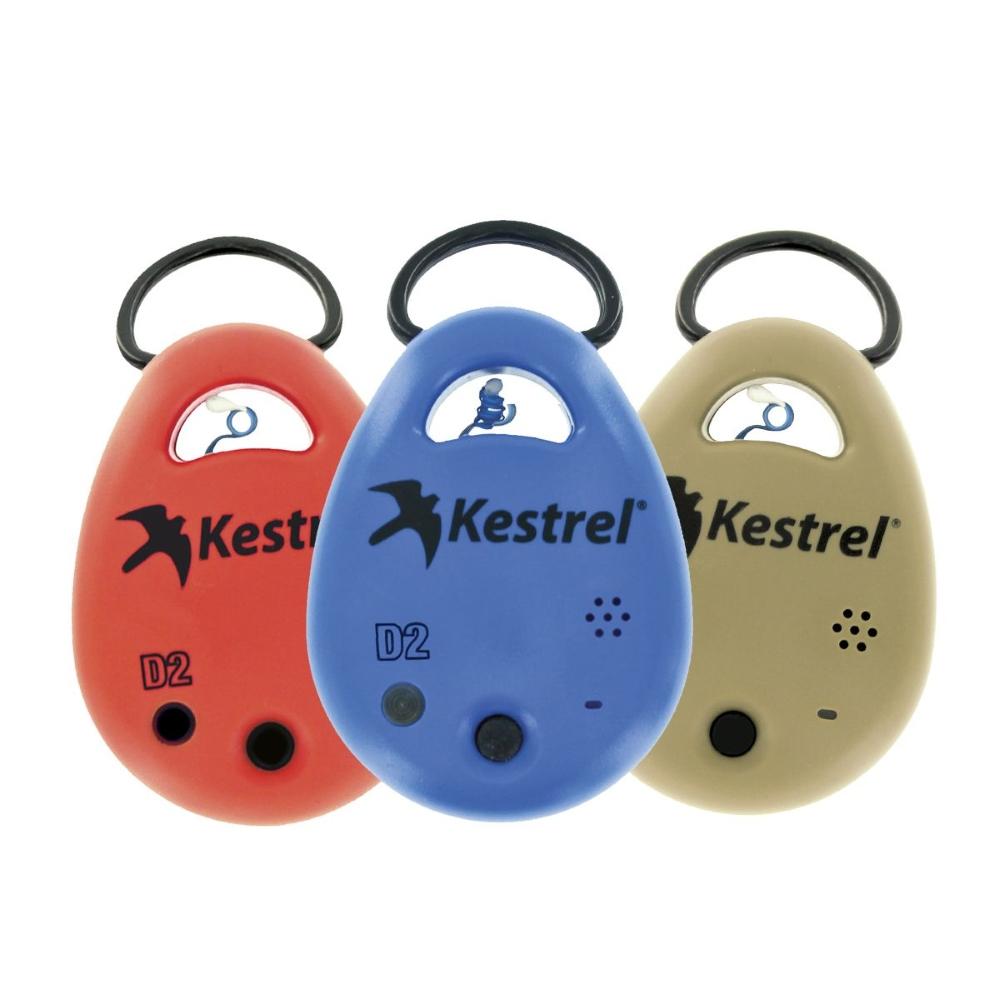

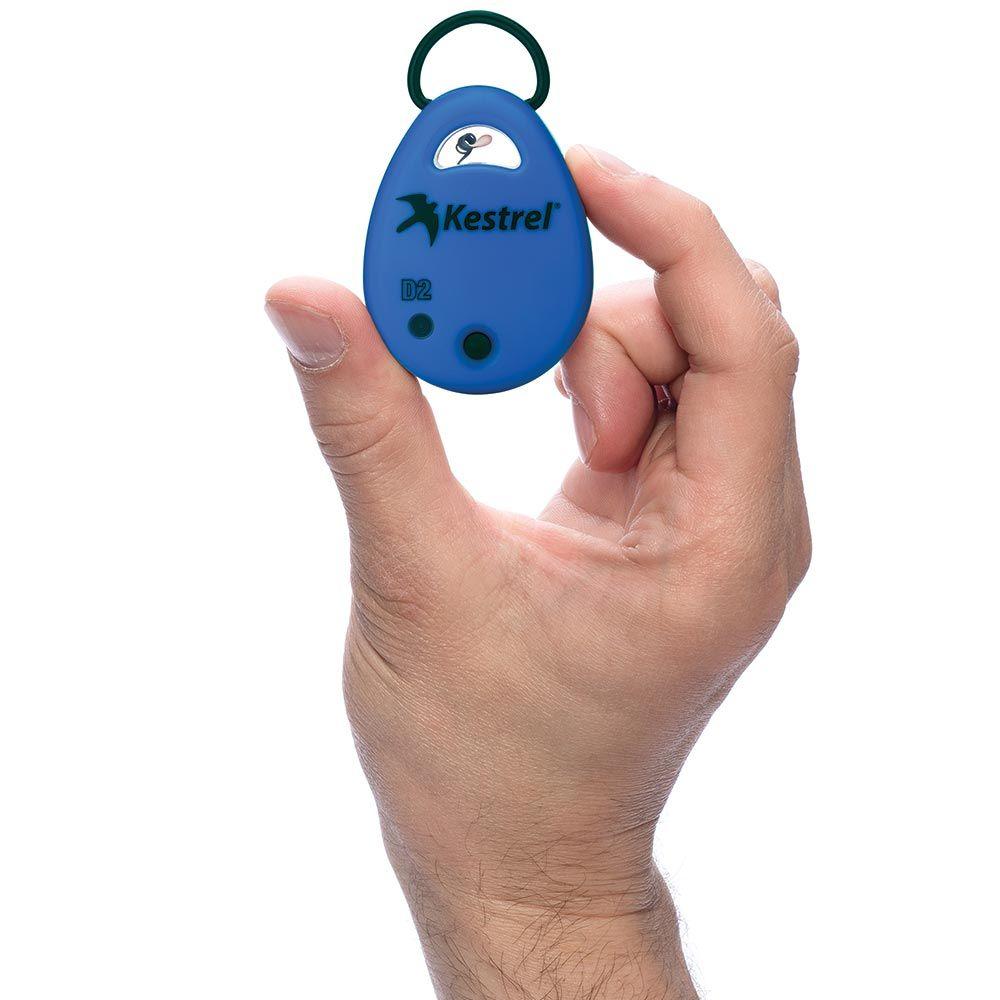

A Kestrel DROP is the world’s easiest-to-use rugged environmental data logger.
Monitor and record the conditions of any environment and easily access and chart real-time and historical data on your phone or tablet. A Kestrel DROP D2 logger can be placed wherever needed to log temperature and humidity with the data logs retrieved wirelessly and automatically to the Kestrel Connect app when within range(up to 100ft.). Kestrel DROP data loggers are designed to be used anywhere you need to track environmental conditions. DROP loggers meet military and international standards for water, dust and shock resistance (IP-67-30 minute submersion at 1m and MIL-STD-810G drop tested) and are equipped with a sturdy D-ring for hanging wherever needed.
Measures & Records:
- Temperature
- Relative Humidity
- Dew Point Temperature
- Heat Stress Index
All you need is a DROP and a Smartphone with the free Kestrel LiNK app!

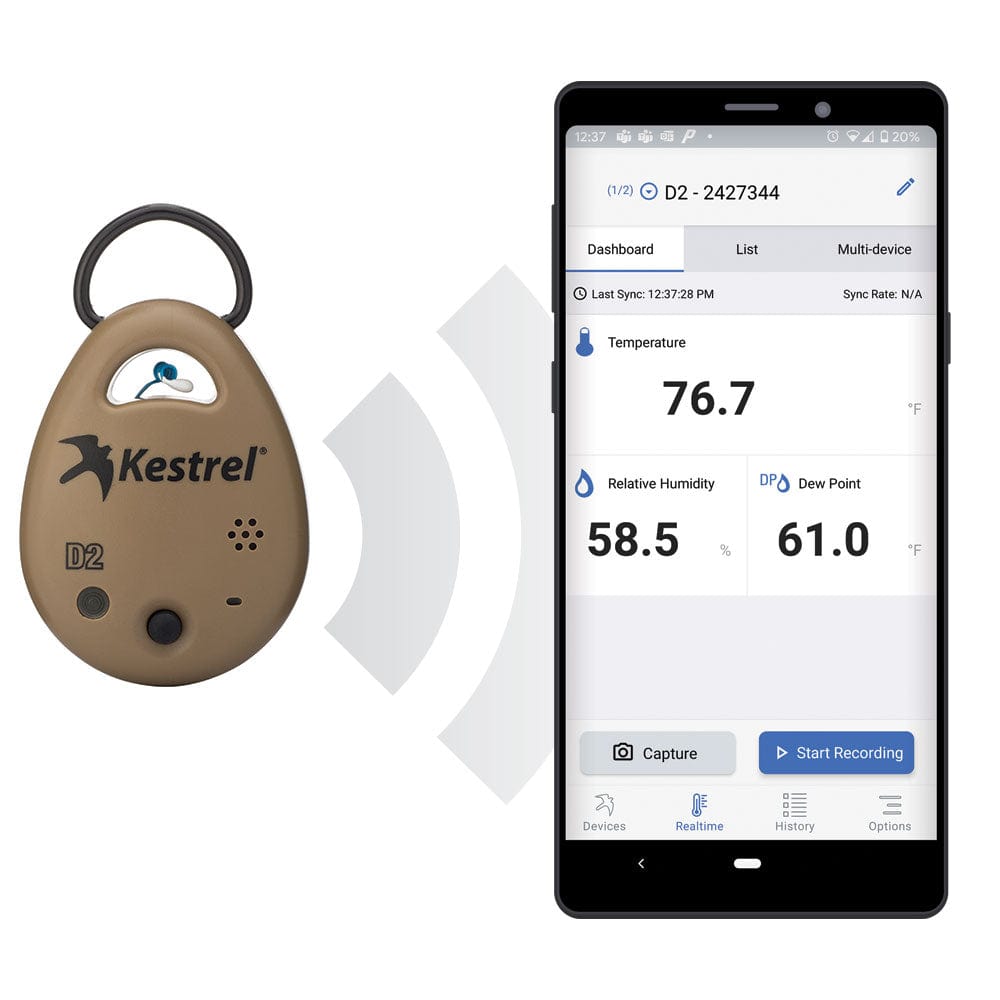

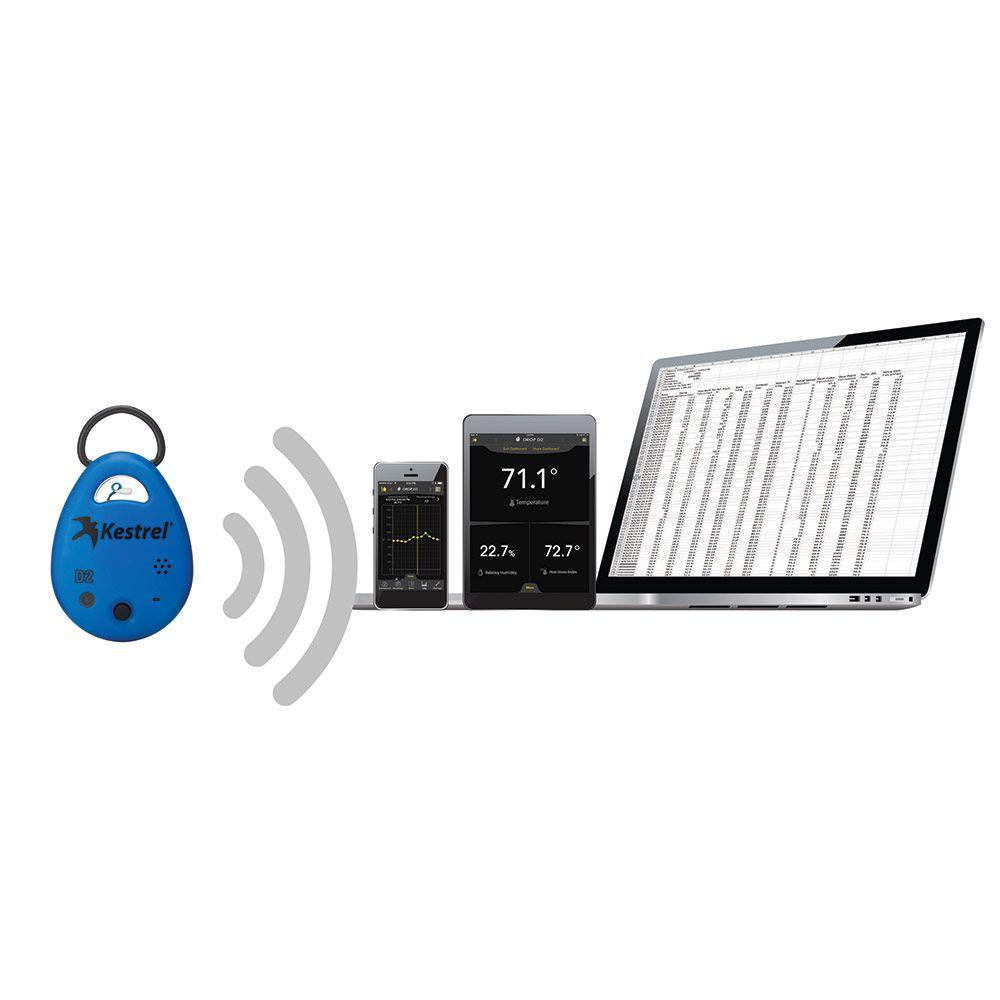

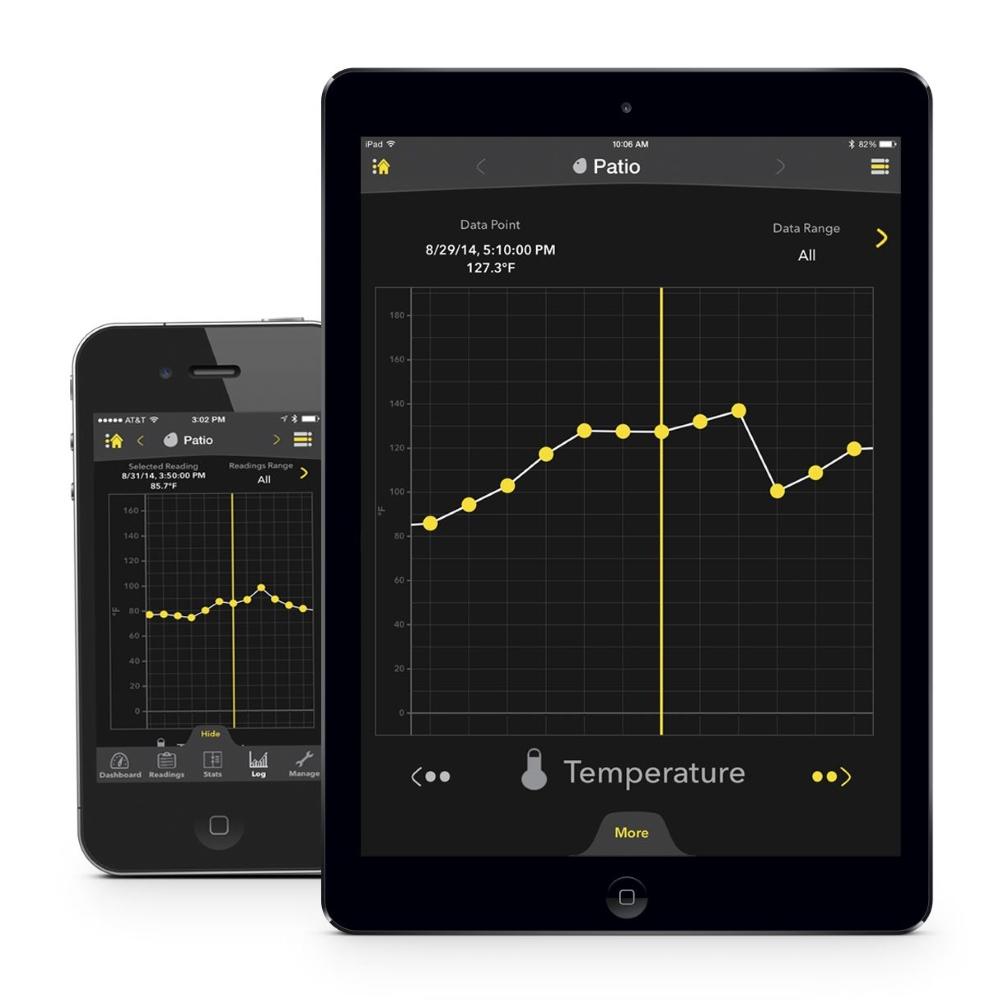

Kestrel LiNK is the free app that powers the DROP loggers. With Kestrel Connect, you can view real-time readings from any DROP logger within wireless range (100’ or more line of sight) via Bluetooth® low energy Each phone or tablet can connect to up to 8 DROP loggers at the same time and store data logs from many more. Min/Max/Average readings are clearly displayed and the log is viewable as a scrolling graph with detailed data for each logged point. The app also allows adjustment of the logging interval and other settings as well as real-time threshold alerts. Readings can be updated as frequently as every 2 seconds and logging time and date are automatically updated whenever connected to your smart device. Send and share real-time and logged environmental data via email, Facebook or Twitter.
DROP D1-D3 Data Points
DROP D1: Data Points: 13064
- Logging every 2 seconds - Fills up after 7.5 hours
- Logging every 10 minutes - Fills up after 90.7 days
- Logging every 2 hours - Fills up after 544 days
DROP D2: Data Points: 8165
- Logging every 2 seconds - Fills up after 4.5 hours
- Logging every 10 minutes - Fills up after 56.7 days
- Logging every 2 hours - Fills up after 340 days.
DROP D3: Data Points: 6220
- Logging every 2 seconds: Fills up after 3.4 hours
- Logging every 10 minutes - Fills up after 43.2 days
- Logging every 2 hours - Fills up after 259 days
Battery Life:
- The battery life will vary based on usage.
- For baseline conditions and settings*, the battery will last approximately 6 months. *Temp = 75°F, Logging Rate = 10 Minutes, Update Rate = 30 seconds.
- Battery life will be reduced by:
- Colder conditions
- More frequent logging or update rates
- Downloads of large data logs (or firmware updates) are best completed with a fresh battery and in temperatures above 10°C / 50°F.
Requirements:
- iOS 6 installed iPhone 4s, iPad 3rd generation, iPod Touch 5th generation and above.
- Android 4.2 and higher. Works with most Android devices with Bluetooth® low energy, including Samsung Galaxy, Nexus 4, Motorola Droid, and other recent generation phones and tablets.
QUESTIONS & ANSWERS
Ask a Question-
I am interested in using the Kestrel D2 out in nature to record local climate data at an experimental site. Can the battery life last more than 6 months if I record data once every hour or two even through winter temperatures (Othello, WA to Atomic City, ID, Santa Rosa Mountains near McDermitt, NV?
Here are some thoughts on battery life
• Cold conditions, frequent logging rates, and frequent log downloads will all shorten battery life.
• When downloading extremely large data logs or making firmware updates, avoid using low batteries and conditions below 32°F/0°C.
• Estimated battery life at the baseline settings programmed into your DROP when shipped from the factory (10 min logging rate, 5 sec connection rate) and room temperature (77°F/25°C) is about 4 months. Intensive logging and connection settings (2 sec logging rate, constant connection) can reduce battery life to as little as 11 days. -
I need a gauge to measure heat & humidity under plastic tunnels. Which thermometer works best?
We recommend Kestrel D2 DROP. You can leave it in place then come back and when within Bluetooth range download the readings using the Kestrel LiNK app and a Android or iOS phone or tablet. You can also view real time readings when within range when needed.
-
Can the Kestrel D2 connect to my phone if it\'s placed on the outside of my RV and I\'m inside the RV? I need to see the temperature/humidity while inside but I\'m not sure if it\'ll connect through the wall.
The DROP is good for about 100 feet of unobstructed distance. I use one here which is just outside the office but it really depends on what is between you and the DROP.
-
Is there any calibration data available for these meters? Can they be calibrated?

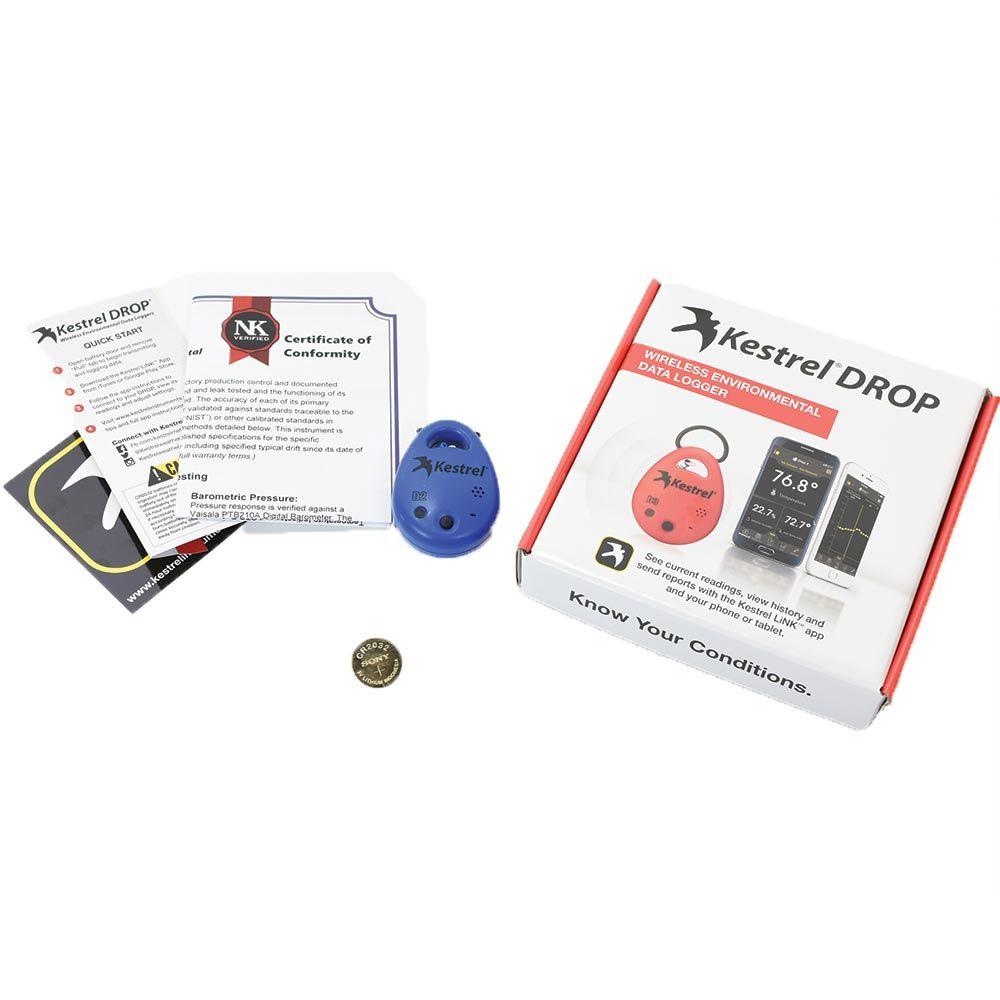

Hi, This is from the certificate of conformity which will be included with every Kestrel:
"This instrument was produced under rigorous factory production control and documented standard procedures. It was individually inspected and leak tested and the functioning of its buttons, communication and firmware was verified. The accuracy of each of its primary measurements was individually calibrated and/or validated against standards traceable to the National Institute of Standards and Technology (“NIST”) or other calibrated standards in accordance with the documented standard test methods detailed below. This instrument is warrantied to perform in compliance with the published specifications for the specific measurements and features of its model number including specified typical drift since its date of manufacture."
You can find the C of C for all Kestrel's here.
Also, yes this item can be recalibrated if you notice some drift in the readings after some time but that would not be required for some time.
