Kestrel DROP D2HS Heat Stress Monitor
Are your needs greater than what we are showing available, or do you need a quote?
Here is what we need:
The product(s): We need the SKU number for the products you want us to supply. You can find this product identifier under the title of the item, It will look like this (SKU: 0855TAN). The SKU changes if you select a different color or variable.
Color: If there are multiple colors, let us know the color.
Quantity: How many of each item?
Name, Shipping address and email address: We will send you a custom quote with a link to our checkout.
You can send your request to us at sales@extrememeters.com.
Features
Kestrel D1 - D3 Sensor Specifications
| SENSORS | ||||
|---|---|---|---|---|
| SENSORS | ACCURACY (+/-) | RESOLUTION | SPECIFICATION RANGE | NOTES |
| AmbientTemperature | 0.9 °F 0.5 °C |
0.1 °F 0.1 °C | 14 to 131°F -10 to 55 °C |
Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. For greatest accuracy, avoid direct sunlight on the temperature sensor and prolonged sunlight exposure to the unit in low airflow conditions. Calibration drift is negligible for the life of the product. For further details, see Battery Operational Temperature Limits. |
| Relative Humidity | 2%RH | 0.1 %RH | 10 to 90% 25°C noncondensing | To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift is typically less than ±0.25% per year. |
| Pressure | 1.5 hPa|mbar 0.044 inHg 0.022 PSI |
0.1 hPa|mbar 0.01 inHg 0.01 PSI |
25°C/77°F 700-1100 hPa|mbar 20.67-32.48 inHg 10.15-15.95 PSI |
Monolithic silicon piezo-resistive pressure sensor with second-order temperature correction. Between 1100–1600 mbar, unit will operate with reduced accuracy. Sensor may not operate above 1600 mbar and can be damaged above 6,000 mbar or below 10 mbar. Calibration drift is negligible for the life of the product. |
| CALCULATED MEASUREMENTS | |||
|---|---|---|---|
| MEASUREMENT | ACCURACY (+/-) | RESOLUTION | SENSORS EMPLOYED |
| Density Altitude | 226 ft 69 m |
1 ft 1 m | Temperature, Relative Humidity Pressure |
| Dew Point | 3.4 °F 1.9 °C 15- 95% RH. Refer to Range for Temperature Sensor |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| Heat Index | 7.1°F 4.0°C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| THI (NRC) | 1.5 °F 0.8 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| THI (Yousef) | 2.3 °F 1.3 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| Wet Bulb Temperature - Psychrometric | 3.2 °F 1.8 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity Pressure |
| ADDITIONAL PRODUCT INFO | |
|---|---|
| Response Time & Display Update | Display updates every 1 second. After exposure to large environmental changes, all sensors require an equilibration period to reach stated accuracy. Measurements employing RH may require longer periods particularly after prolonged exposure to very high or very low humidity. WBGT requires about 8 minutes to reach 95% accuracy and about 15 minutes to reach 99% accuracy after exposure to large environmental changes. |
| Data Storage | Logged history stored for every measured value. Auto-store interval settable from 2 seconds to 12 hours*, overwrite on or off. D1: >13,000 data points, D2: >7,000 data points, D3: >6,000 data points. |
| Bluetooth® Data Connect Option | Wireless range up to 100ft|30m. Compatible with Kestrel LiNK app for iOS (model 4s and later) and select Android products (Android 4.3 and higher) (See website for complete list of compatible 3rd party apps). |
| Certifications | CE certified, RoHS, FCC, IC tested and WEEE compliant. Individually tested to NIST-traceable standards. |
| Origin | Designed and manufactured in the USA from US and imported components. Complies with Regional Value Content and Tariff Code Transformation requirements for NAFTA Preference Criterion B. |
| Battery | User-replaceable CR2032 (included). |
| Shock Resistance | MIL-STD-810g, Transit Shock, Method 516.6 Procedure IV; unit only; impact may damage replaceable impeller. |
| Sealing | Waterproof (IP67 and NEMA-6) |
| Battery Operational Temperature Limits | 0° F to 140 ° F | -18 °C to 60°C Measurements may be taken beyond the limits of the operational temperature range of batteries by maintaining the unit within the operational range and then exposing it to the more extreme environment for the minimum time necessary to take reading. |
| Storage Temperature | -22.0 °F to 140.0 °F | -30.0 °C to 60.0 °C. |
| Size & Weight | 2.4 x 1.8 x 0.9 in | 6 x 4.5 x 2.3 cm 1.2oz | 34g (Lithium battery included) |
Kestrel DROP D2HS Heat Stress Monitor Overview

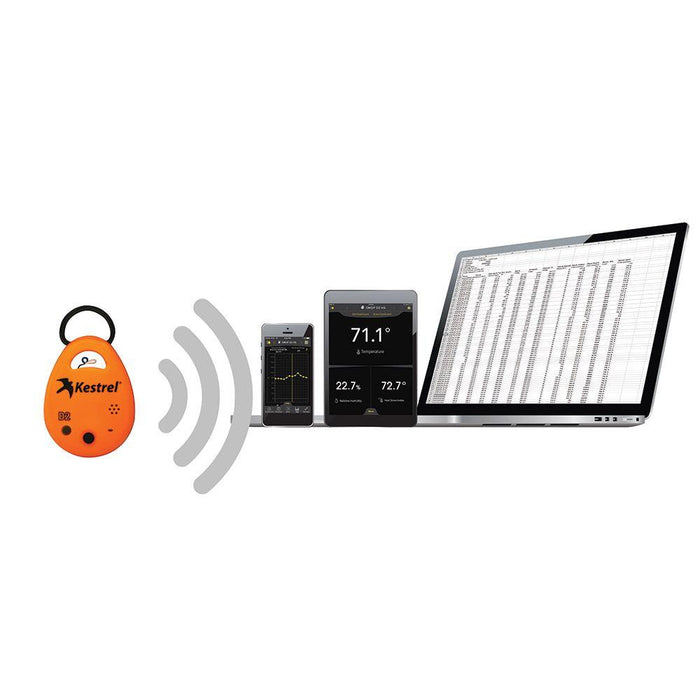

Know your temperature and humidity conditions anywhere with the small, rugged Kestrel DROP D2 Heat Stress Monitor.The Kestrel DROP D2 data logger can be placed wherever needed to log temperature and humidity with the data logs retrieved wirelessly and automatically to the Kestrel LiNK app when within wireless range(up to 100’ or more line of sight).
- The EASIEST way to monitor and track temperature, humidity, heat index and dew point in almost any environment – wet or dry, indoors or out
- View data wirelessly via Bluetooth Smart on your iOS or Android phone or tablet with the free Kestrel LiNK app
- Store thousands of data points and get months of logging on a single coin-cell battery - customize logging rate, connections and alerts See, save and share data from multiple DROPs with just one phone or tablet -
- iOS 6 installed iPhone 4s, iPad 3rd generation or later
- Android 4.3 and higher. Works with most Android devices with Bluetooth Smart®, including Samsung Galaxy, Nexus 4, Motorola Droid and other recent generation phones and tablets.
Use a DROP Anywhere - Small, Accurate, Rugged and Waterproof

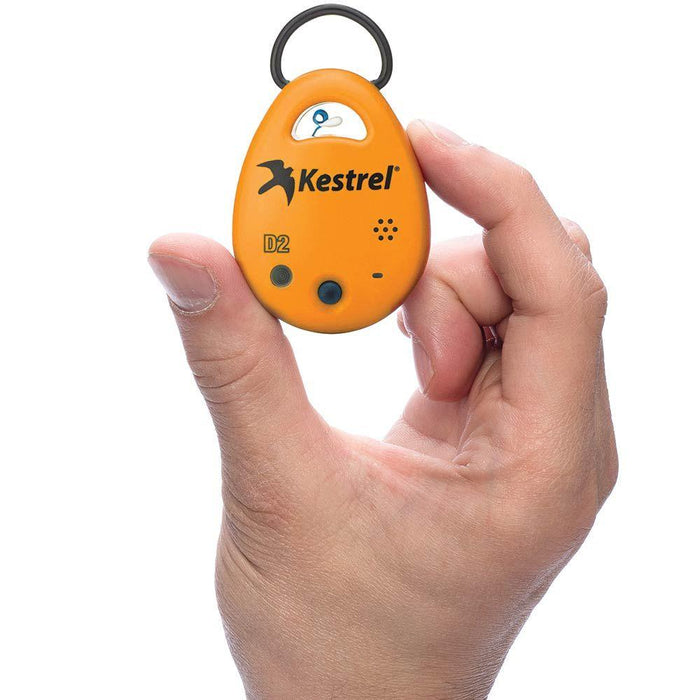

Each DROP measures just 1 x 1.8 x 2.4 inches (24 x 46 mm x 60 mm) and weighs just 1.2 ounces (34 grams). DROP loggers meet military and international standards for water, dust and shock resistance (IP-67 and MIL-STD-810G) and are conveniently equipped with a sturdy d-ring for hanging wherever needed.
Free Kestrel LiNK App:

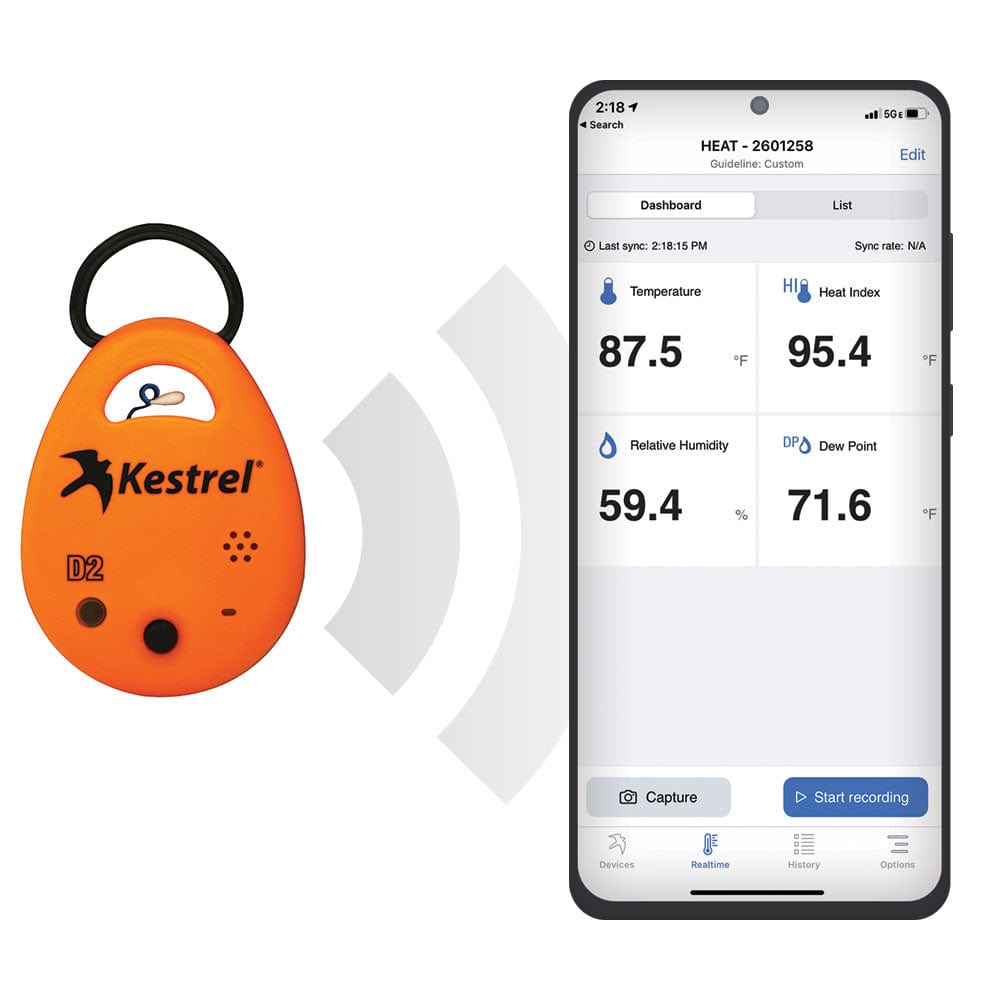

Download the free Kestrel LiNK to your smartphone. With Kestrel LiNK on your smart phone or tablet, you can view real-time readings from any DROP logger within wireless range (up to 100’ or more line of sight) via Bluetooth Low Energy. Each phone or tablet can connect to up to 8 DROP loggers at the same time and store data logs from many more. Min/Max/Average readings are clearly displayed and the data log is viewable as a scrolling graph with detailed data for each logged point. The Kestrel LiNK app also allows adjustment of the logging interval and other settings as well as real-time threshold alerts. Readings can be updated as frequently as every 2 seconds and logging time and date are automatically updated whenever connected to your smart device. You can also send and share real-time and logged environmental data via email, Facebook or Twitter.
DROP D1-D3 Data Points
DROP D1: Data Points: 13064
- Logging every 2 seconds - Fills up after 7.5 hours
- Logging every 10 minutes - Fills up after 90.7 days
- Logging every 2 hours - Fills up after 544 days
DROP D2: Data Points: 8165
- Logging every 2 seconds - Fills up after 4.5 hours
- Logging every 10 minutes - Fills up after 56.7 days
- Logging every 2 hours - Fills up after 340 days.
DROP D3: Data Points: 6220
- Logging every 2 seconds: Fills up after 3.4 hours
- Logging every 10 minutes - Fills up after 43.2 days
- Logging every 2 hours - Fills up after 259 days
Battery Life:
- The battery life will vary based on usage.
- For baseline conditions and settings*, the battery will last approximately 6 months. *Temp = 75°F, Logging Rate = 10 Minutes, Update Rate = 30 seconds.
- Battery life will be reduced by:
- Colder conditions
- More frequent logging or update rates
- Downloads of large data logs (or firmware updates) are best completed with a fresh battery and in temperatures above 10°C / 50°F.
Requirements:
- iOS 6 installed iPhone 4s, iPad 3rd generation or iPod Touch 5th generation – or any later iOS or hardware configuration. Will not work on iPhone 4, 3GS on 3G or any earlier iPad or iPod generation.
- Android 4.3 and higher. Works with most Android devices with Bluetooth Smart®, including Samsung Galaxy, Nexus 4, Motorola Droid and other recent generation phones and tablets.
Measures
- Dew Point
- Heat Stress Index
- Relative Humidity
- Temperature

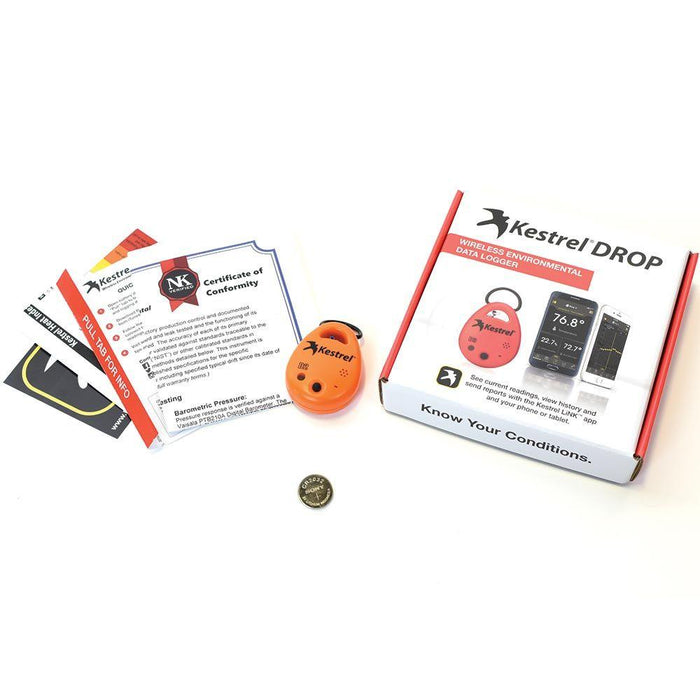

Includes:
- One coin-cell battery
- Kestrel Heat Index Reference Guide
- Kestrel DROP Certificate of Conformity
Model & SKUs:
- Kestrel DROP D2 - Part # 0720ORA
Features
- Bluetooth Smart (Wireless Technology)
- Data Logger
- Drop-Tested, MIL-STD-810G
- IP67 Waterproof
- Lightweight & Durable
Who's Using the Kestrel DROP D2HS Heat Stress Monitor
- Education & Classroom Use
- Facilities Management
- Farming & Agriculture
- Firefighting
- Hazardous Materials Response
- Hunting
- Individual At-Home Use
- Military
- Outdoor Event Organizers
- Precision & Competitive Shooting
- Research & Technology
American-Made Quality and a Five-Year Warranty
Every Kestrel environmental instrument is designed and built entirely in the USA. Kestrel’s history and focus on quality and ruggedness is reflected in the DROP’s industry-leading five-year warranty. Kestrel has been building rugged environmental instruments that help people do their jobs more safely and efficiently for more than fifteen years and has built a reputation for reliability one meter at a time.
