Kestrel DROP D1 Bluetooth Data Logger - Temperature
Features
Kestrel D1 - D3 Sensor Specifications
| SENSORS | ||||
|---|---|---|---|---|
| SENSORS | ACCURACY (+/-) | RESOLUTION | SPECIFICATION RANGE | NOTES |
| AmbientTemperature | 0.9 °F 0.5 °C |
0.1 °F 0.1 °C | 14 to 131°F -10 to 55 °C |
Airflow of 2.2 mph|1 m/s or greater provides fastest response and reduction of insolation effect. For greatest accuracy, avoid direct sunlight on the temperature sensor and prolonged sunlight exposure to the unit in low airflow conditions. Calibration drift is negligible for the life of the product. For further details, see Battery Operational Temperature Limits. |
| Relative Humidity | 2%RH | 0.1 %RH | 10 to 90% 25°C noncondensing | To achieve stated accuracy, unit must be permitted to equilibrate to external temperature when exposed to large, rapid temperature changes and be kept out of direct sunlight. Calibration drift is typically less than ±0.25% per year. |
| Pressure | 1.5 hPa|mbar 0.044 inHg 0.022 PSI |
0.1 hPa|mbar 0.01 inHg 0.01 PSI |
25°C/77°F 700-1100 hPa|mbar 20.67-32.48 inHg 10.15-15.95 PSI |
Monolithic silicon piezo-resistive pressure sensor with second-order temperature correction. Between 1100–1600 mbar, unit will operate with reduced accuracy. Sensor may not operate above 1600 mbar and can be damaged above 6,000 mbar or below 10 mbar. Calibration drift is negligible for the life of the product. |
| CALCULATED MEASUREMENTS | |||
|---|---|---|---|
| MEASUREMENT | ACCURACY (+/-) | RESOLUTION | SENSORS EMPLOYED |
| Density Altitude | 226 ft 69 m |
1 ft 1 m | Temperature, Relative Humidity Pressure |
| Dew Point | 3.4 °F 1.9 °C 15- 95% RH. Refer to Range for Temperature Sensor |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| Heat Index | 7.1°F 4.0°C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| THI (NRC) | 1.5 °F 0.8 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| THI (Yousef) | 2.3 °F 1.3 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity |
| Wet Bulb Temperature - Psychrometric | 3.2 °F 1.8 °C |
0.1 °F 0.1 °C |
Temperature, Relative Humidity Pressure |
| ADDITIONAL PRODUCT INFO | |
|---|---|
| Response Time & Display Update | Display updates every 1 second. After exposure to large environmental changes, all sensors require an equilibration period to reach stated accuracy. Measurements employing RH may require longer periods particularly after prolonged exposure to very high or very low humidity. WBGT requires about 8 minutes to reach 95% accuracy and about 15 minutes to reach 99% accuracy after exposure to large environmental changes. |
| Data Storage | Logged history stored for every measured value. Auto-store interval settable from 2 seconds to 12 hours*, overwrite on or off. D1: >13,000 data points, D2: >7,000 data points, D3: >6,000 data points. |
| Bluetooth® Data Connect Option | Wireless range up to 100ft|30m. Compatible with Kestrel LiNK app for iOS (model 4s and later) and select Android products (Android 4.3 and higher) (See website for complete list of compatible 3rd party apps). |
| Certifications | CE certified, RoHS, FCC, IC tested and WEEE compliant. Individually tested to NIST-traceable standards. |
| Origin | Designed and manufactured in the USA from US and imported components. Complies with Regional Value Content and Tariff Code Transformation requirements for NAFTA Preference Criterion B. |

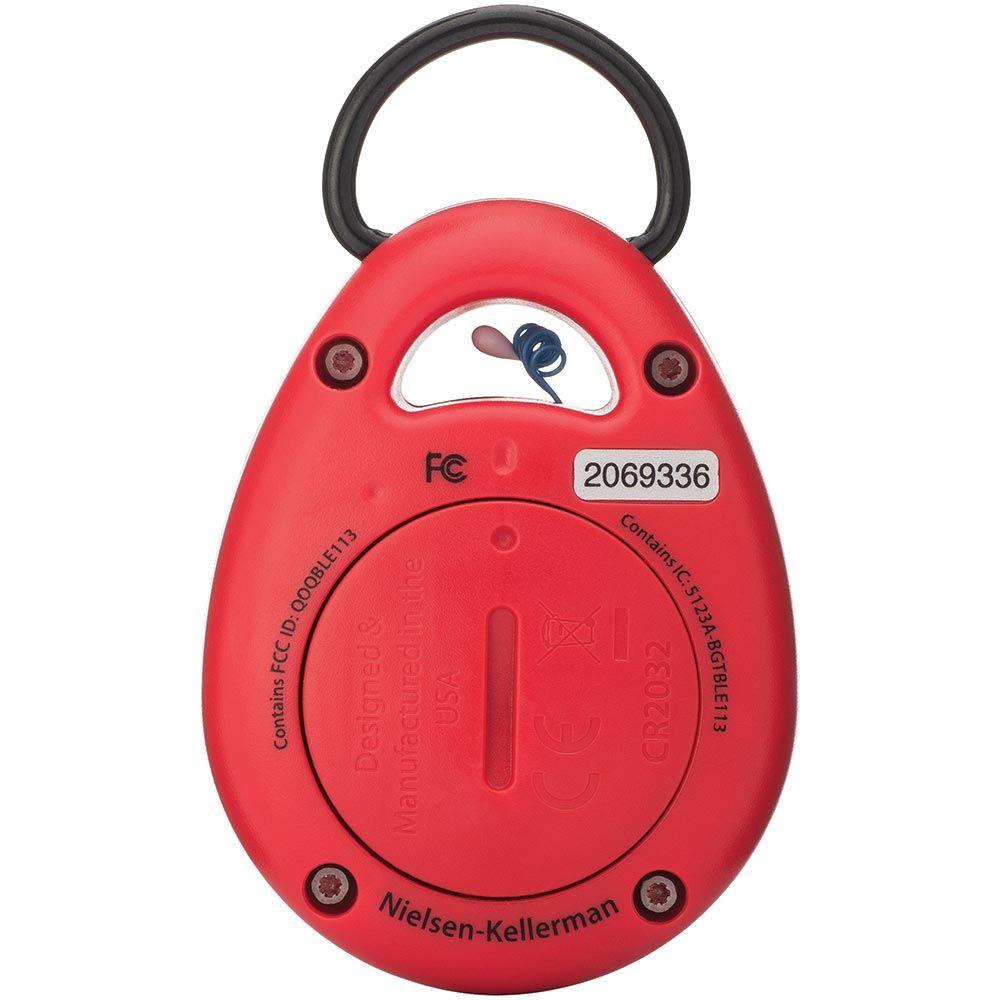

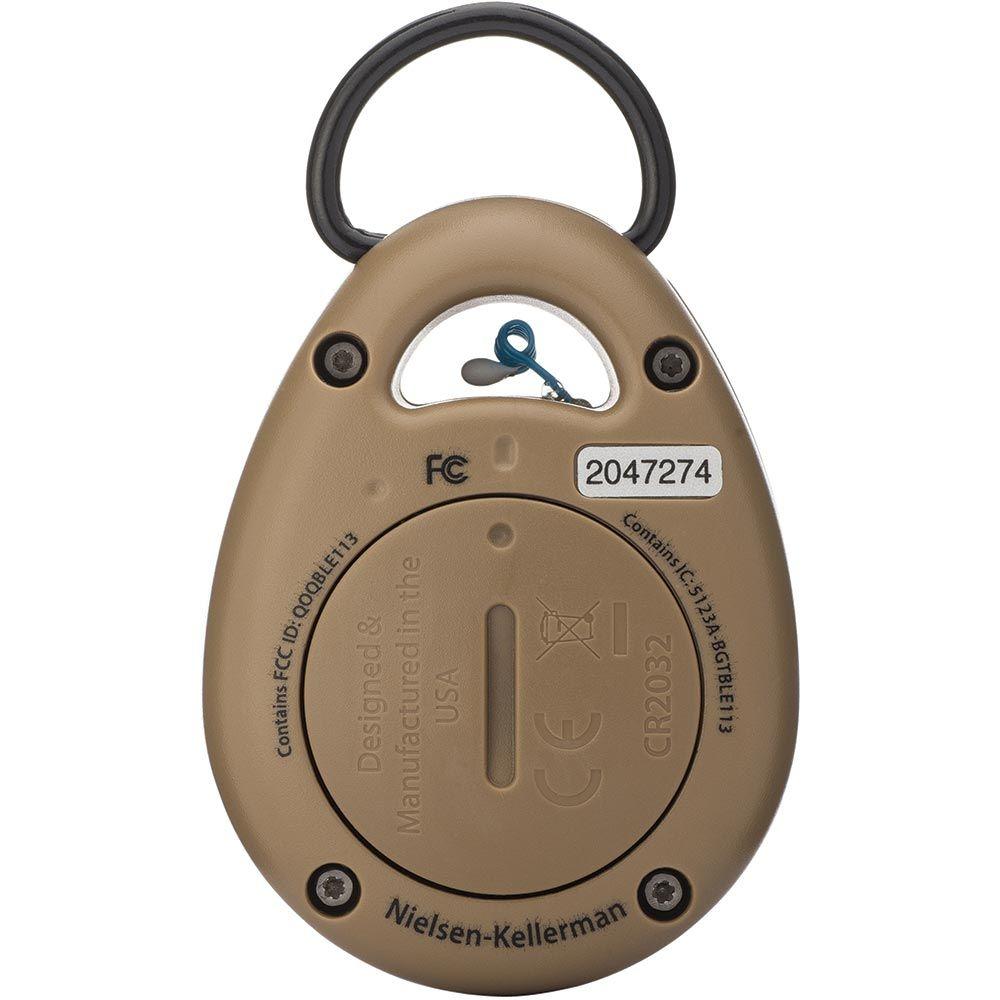

| Battery | User-replaceable CR2032 (included). |
| Shock Resistance | MIL-STD-810g, Transit Shock, Method 516.6 Procedure IV; unit only; impact may damage replaceable impeller. |
| Sealing | Waterproof (IP67 and NEMA-6) |
| Battery Operational Temperature Limits | 0° F to 140 ° F | -18 °C to 60°C Measurements may be taken beyond the limits of the operational temperature range of batteries by maintaining the unit within the operational range and then exposing it to the more extreme environment for the minimum time necessary to take reading. |
| Storage Temperature | -22.0 °F to 140.0 °F | -30.0 °C to 60.0 °C. |
| Size & Weight | 2.4 x 1.8 x 0.9 in | 6 x 4.5 x 2.3 cm 1.2oz | 34g (Lithium battery included) |

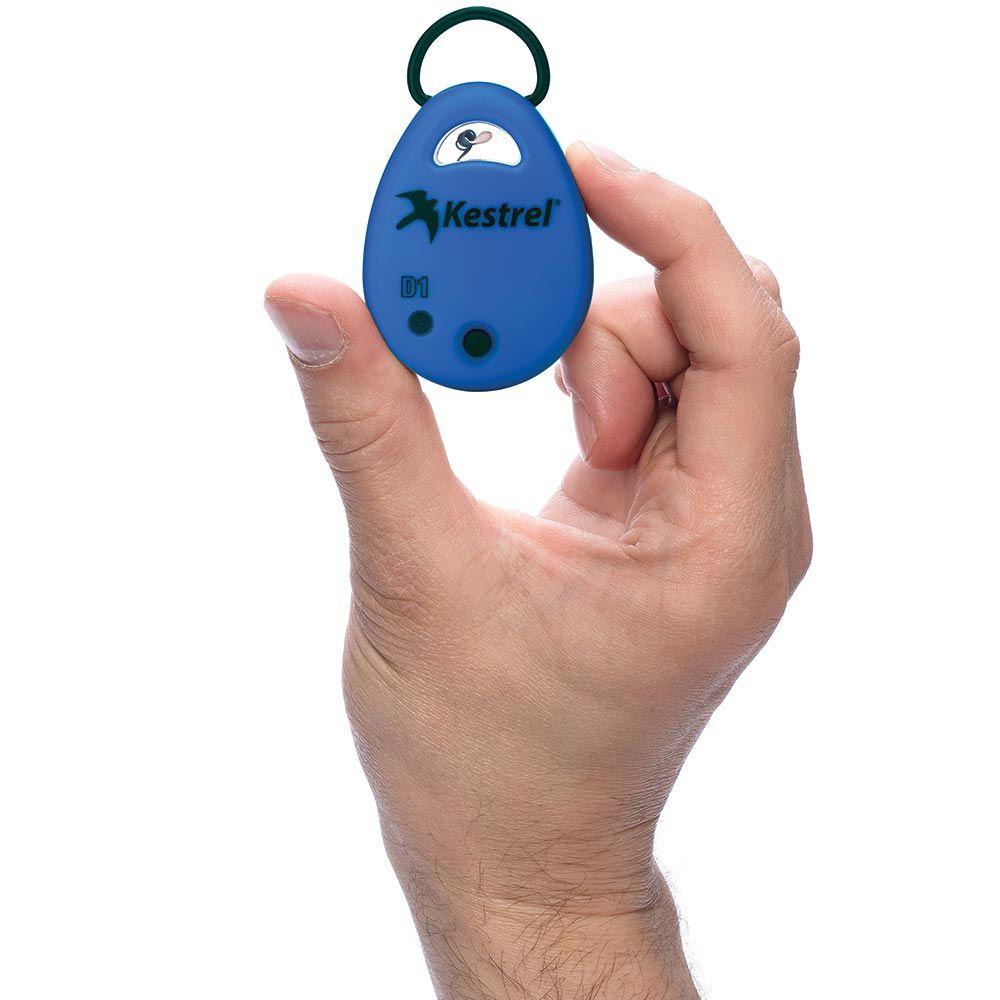

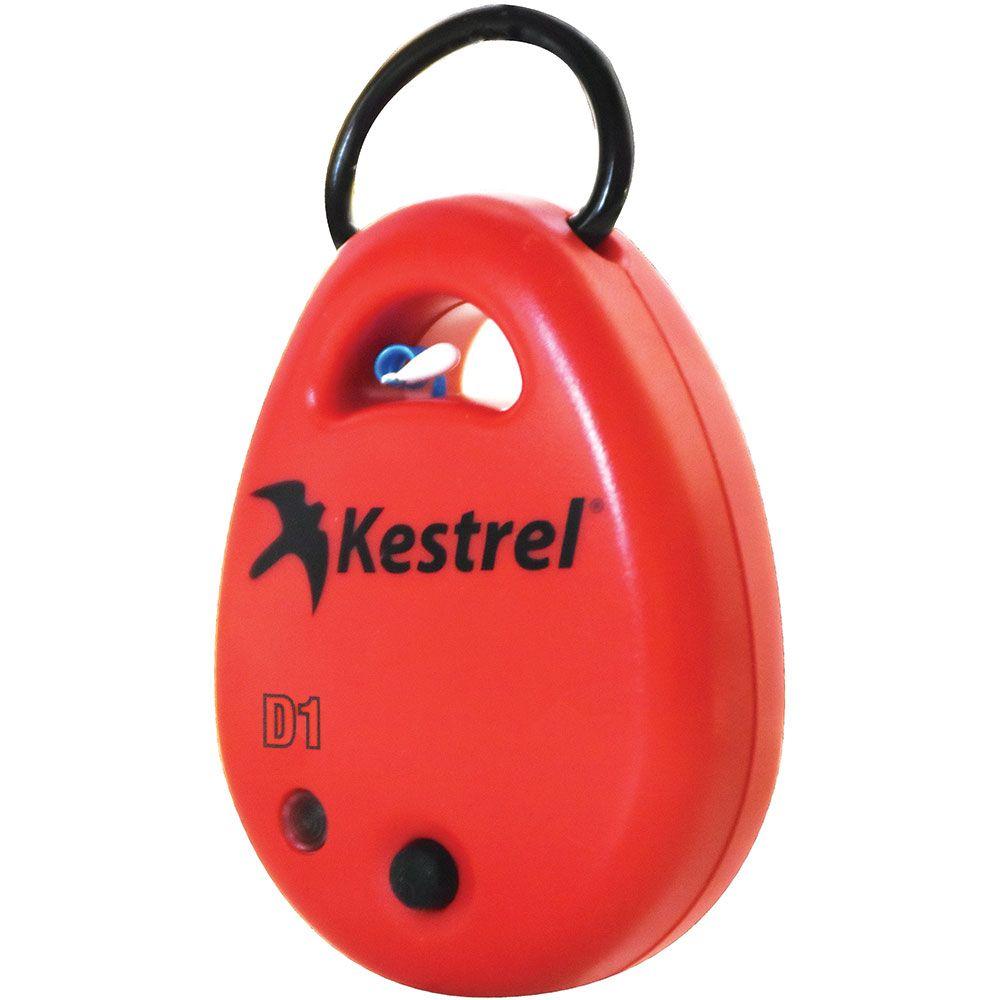

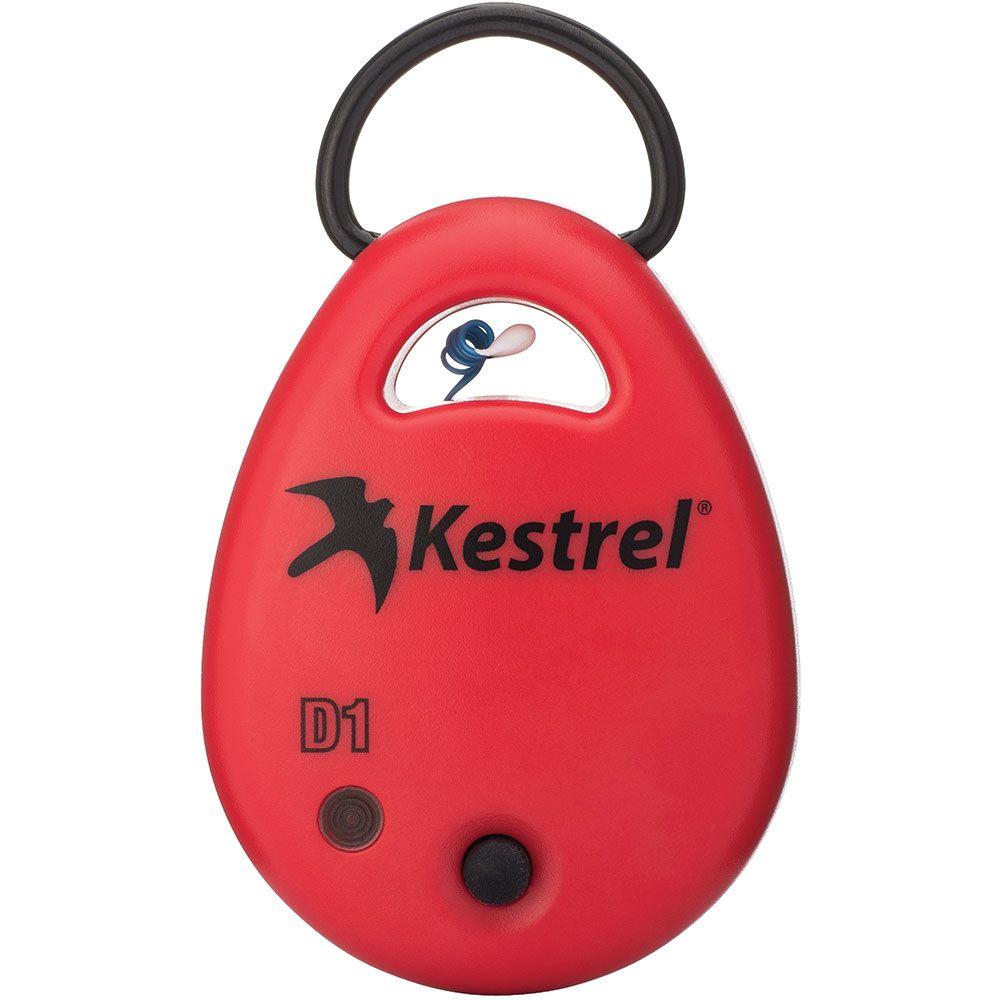

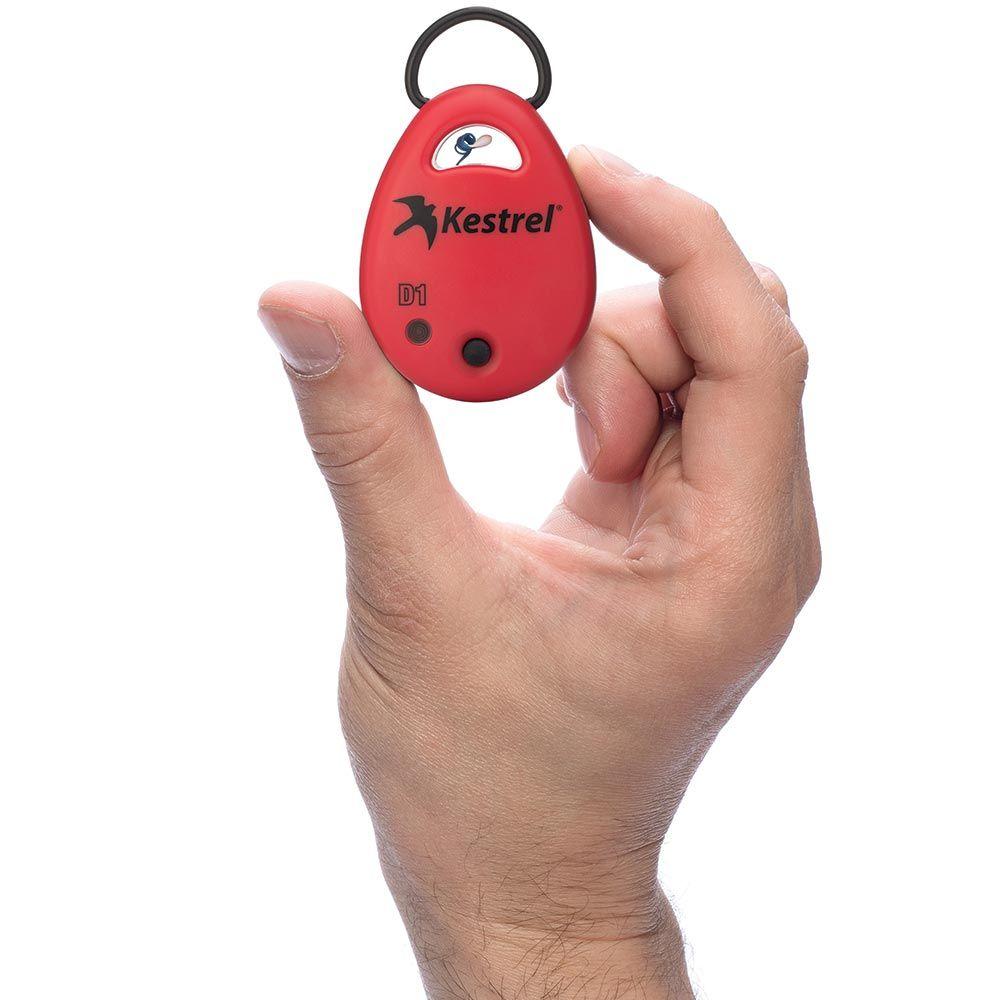

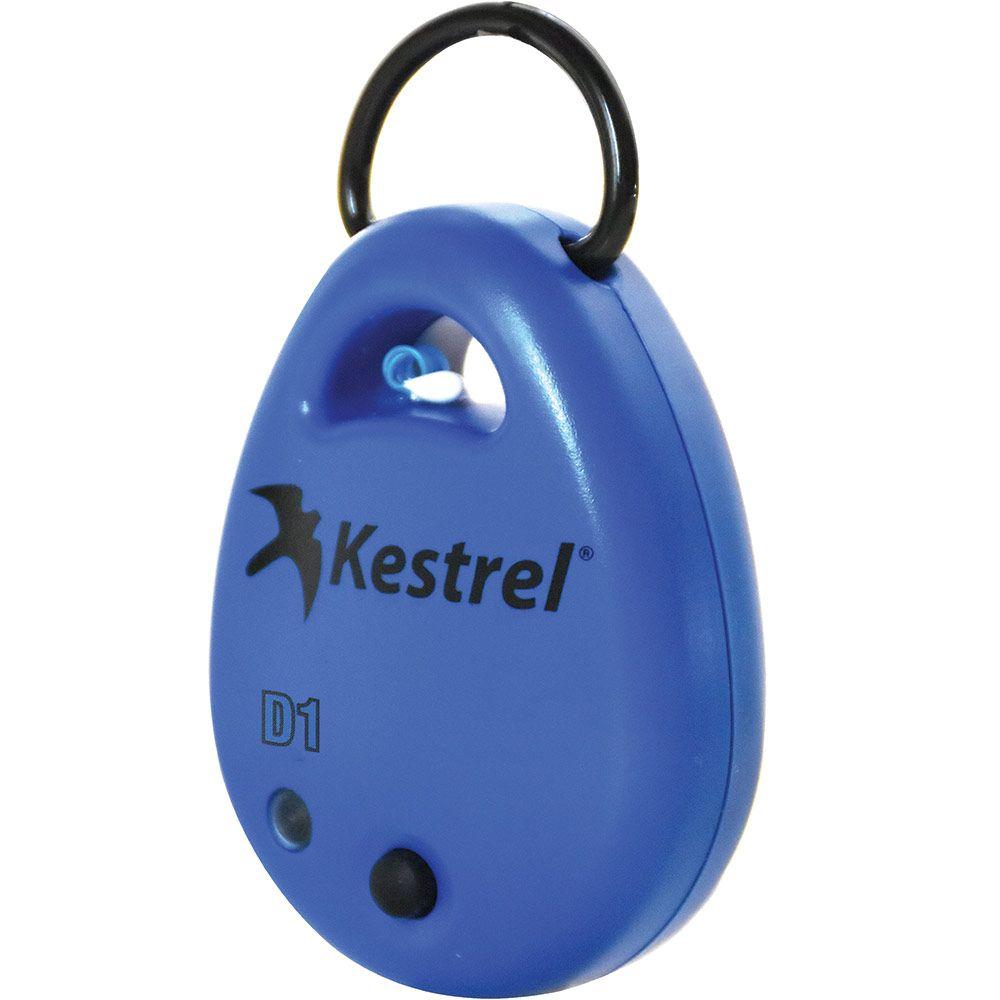

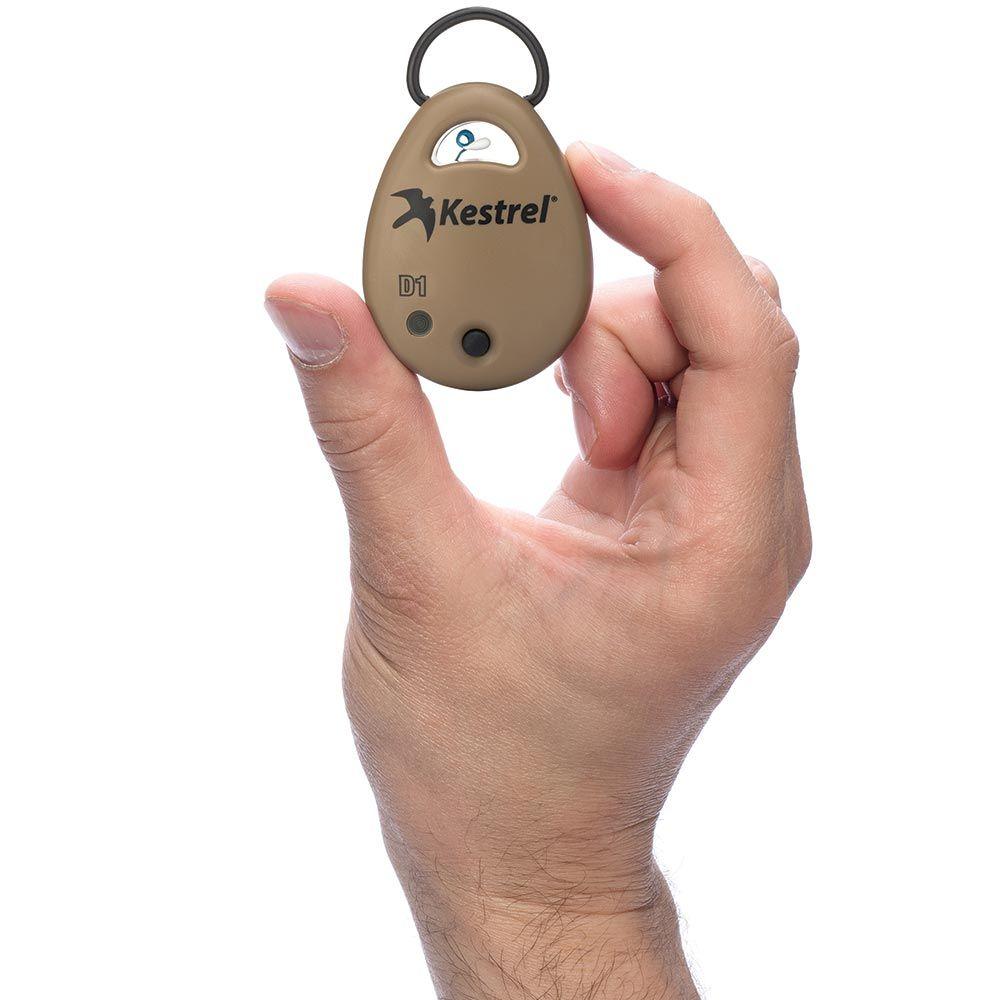

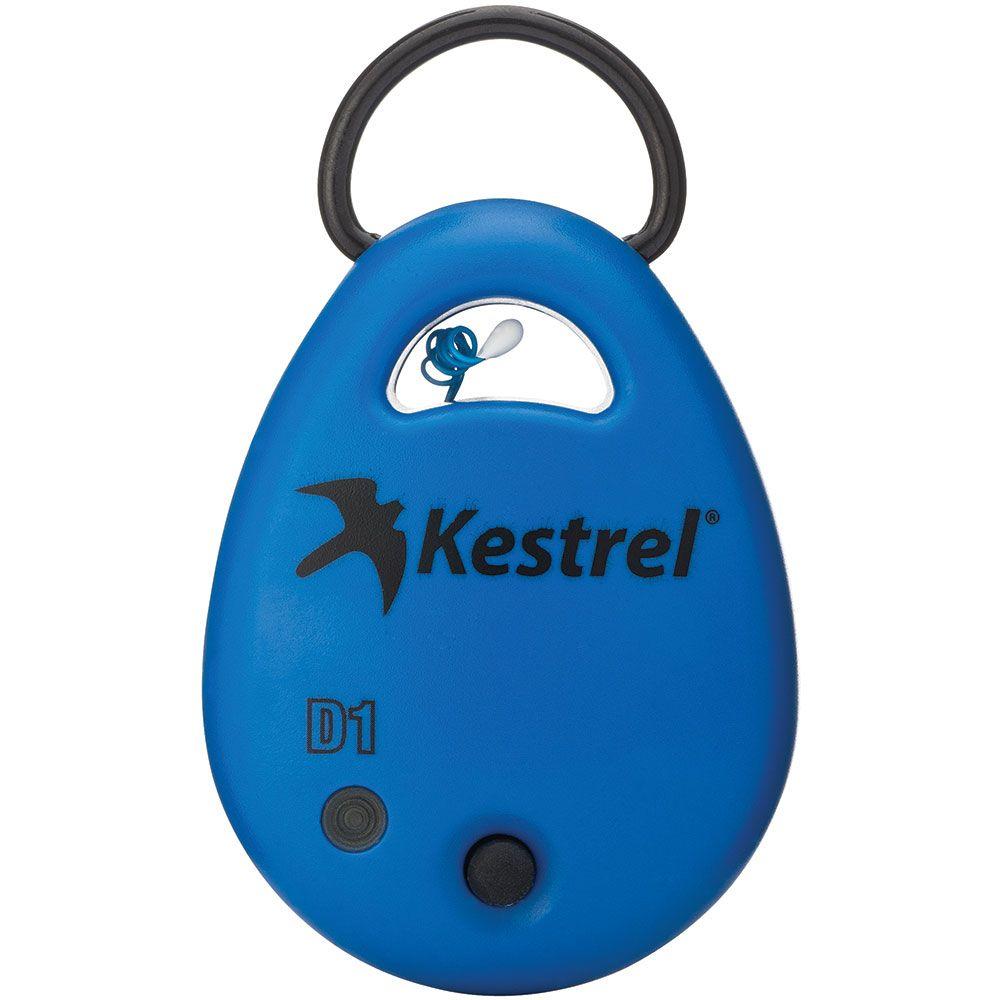

A Kestrel DROP is the world’s easiest-to-use rugged environmental data logger.

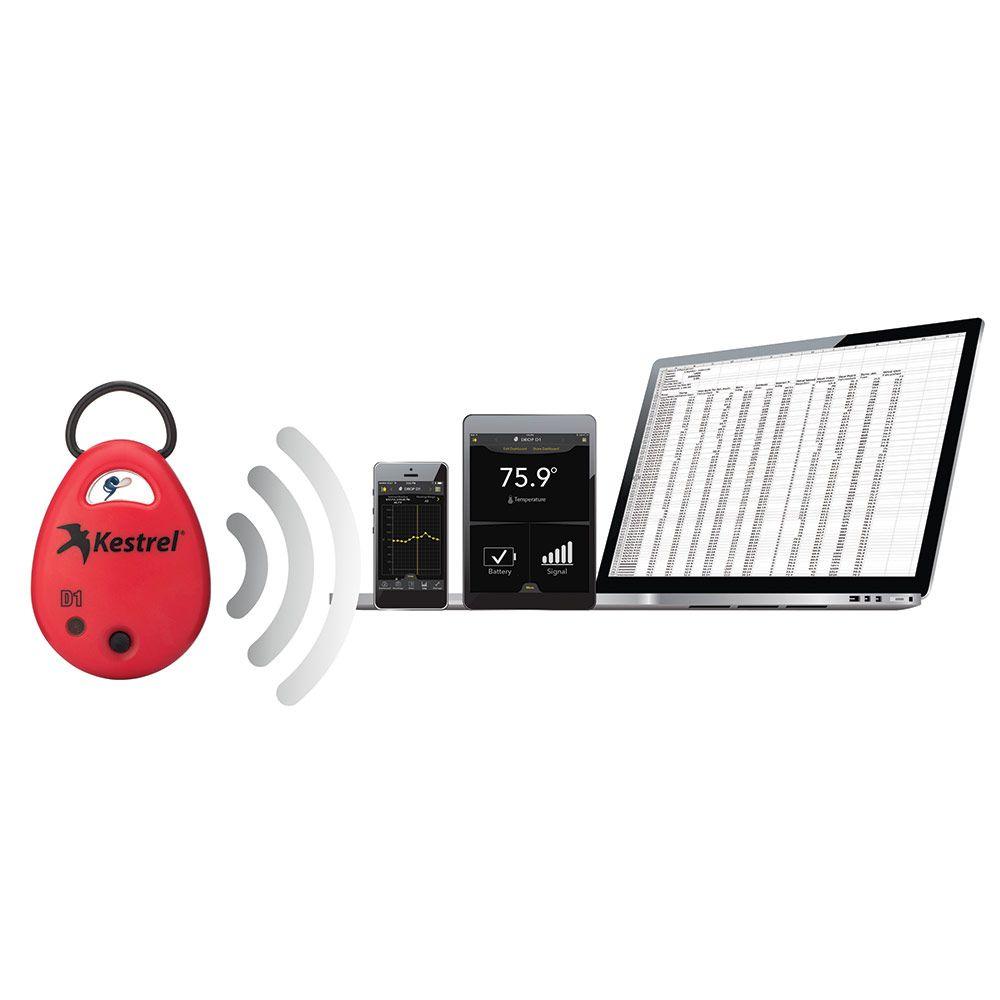

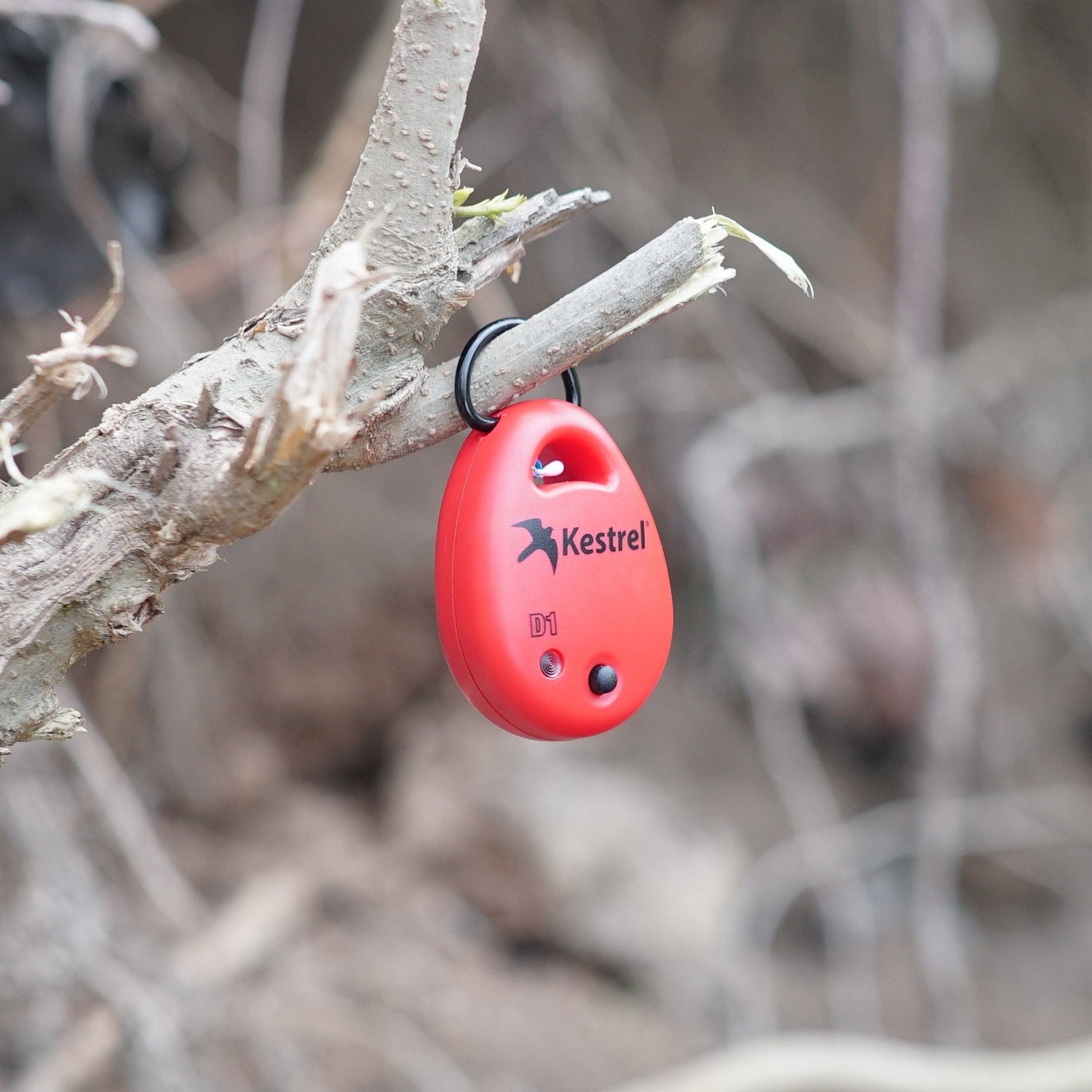

Monitor and record the conditions of any environment and easily access and chart real-time and historical data on your phone or tablet. A Kestrel DROP D1 logger can be placed wherever needed to log temperature with the data logs retrieved wirelessly and automatically to the Kestrel Connect app when within range(up to 100ft.). Kestrel DROP data loggers are designed to be used anywhere you need to track environmental conditions. DROP loggers meet military and international standards for water, dust and shock resistance (IP-67-30 minute submersion at 1m and MIL-STD-810G drop tested) and are equipped with a sturdy D-ring for hanging wherever needed.
Measures & Records:
- Temperature
All you need is a DROP and a Smartphone with the free Kestrel LiNK app!

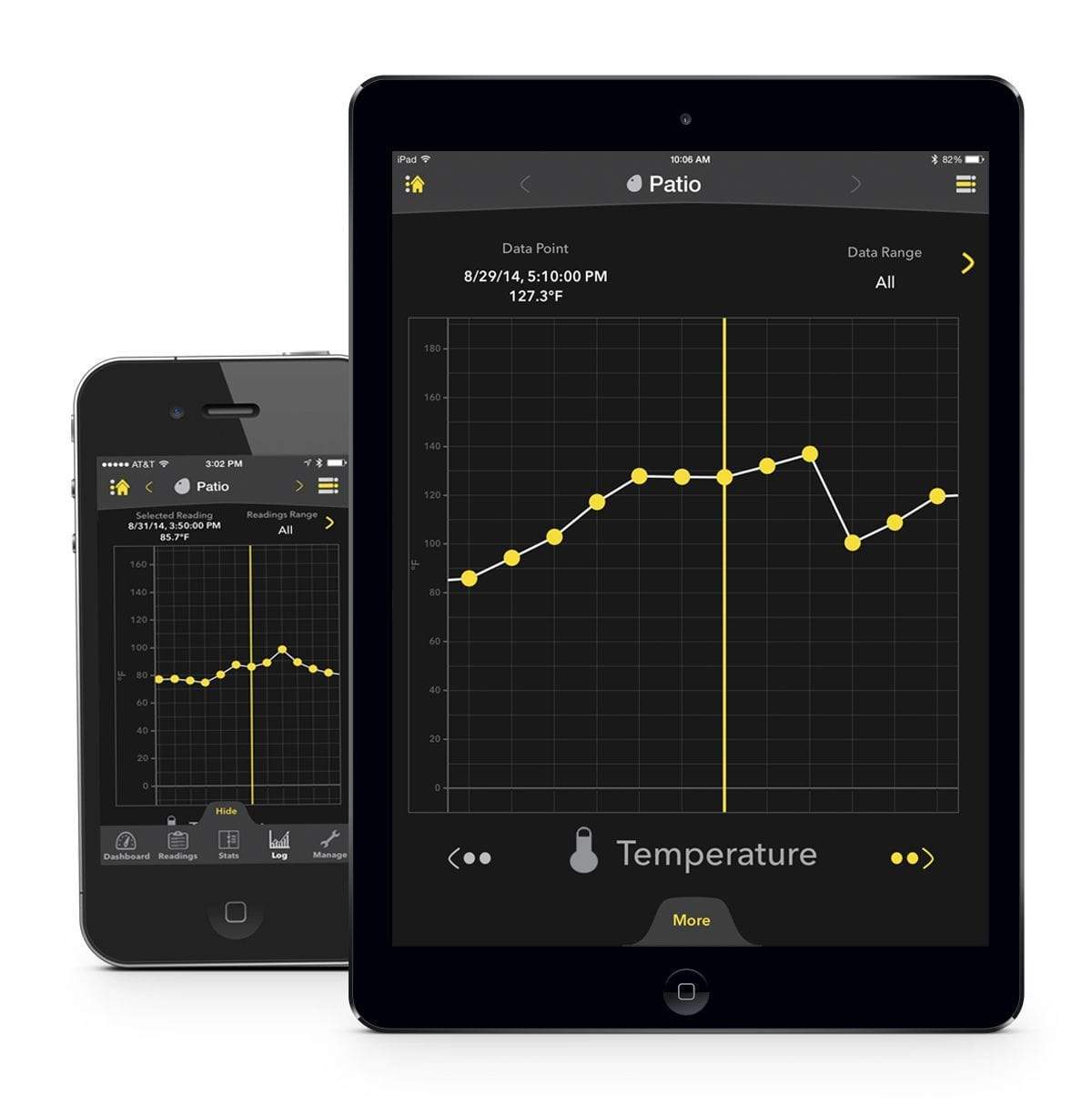

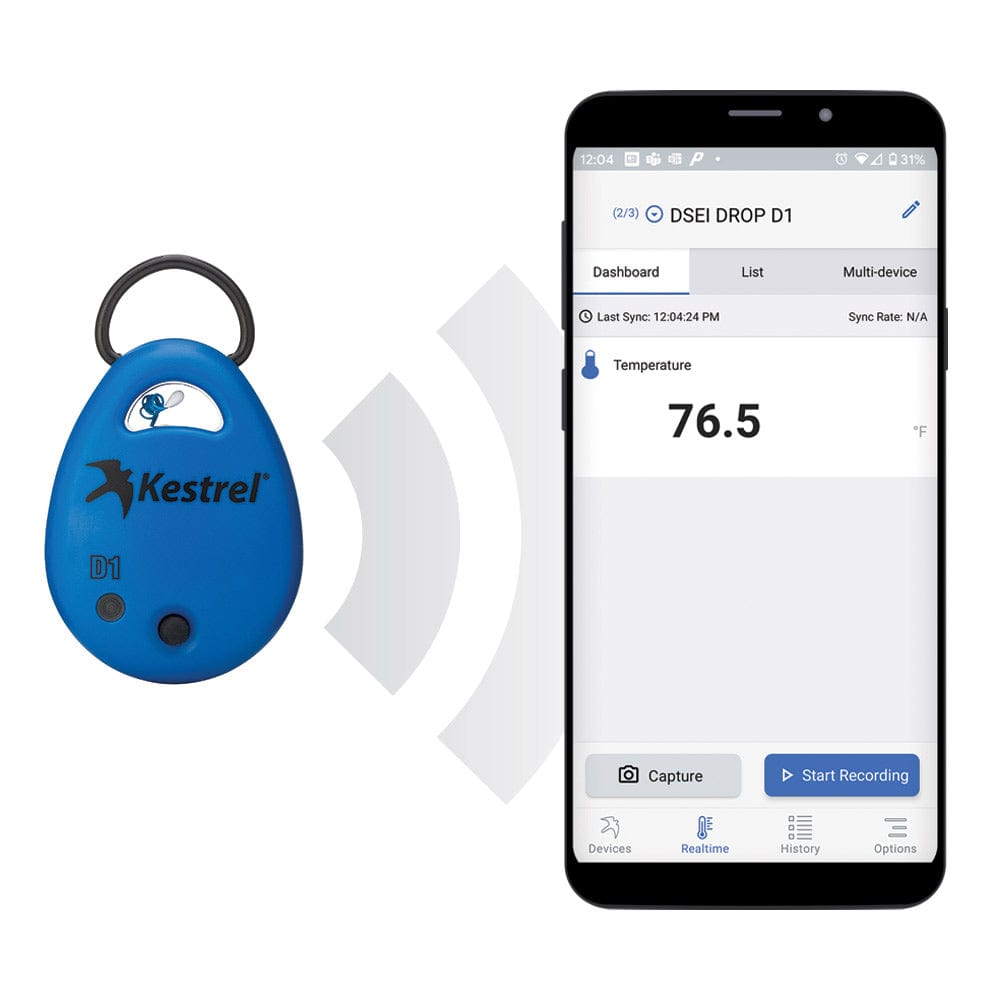

Kestrel LiNK is the free app that powers the DROP loggers. With Kestrel Connect, you can view real-time readings from any DROP logger within wireless range (100’ or more line of sight) via Bluetooth® low energy Each phone or tablet can connect to up to 8 DROP loggers at the same time and store data logs from many more. Min/Max/Average readings are clearly displayed and the log is viewable as a scrolling graph with detailed data for each logged point. The app also allows adjustment of the logging interval and other settings as well as real-time threshold alerts. Readings can be updated as frequently as every 2 seconds and logging time and date are automatically updated whenever connected to your smart device. Send and share real-time and logged environmental data via email, Facebook or Twitter.
DROP D1-D3 Data Points
DROP D1: Data Points: 13064
- Logging every 2 seconds - Fills up after 7.5 hours
- Logging every 10 minutes - Fills up after 90.7 days
- Logging every 2 hours - Fills up after 544 days
DROP D2: Data Points: 8165
- Logging every 2 seconds - Fills up after 4.5 hours
- Logging every 10 minutes - Fills up after 56.7 days
- Logging every 2 hours - Fills up after 340 days.
DROP D3: Data Points: 6220
- Logging every 2 seconds: Fills up after 3.4 hours
- Logging every 10 minutes - Fills up after 43.2 days
- Logging every 2 hours - Fills up after 259 days
Battery Life:
- The battery life will vary based on usage.
- For baseline conditions and settings*, the battery will last approximately 6 months. *Temp = 75°F, Logging Rate = 10 Minutes, Update Rate = 30 seconds.
- Battery life will be reduced by:
- Colder conditions
- More frequent logging or update rates
- Downloads of large data logs (or firmware updates) are best completed with a fresh battery and in temperatures above 10°C / 50°F.
Minimum Requirements:
- iOS 6 installed iPhone 4s, iPad 3rd generation, iPod Touch 5th generation and above.
- Android 4.2 and higher. Works with most Android devices with Bluetooth® low energy, including Samsung Galaxy, Nexus 4, Motorola Droid, and other recent generation phones and tablets.
QUESTIONS & ANSWERS
Ask a Question-
I need a product that will stay in solution of 90% water and 10% alcohol, and will be used to measure the temperature curve of a product in tank trucks. Which product you have to offer with connection wireless or Bluetooth.
Chemical immersion is not advised for the DROPs, so I cannot guarantee they would work in that situation. The alcohol could have some damaging effects to the unit but this specific case has not been tested. For the other question, it uses Bluetooth.
-
what's the temperature range
Hi, the temperature range is 14 to 131°F -10 to 55 °C.
